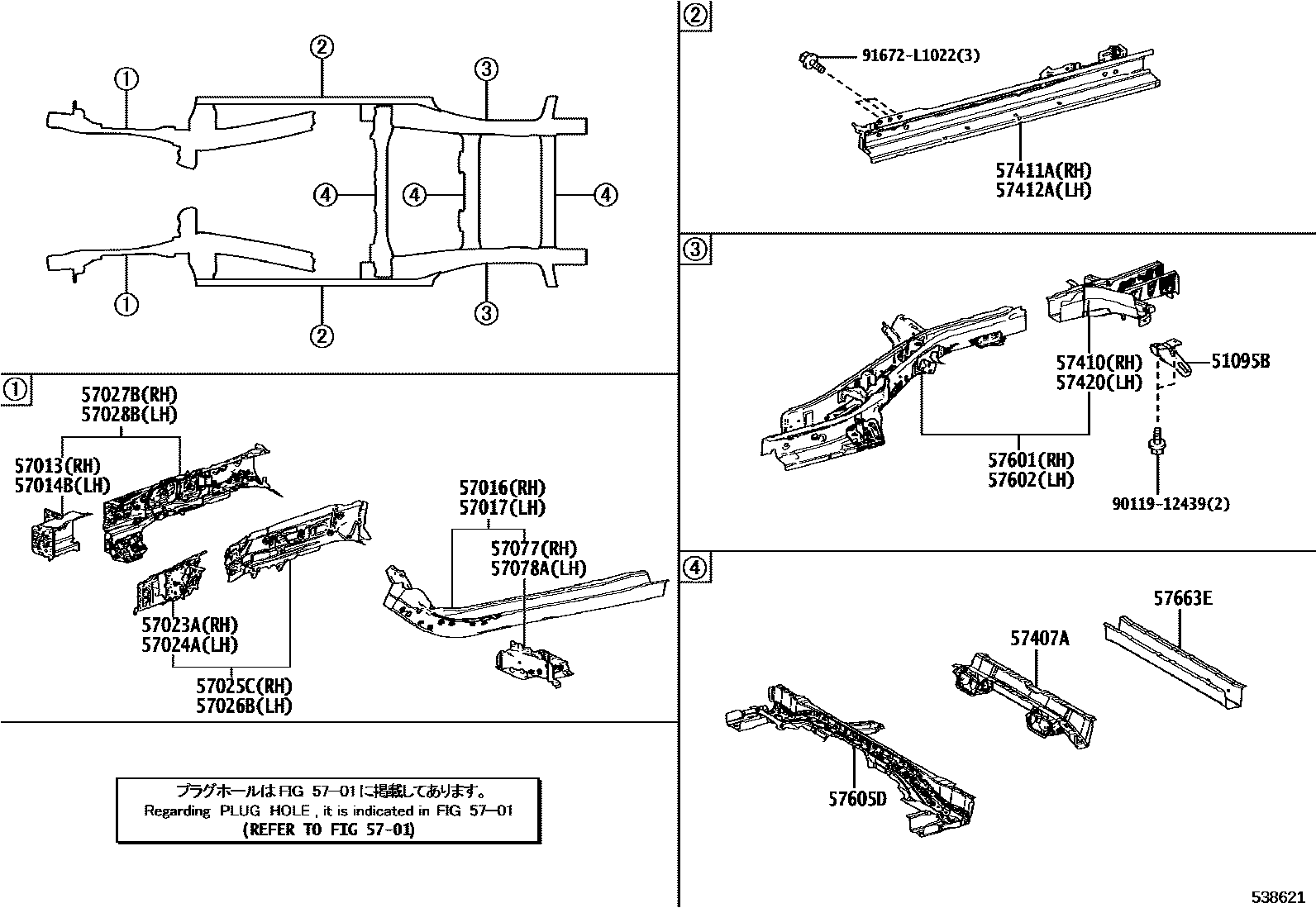

FLOOR SIDE MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
5701
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57023AMEMBER SUB-ASSY, REAR SIDE, RH
57024AMEMBER SUB-ASSY, REAR SIDE, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57410MEMBER ASSY, FLOOR SIDE, RH
57411AMEMBER, FLOOR SIDE, INNER RH
STEP & STEP COVER-WITH(WELDNUT FOR SIDE STEP)
57412AMEMBER, FLOOR SIDE, INNER LH
STEP & STEP COVER-WITH(WELDNUT FOR SIDE STEP)
57420MEMBER ASSY, FLOOR SIDE, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
STEP & STEP COVER-WITH(WELDNUT FOR SIDE STEP)
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
STEP & STEP COVER-WITH(WELDNUT FOR SIDE STEP)
57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57663EMEMBER, REAR FLOOR CROSS, CENTER
9011912439
main90119-12439
91672L1022
main91672-L1022
25 parts on this diagram · 2 diagrams in section
