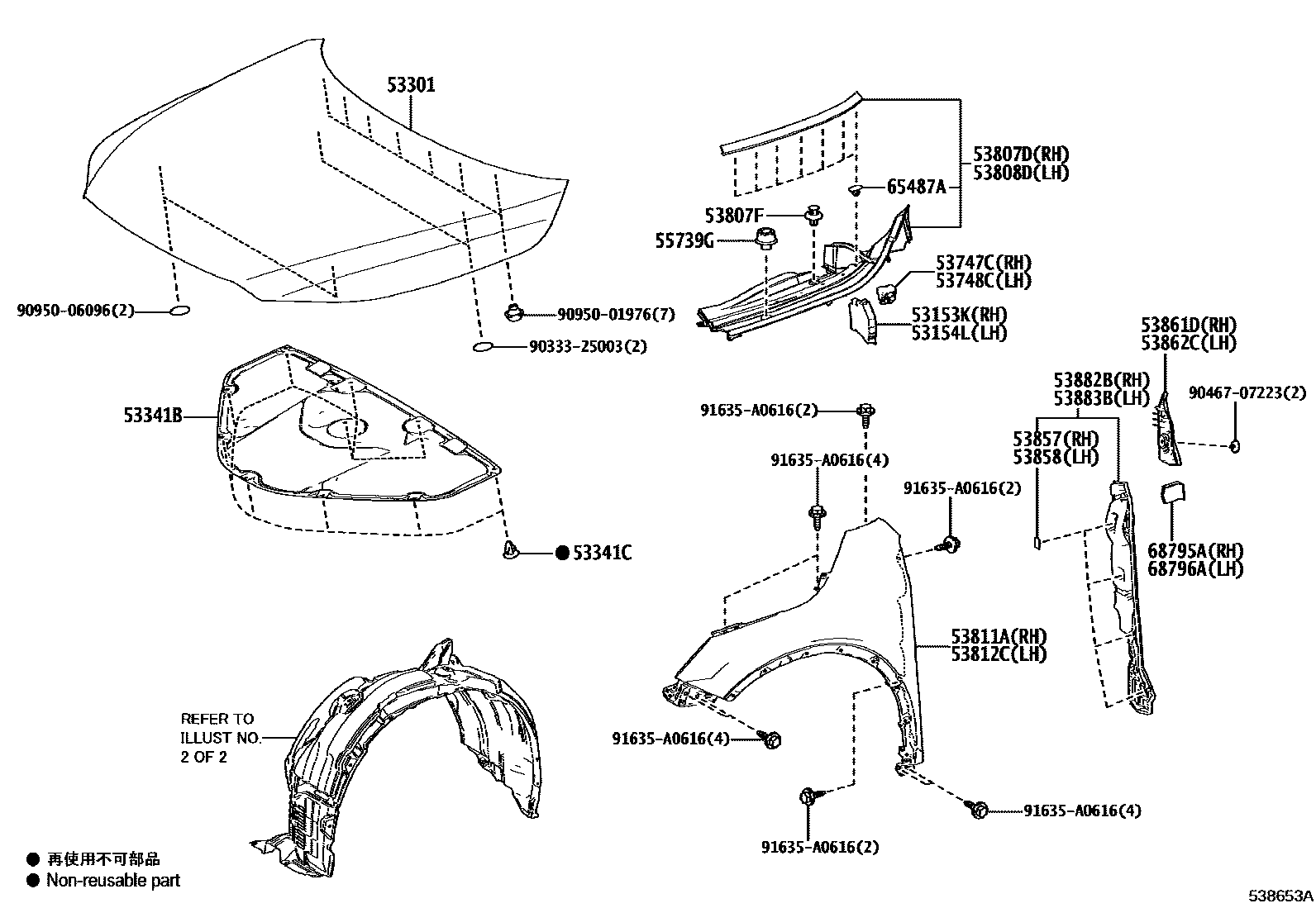

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53747CPLATE, AIR SEALED, RH
53748CPLATE, AIR SEALED, LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807FCLIP, FRONT FENDER REINFORCEMENT
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53861DSEAL, FRONT FENDER TO DOOR HINGE, UPPER RH
53862CSEAL, FRONT FENDER TO DOOR HINGE, UPPER LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
55739GSTOPPER, HOOD
65487ACLIP, CORNER PROTECTOR
68795ACOVER, DOOR HINGE, NO.1 RH
68796ACOVER, DOOR HINGE, NO.1 LH
9033325003
9046707223
9095001976
9095006096
91635A0616
27 parts on this diagram · 2 diagrams in section
