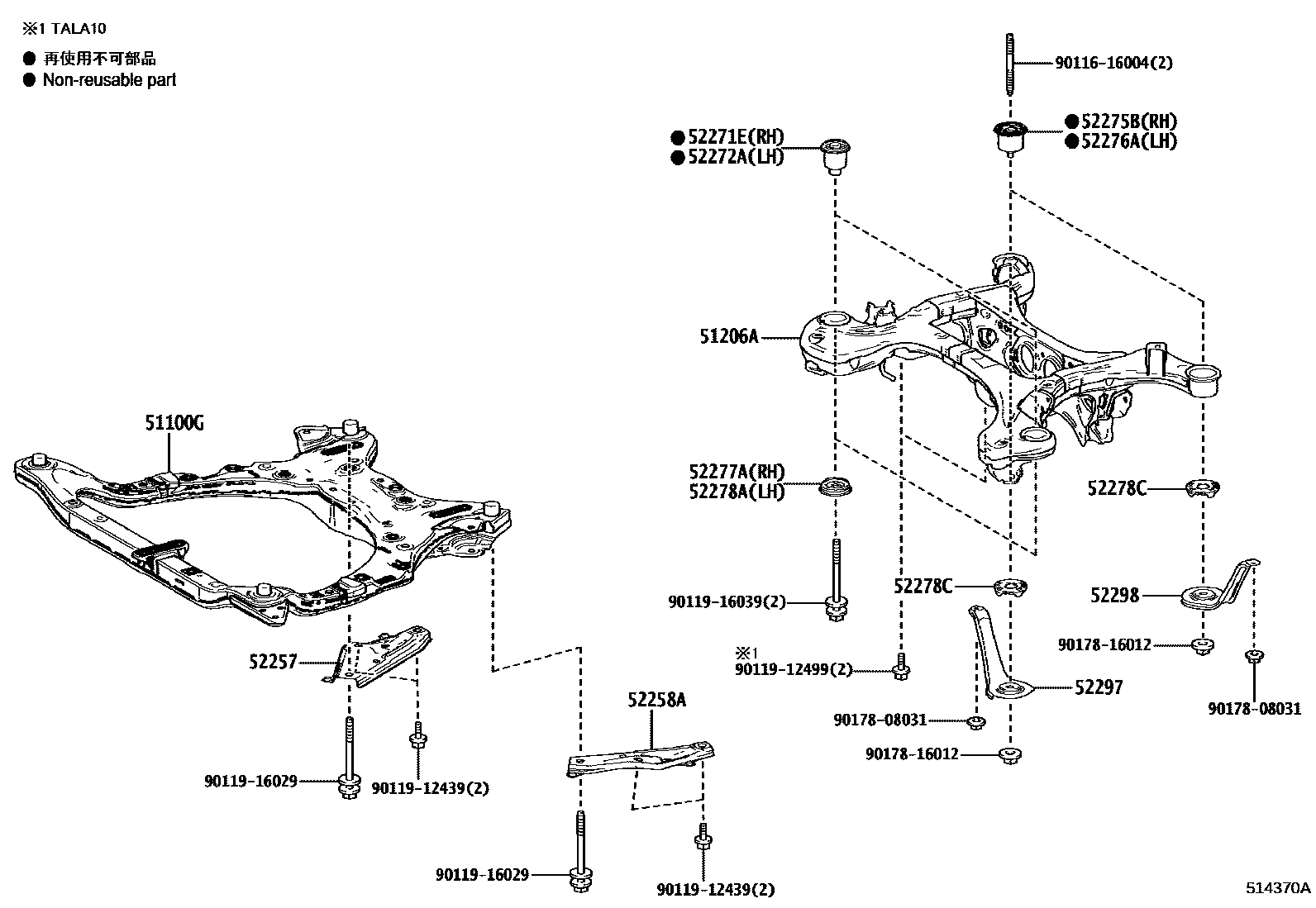

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-48120iAALH1#,SALA15,TALA1#,TALH17202211

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48110iSALA15,TALA1#202211

main51206-48150iAALH1#202211-202412

main51206-48151iAALH1#202501

main51206-48170iTALH17202211-202412

main51206-48171iTALH17202501

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAALH1#,SALA15,TALA1#,TALH17202211

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAALH1#,SALA15,TALA1#,TALH17202211

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-48040iTALH17202211

main52271-48050iAALH1#,SALA15,TALA1#202211

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-48040iTALH17202211

main52271-48050iAALH1#,SALA15,TALA1#202211

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-48030iAALH1#,SALA15,TALA1#,TALH17202211

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-48020iAALH1#,SALA15,TALA1#,TALH17202211

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-48030iTALH17202211

main52277-48040iAALH1#,SALA15,TALA1#202211

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-48030iTALH17202211

main52277-48040iAALH1#,SALA15,TALA1#202211

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-48020iAALH1#,SALA15,TALA1#,TALH17202211

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-48010iAALH1#,SALA15,TALA1#,TALH17202211

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-48010iAALH1#,SALA15,TALA1#,TALH17202211

9011616004

main90116-16004

9011912439

main90119-12439

9011912499

main90119-12499

9011916029

main90119-16029

9011916039

main90119-16039

9017808031

main90178-08031

9017816012

main90178-16012

20 parts on this diagram · 4 diagrams in section
