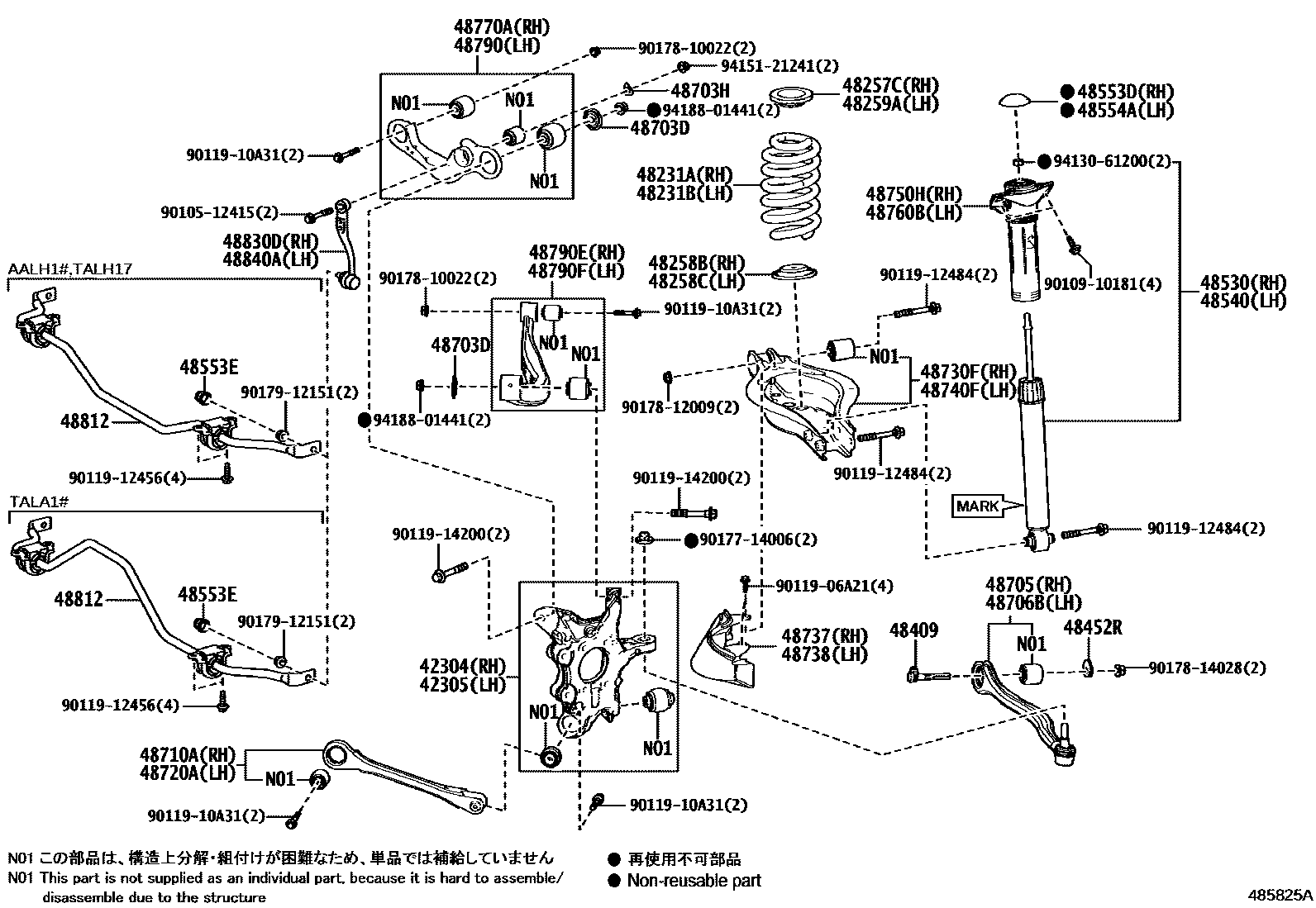

REAR SPRING & SHOCK ABSORBER

0001 1WITHOUT(AVS) 0002 1WITH(AVS)

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-48080iAALH1#,SALA15,TALA1#,TALH17202211

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-48080iAALH1#,SALA15,TALA1#,TALH17202211

48231ASPRING, COIL, REAR RH

main48231-48A10iTALA10202211-202409

main48231-48A20iTALA15..GCC202211-202409

main48231-48A30iTALA15..EUR,GEN202211-202409

main48231-48A40iAALH10202211-202409

main48231-48A50iAALH15..GCC202211-202409

main48231-48A60iAALH15..CHI,EUR,GEN202211-202409

main48231-48A70iTALH17..GCC202211-202409

main48231-48A80iAALH16,TALH17..CHI,EUR,GEN202211-202409

main48231-48B30iTALA10202410

main48231-48B40iTALA15..GCC202410

main48231-48B50iSALA15,TALA15..CHI,EUR,GEN202410

main48231-48B60iAALH10202410

main48231-48B70iAALH15..GCC202410

main48231-48B80iAALH15..CHI,EUR,GEN202410

main48231-48B90iTALH17..GCC202410

main48231-48C00iAALH16,TALH17..CHI,EUR,GEN202410

48231BSPRING, COIL, REAR LH

main48231-48A10iTALA10202211-202409

main48231-48A20iTALA15..GCC202211-202409

main48231-48A30iTALA15..EUR,GEN202211-202409

main48231-48A40iAALH10202211-202409

main48231-48A50iAALH15..GCC202211-202409

main48231-48A60iAALH15..CHI,EUR,GEN202211-202409

main48231-48A70iTALH17..GCC202211-202409

main48231-48A80iAALH16,TALH17..CHI,EUR,GEN202211-202409

main48231-48B30iTALA10202410

main48231-48B40iTALA15..GCC202410

main48231-48B50iSALA15,TALA15..CHI,EUR,GEN202410

main48231-48B60iAALH10202410

main48231-48B70iAALH15..GCC202410

main48231-48B80iAALH15..CHI,EUR,GEN202410

main48231-48B90iTALH17..GCC202410

main48231-48C00iAALH16,TALH17..CHI,EUR,GEN202410

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-48020iAALH1#,SALA15,TALA1#,TALH17202211

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-48040iAALH1#,SALA15,TALA1#,TALH17202211

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-48040iAALH1#,SALA15,TALA1#,TALH17202211

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-48020iAALH1#,SALA15,TALA1#,TALH17202211

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iAALH1#,SALA15,TALA1#202211

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-48020iAALH1#,SALA15,TALA1#202211

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80B18iAALH15,TALA15..GCC202211

MARK 48530-48520

main48530-80B18iTALA15..GCC202211

MARK 48530-48520,F SPORT

main48530-80B18iTALA15..GCC202211

MARK 48530-48520,LUXURY

main48530-8Z213iTALA10202211-202410

MARK 48530-48480

main48530-8Z214iTALA15..GCC202211-202410

MARK 48530-48490

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,BELARUS SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,KAZAKHSTAN SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,UKRAINE SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,AZERBAIJAN SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,GEORGIA SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,MONGOLIA SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,MOLDOVA SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,KYRGYZSTAN SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,ARMENIA SPEC

main48530-8Z216iAALH15..GCC202211-202410

MARK 48530-48510

main48530-8Z217iAALH15..CHI,EUR,GEN202211-202410

MARK 48530-48540

main48530-8Z218iAALH16202211-202410

MARK 48530-48550

main48530-8Z219iTALA15..EUR202211-202410

MARK 48530-48620

main48530-8Z220iTALA15..EUR,GEN202211

MARK 48530-48530

main48530-8Z220iTALH17..CHI,EUR,GEN202211

MARK 48530-48530,LUXURY

main48530-8Z220iTALH17..CHI,EUR,GEN202211

MARK 48530-48530,F SPORT

main48530-8Z304iTALA10202410

MARK 48530-48760

main48530-8Z305iTALA15..GCC202410

MARK 48530-48770

main48530-8Z306iAALH10,SALA15,TALA15..CHI,GEN202410

MARK 48530-48780

main48530-8Z307iAALH15..GCC202410

MARK 48530-48790

main48530-8Z308iAALH15..CHI,EUR,GEN202410

MARK 48530-48800

main48530-8Z309iAALH16202410

MARK 48530-48810

main48530-8Z311iTALA15..EUR202410-202509

MARK 48530-48830

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z213iTALA10202211-202410

MARK 48530-48480

main48530-8Z214iTALA15..GCC202211-202410

MARK 48530-48490

main48530-8Z215iAALH10,TALA15..CHI,GEN202211-202410

MARK 48530-48500,KYRGYZSTAN SPEC

main48530-8Z215iAALH10,TALA15..CHI,GEN202211-202410

MARK 48530-48500,ARMENIA SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,BELARUS SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,KAZAKHSTAN SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,UKRAINE SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,AZERBAIJAN SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,GEORGIA SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,MONGOLIA SPEC

main48530-8Z215iTALA15..EUR202211-202410

MARK 48530-48500,MOLDOVA SPEC

main48530-8Z216iAALH15..GCC202211-202410

MARK 48530-48510

main48530-8Z217iAALH15..CHI,EUR,GEN202211-202410

MARK 48530-48540

main48530-8Z218iAALH16202211-202410

MARK 48530-48550

main48530-8Z219iTALA15..EUR202211-202410

MARK 48530-48620

main48530-8Z304iTALA10202410

MARK 48530-48760

main48530-8Z305iTALA15..GCC202410

MARK 48530-48770

main48530-8Z306iAALH10,SALA15,TALA15..CHI,GEN202410

MARK 48530-48780

main48530-8Z307iAALH15..GCC202410

MARK 48530-48790

main48530-8Z308iAALH15..CHI,EUR,GEN202410

MARK 48530-48800

main48530-8Z309iAALH16202410

MARK 48530-48810

main48530-8Z311iTALA15..EUR202410-202509

MARK 48530-48830

main48540-80594iTALH17..GCC202211

MARK 48540-48520,LUXURY

main48540-80594iTALH17..GCC202211

MARK 48540-48520,F SPORT

main48540-80594iAALH15,TALA15..GCC202211

MARK 48540-48520

main48540-80595iTALA15..EUR,GEN202211

MARK 48540-48530

main48540-80595iTALH17..CHI,EUR,GEN202211

MARK 48540-48530,LUXURY

main48540-80595iTALH17..CHI,EUR,GEN202211

MARK 48540-48530,F SPORT

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iAALH1#,SALA15,TALA1#,TALH17202211

48553ECAP

main48553-52030iAALH1#,SALA15,TALA1#,TALH17202211

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iAALH1#,SALA15,TALA1#,TALH17202211

48703DWASHER(FOR REAR SUSPENSION ARM)

main48715-48010iAALH1#,SALA15,TALA1#,TALH17202211

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main48715-48020iAALH1#,SALA15,TALA1#,TALH17202211

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-48010iAALH1#,SALA15,TALA1#202211

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-48010iAALH1#,SALA15,TALA1#202211

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-48100iAALH1#,SALA15,TALA1#,TALH17202211

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-48020iAALH1#,SALA15,TALA1#,TALH17202211

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-48190iAALH1#,SALA15,TALA1#,TALH17202211

48737COVER, REAR SUSPENSION ARM, RH

main48737-48030iAALH1#,SALA15,TALA1#,TALH17202211

48738COVER, REAR SUSPENSION ARM, LH

main48738-48030iAALH1#,SALA15,TALA1#,TALH17202211

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-48050iAALH1#,SALA15,TALA1#,TALH17202211

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-48080iAALH1#,SALA15,TALA1#,TALH17202211

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-48080iAALH1#,SALA15,TALA1#,TALH17202211

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-48030iAALH1#,SALA15,TALA1#,TALH17202211

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-48030iAALH1#,SALA15,TALA1#,TALH17202211

48790EARM ASSY, UPPER CONTROL, REAR RH NO.2

main48790-48010iAALH1#,SALA15,TALA1#,TALH17202211

48790FARM ASSY, UPPER CONTROL, REAR LH NO.2

main48790-48020iAALH1#,SALA15,TALA1#,TALH17202211

48812BAR, STABILIZER, REAR

main48805-48160iSALA15,TALA1#202211

main48805-48180iAALH1#,TALH17202211

48830DLINK ASSY, REAR STABILIZER, RH

main48830-48060iAALH1#,SALA15,TALA1#,TALH17202211

48840ALINK ASSY, REAR STABILIZER, LH

main48840-48010iAALH1#,SALA15,TALA1#,TALH17202211

9010512415

main90105-12415

9010910181

main90109-10181

9011906A21

main90119-06A21

9011910A31

main90119-10A31

9011912456

main90119-12456

9011912484

main90119-12484

9011914200

main90119-14200

9017714006

main90177-14006

9017810022

main90178-10022

9017812009

main90178-12009

9017814028

main90178-14028

9017912151

main90179-12151

9413061200

main94130-61200

9415121241

main94151-21241

9418801441

main94188-01441

49 parts on this diagram · 2 diagrams in section
