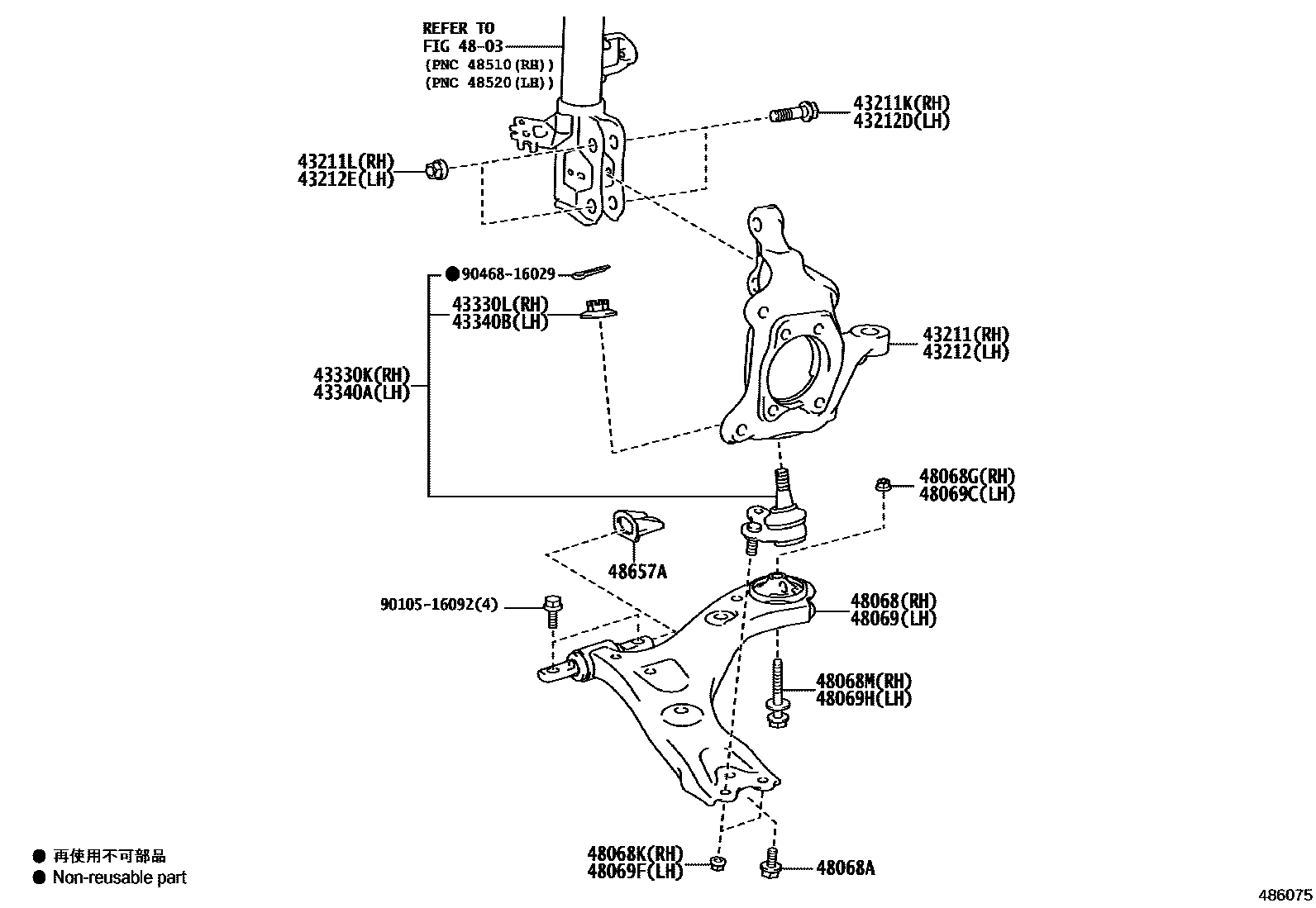

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-48020i202211

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013i202211

OD=15.9

main90105-17014i202211

OD=15

main90105-17015i202211

OD=14

main90105-17021i202211

OD=17

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002i202211

43212KNUCKLE, STEERING, LH

main43202-48020i202211

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013i202211

OD=15.9

main90105-17014i202211

OD=15

main90105-17015i202211

OD=14

main90105-17021i202211

OD=17

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002i202211

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49245i202211

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14014i202211

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49245i202211

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14014i202211

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-48090i202211

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12407i202211

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14068i202211

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-12019i202211

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180i202211

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-48090i202211

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14068i202211

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-12019i202211

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180i202211

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010i202211

9010516092

main90105-16092

9046816029

main90468-16029

23 parts on this diagram · 2 diagrams in section
