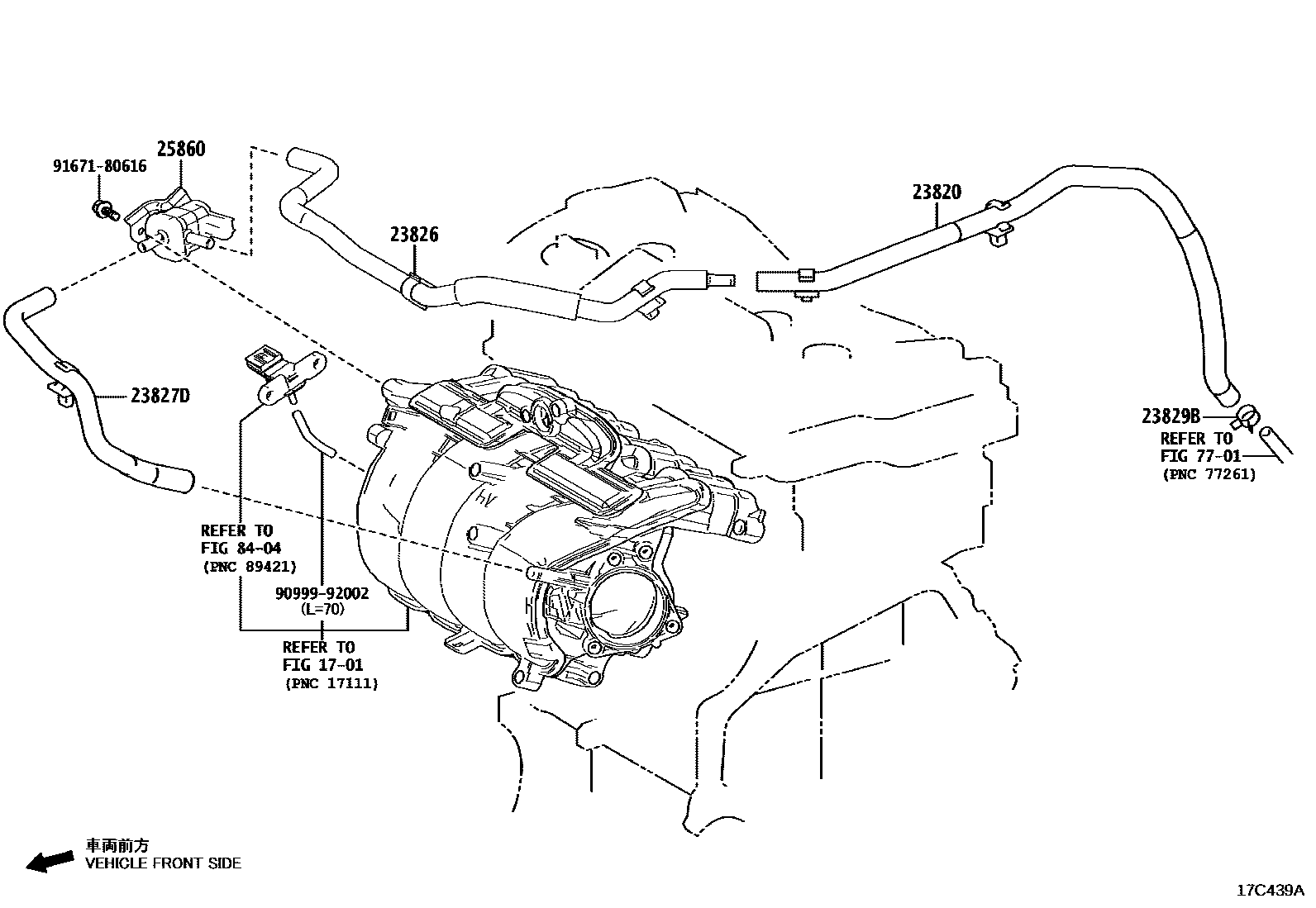

VACUUM PIPING

0001 1 0002 1W(GPF) 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1BRAZIL SPEC

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25200iA25AFXS..AALH16202211-202312

sub23820-25600

main23820-25210iA25AFXS..AALH15..LHD..EUR202211

AZERBAIJAN SPEC

main23820-25210iA25AFXS..AALH15..LHD..EUR202308

KAZAKHSTAN SPEC

main23820-25210iA25AFXS..AALH15..LHD..EUR202308

KYRGYZSTAN SPEC

main23820-25210iA25AFXS..AALH15..LHD..EUR202308

ARMENIA SPEC

main23820-25210iA25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

UKRAINE SPEC

main23820-25210iA25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

GEORGIA SPEC

main23820-25210iA25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MOROCCO SPEC

main23820-25210iA25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MONGOLIA SPEC

main23820-25210iA25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MOLDOVA SPEC

main23820-25220iA25AFXS..AALH15..LHD..GEN202211

TAIWAN SPEC

main23820-25230iT24AFTS..TALA1#202211

main23820-25240iS20AFTS..SALA15202410

main23820-25280iT24AFTS..TALH17..LHD..GEN202211

BRAZIL SPEC

main23820-25320iT24AFTS..TALH17..EUR,GCC,GEN202211

main23820-25600iA25AFXS..AALH16202312

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

UKRAINE SPEC

main23820-25051iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

AZERBAIJAN SPEC

main23820-25051iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

GEORGIA SPEC

main23820-25051iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MOROCCO SPEC

main23820-25051iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MONGOLIA SPEC

main23820-25051iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MOLDOVA SPEC

main23820-25051iA25AFXS..AALH15..LHD..EUR202308

ARMENIA SPEC

main23820-25051iA25AFXS..AALH15..LHD..EUR202308

KYRGYZSTAN SPEC

main23820-25051iA25AFXS..AALH15..LHD..EUR202308

KAZAKHSTAN SPEC

main23820-25150iA25AFXS..AALH15..EUR;A25AFXS..AALH10..LHD..GEN202211

TAIWAN SPEC

main23826-25280iS20AFTS..SALA15202410

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

AZERBAIJAN SPEC

main23820-25130iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

GEORGIA SPEC

main23820-25130iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MOROCCO SPEC

main23820-25130iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MONGOLIA SPEC

main23820-25130iA25AFXS..AALH16;A25AFXS..AALH10..RHD;A25AFXS..AALH10..CHI;A25AFXS..AALH15..CHI,GCC,GEN202211

MOLDOVA SPEC

main23820-25130iA25AFXS..AALH15..LHD..EUR202211

UKRAINE SPEC

main23820-25130iA25AFXS..AALH15..LHD..EUR202308

KAZAKHSTAN SPEC

main23820-25130iA25AFXS..AALH15..LHD..EUR202308

KYRGYZSTAN SPEC

main23820-25130iA25AFXS..AALH15..LHD..EUR202308

ARMENIA SPEC

main23820-25160iA25AFXS..AALH15..LHD..GEN202211

TAIWAN SPEC

main23827-25150iS20AFTS..SALA15202211

main23827-25160iT24AFTS..TALH17..LHD..GEN202211

BRAZIL SPEC

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13005iT24AFTS..TALA1#202211

main96138-41901iA25AFXS..AALH1#202211

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AALH15..LHD..EUR202211

GEORGIA SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202211

MOROCCO SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202211

MONGOLIA SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202211

MOLDOVA SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202211

UKRAINE SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202211

AZERBAIJAN SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202308

KYRGYZSTAN SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202308

ARMENIA SPEC

main25860-25020iA25AFXS..AALH15..LHD..EUR202308

KAZAKHSTAN SPEC

main25860-25070iA25AFXS..AALH15..LHD..GEN202211

TAIWAN SPEC

main25860-25080iS20AFTS..SALA15202211

7701

8404

9099992002

main90999-92002

9167180616

main91671-80616

10 parts on this diagram · 9 diagrams in section
