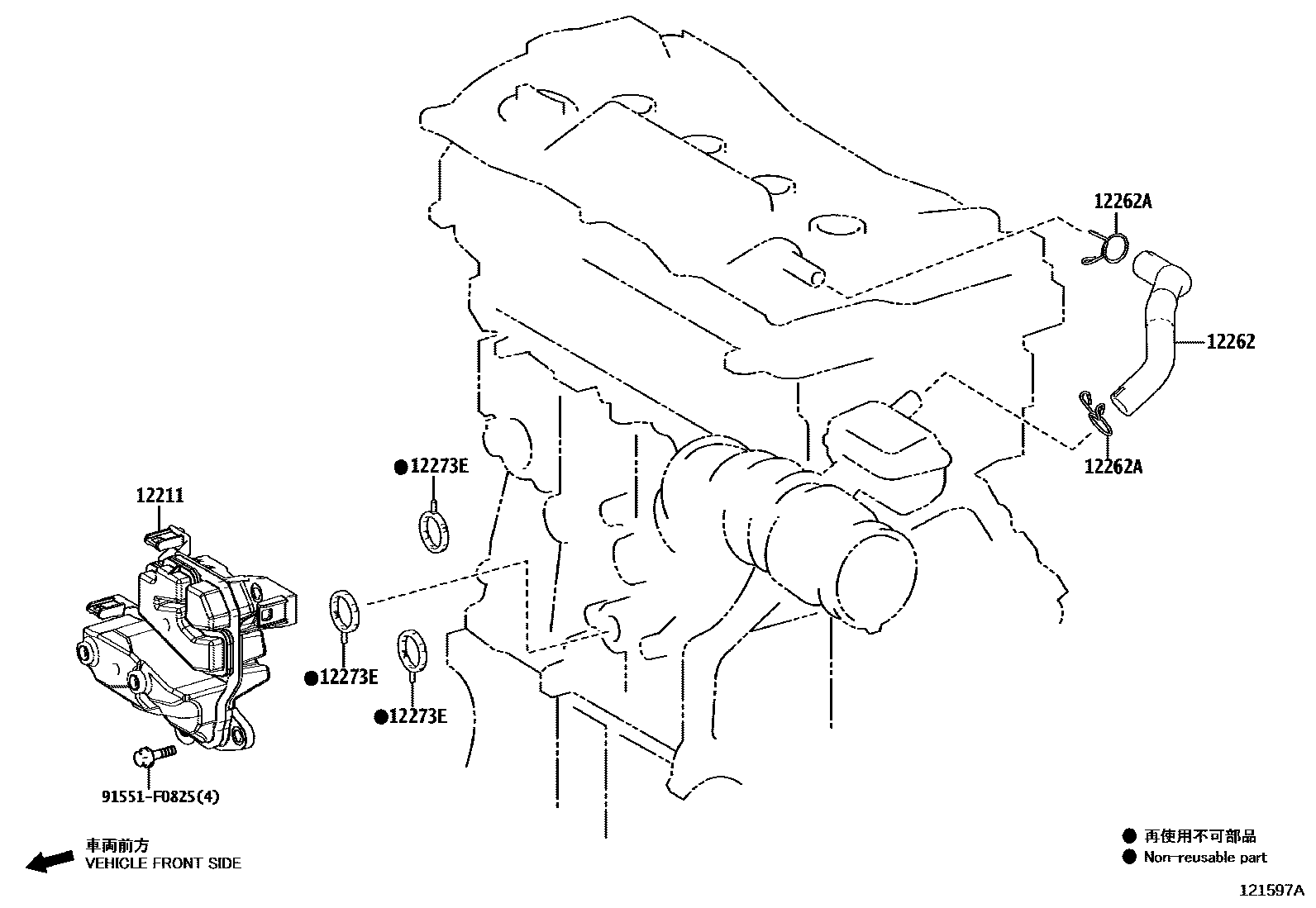

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12211CASE, VENTILATION, NO.1

main12211-25011iA25AFXS..AALH1#..EUR,GCC,GEN202211-202301

12262HOSE, VENTILATION, NO.2

main12260-25020iT24AFTS..TALH17..CHI202211

main12262-25070iT24AFTS..TALH17..EUR,GCC,GEN202211

main12262-25080iA25AFXS..AALH1#202211

main12262-25100iT24AFTS..TALA1#202211

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iA25AFXS..AALH1#202211

main90467-23002iT24AFTS..TALA1#,TALH17202211

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25AFXS..AALH1#..EUR,GCC,GEN202211-202301

91551F0825

main91551-F0825

5 parts on this diagram · 4 diagrams in section
