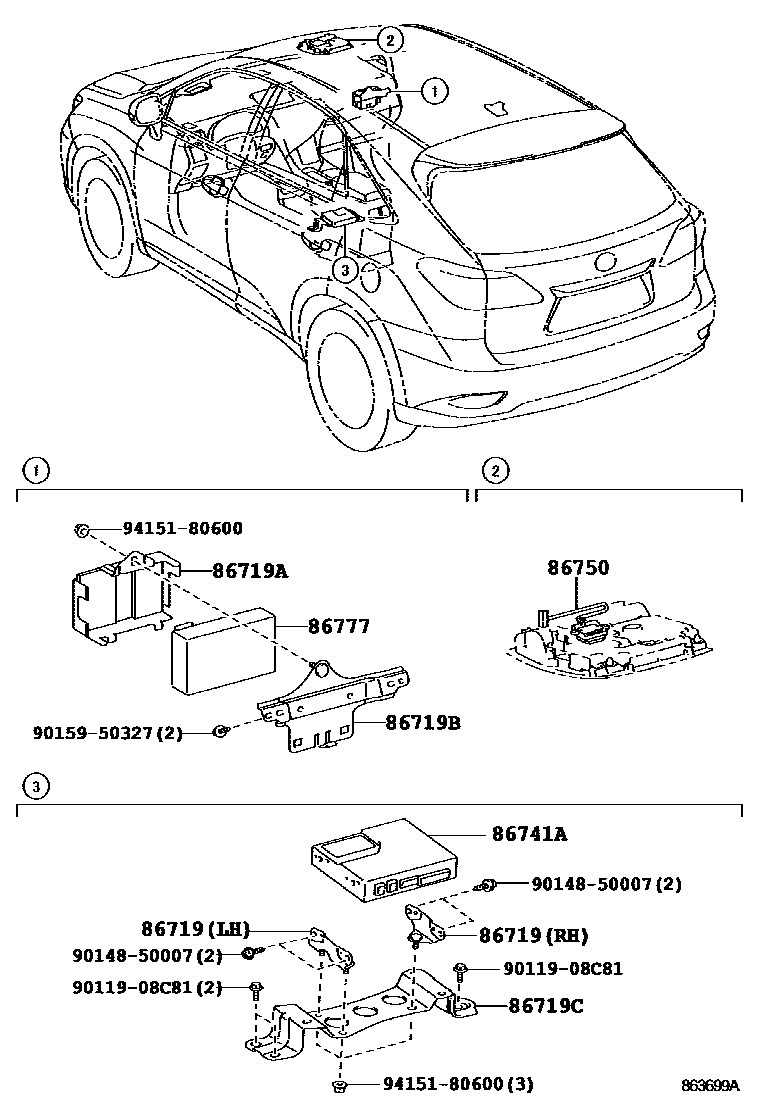

TELEPHONE & MAYDAY
86719BRACKET, TELEPHONE
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS),RH
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS),RH
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS),RH
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),RH
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),RH
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS),LH
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),LH
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),LH
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS),LH
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS),LH
86719ABRACKET, TELEPHONE NO.1
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
86719BBRACKET, TELEPHONE NO.2
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
86719CBRACKET, TELEPHONE NO.3
WITH(REAR DISPLAY)
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
WITH(REAR DISPLAY)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
86741ATRANSCEIVER, TELEMATICS
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
sub86741-48041
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
sub86741-48041
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86741-48041
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86741-48041
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86741-48041
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86741-48042
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86741-48042
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86741-48042
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
86750SWITCH ASSY, TELEPHONE
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),IVORY,TRIM0#
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),IVORY,TRIM0#
MAYDAY SYSTEM-W(TELEMATICS),IVORY,TRIM0#,40
MAYDAY SYSTEM-W(TELEMATICS),LT.GRAY,TRIM10,20,30,40
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),LT.GRAY,TRIM1#,2#
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION),LT.GRAY,TRIM1#,2#
MAYDAY SYSTEM-W(TELEMATICS),LT.GRAY,TRIM1#,20,3#,40
MAYDAY SYSTEM-W(TELEMATICS),BLACK,TRIM21,22
MAYDAY SYSTEM-W(TELEMATICS),BLACK,TRIM11,21,22,31,41
MAYDAY SYSTEM-W(TELEMATICS),BLACK,TRIM22
86777BATTERY, MAYDAY
ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
sub86777-0W051
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
sub86777-0W051
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86777-76030
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
sub86777-76030
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
sub86777-76030
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86777-76030
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
sub86777-76030
CHINA(EXCEPT BEIJING) SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
BEIJING SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&MAYDAY SYSTEM-W(TELEMATICS)
9011908C81
main90119-08C81
9014850007
main90148-50007
9015950327
main90159-50327
9415180600
main94151-80600
11 parts on this diagram · 2 diagrams in section
