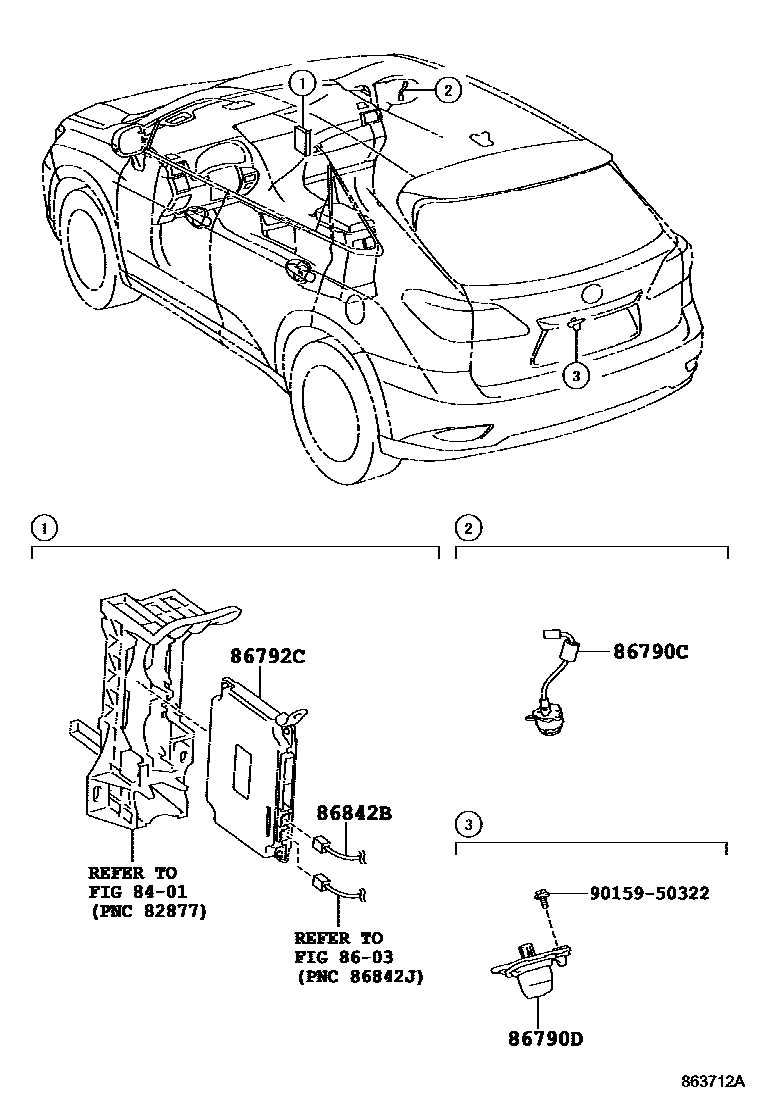

CAMERA & REAR MONITOR DISPLAY
8401
8603
86790CCAMERA ASSY, TELEVISION, SIDE
ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
86790DCAMERA ASSY, TELEVISION, RR
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-DVD,12SPEAKER&EMV & NAVIGATIONSYSTEM-WITH(HDD NAVIGATION)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-DVD,12SPEAKER&EMV & NAVIGATIONSYSTEM-WITH(HDD NAVIGATION)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-DVD,12SPEAKER&EMV & NAVIGATIONSYSTEM-WITH(HDD NAVIGATION)
EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
86792CCOMPUTER, PARKING ASSIST
AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH
HONG KONG SPEC&ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH
NEW ZEALAND SPEC&ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
BRUNEI SPEC&ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH
ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH
ULTRA LUXURY PACKAGE
86842BWIRE, NAVIGATION, NO.2
AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
9015950322
main90159-50322
7 parts on this diagram · 10 diagrams in section
