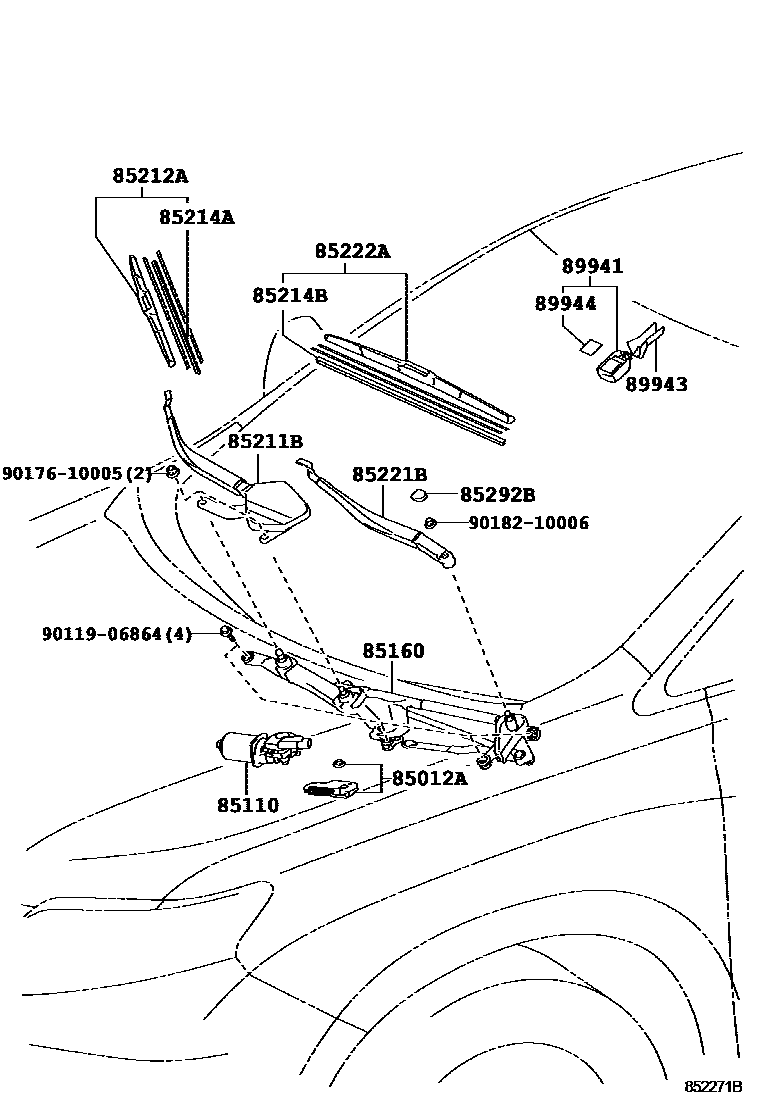

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010iAGL10,GGL15,GYL1#..RHD200812-201203

main85012-58010iAGL10,GGL15,GYL1#..LHD200812-201203

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48190iAGL10,GGL15,GYL1#..RHD200812-201203

main85110-48200iAGL10,GGL15,GYL1#..LHD200812-201203

85160LINK ASSY, WINDSHIELD WIPER

main85150-48180iAGL10,GGL15,GYL1#..RHD200812-201203

main85150-48190iAGL10,GGL15,GYL1#..LHD200812-201203

85211BARM, FRONT WIPER, RH

main85211-48160iAGL10,GGL15,GYL1#..RHD200812-201203

main85211-48170iAGL10,GGL15,GYL1#..LHD200812-201203

85212ABLADE, FR WIPER, RH

main85212-48130iGGL15..LHD200812-200902

main85212-48140iAGL10,GGL15,GYL1#..RHD200812-201509

main85212-48150iAGL10,GGL15,GYL1#..LHD200903-201509

85214ARUBBER, WIPER, RH

main85214-53080iAGL10,GGL15,GYL1#..LHD200812-201203

main85214-68020iAGL10,GGL15,GYL1#..RHD200812-201203

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-53080iAGL10,GGL15,GYL1#..RHD200812-201203

main85214-68020iAGL10,GGL15,GYL1#..LHD200812-201203

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-48160iAGL10,GGL15,GYL1#..RHD200812-201203

main85221-48170iAGL10,GGL15,GYL1#..LHD200812-201203

85222ABLADE, FR WIPER, LH

main85222-48140iGGL15..RHD200812-200902

main85222-48160iAGL10,GGL15,GYL1#..RHD200903-201509

main85222-52170iAGL10,GGL15,GYL1#..LHD200812-201509

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAGL10,GGL15,GYL1#200812-201203

89941SENSOR, RAIN

main89941-30020iGGL15,GYL1#..EUR200812-201007

main89941-48070iAGL10,GGL15,GYL1#..EUR201008-201102

sub89941-48072

main89941-48071iAGL10,GGL15,GYL1#..EUR201103-201108

sub89941-48072

main89941-48072iAGL10,GGL15,GYL1#..EUR201203

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main89941-48072iAGL10,GGL15,GYL1#..EUR201109-201203

89943COVER, RAIN SENSOR

main89943-22030iAGL10,GGL15,GYL1#..EUR200812-201203

main89943-22030iAGL10,GGL15,GYL1#..EUR201203

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

89944TAPE, RAIN SENSOR

main89944-42010iAGL10,GGL15,GYL1#..EUR200812-201203

main89944-42010iAGL10,GGL15,GYL1#..EUR201203

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

9011906864

main90119-06864

9017610005

main90176-10005

15 parts on this diagram · 2 diagrams in section
