TIRE PRESSURE WARNING SYSTEM

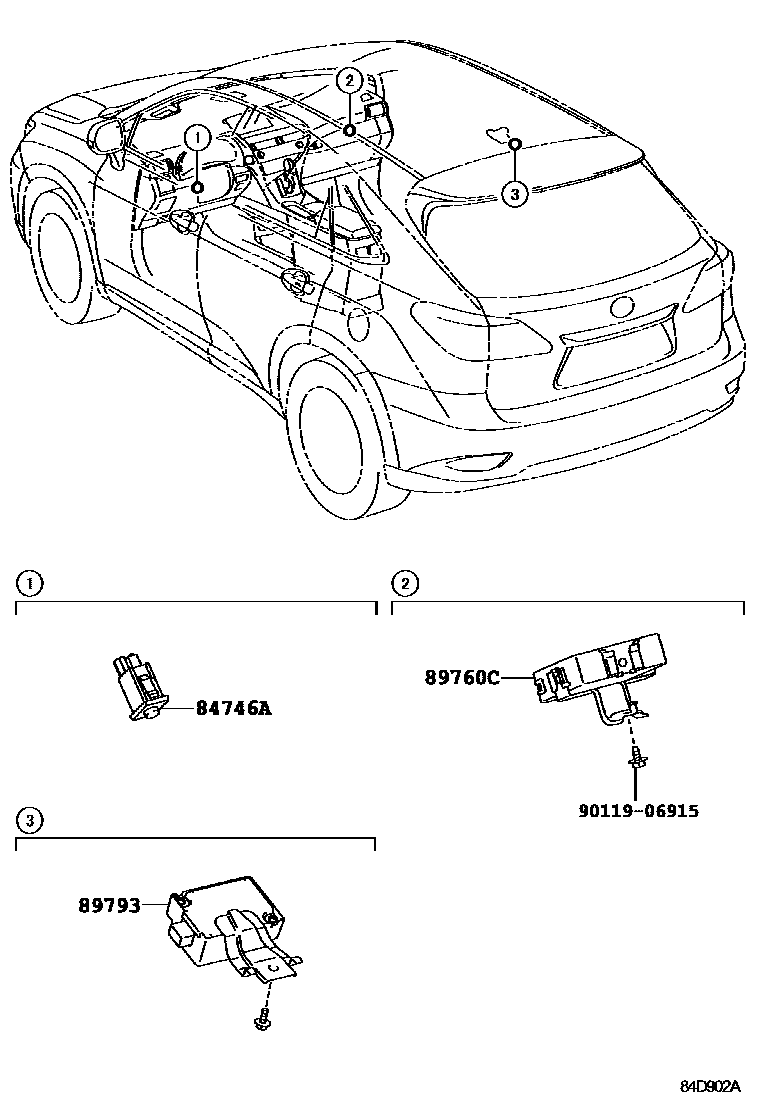

Parts diagram
84746ASWITCH, TIRE PRESSURE WARNING, NO.1
main84746-48010i201308-201509
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
main89760-48050i201308
(L)
main89760-48050i201308
TAIWAN SPEC,(L)
main89760-48050i201308
PHILIPPINE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
PHILIPPINE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
AUSTRALIA SPEC,(L)
main89760-48050i201308
NEW ZEALAND SPEC,(L)
main89760-48050i201308
SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
SOUTH AFRICA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
THAILAND SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
THAILAND SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
HONG KONG SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
HONG KONG SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
BRUNEI SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
BRUNEI SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
MALAYSIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
MALAYSIA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
SINGAPORE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
SINGAPORE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
INDONESIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
INDONESIA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
ADORIA SPEC,(L)
main89760-48050i201308
BRAZIL SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
CHILE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48050i201308
BRAZIL SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48050i201308
CHILE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48060i201308
NORDIC SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48060i201308
ICELAND SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48060i201308
CANARY ISLANDS SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48060i201308
ISRAEL SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48060i201308
RUSSIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48060i201308
UKRAINE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48060i201308
CROATIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
(L)
main89760-48070i201308
TAIWAN SPEC,(L)
main89760-48070i201308
PHILIPPINE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
PHILIPPINE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
AUSTRALIA SPEC,(L)
main89760-48070i201308
NEW ZEALAND SPEC,(L)
main89760-48070i201308
SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
SOUTH AFRICA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
THAILAND SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
THAILAND SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
HONG KONG SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
HONG KONG SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
BRUNEI SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
BRUNEI SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
MALAYSIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
MALAYSIA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
SINGAPORE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
SINGAPORE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
INDONESIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
INDONESIA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48070i201308
ADORIA SPEC,(L)
main89760-48070i201308
CHILE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48070i201308
CHILE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48080i201308
IRELAND SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48080i201308
CYPRUS SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48080i201308
NORDIC SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48080i201308
ICELAND SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48080i201308
CANARY ISLANDS SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48080i201308
RUSSIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48080i201308
UKRAINE SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48080i201308
CROATIA SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48090i201308
ISRAEL SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48100i201308
ISRAEL SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48110i201308
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48110i201308
BEIJING SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48120i201308
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48120i201308
BEIJING SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48130i201308
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48130i201308
BEIJING SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18),(L)
main89760-48140i201308
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-GROUND TIRE,(L)
main89760-48140i201308
BEIJING SPEC&SPARE TIRE-GROUND TIRE,(L)
89793ANTENNA, TIRE PRESSURE ROOF
main89793-48010i201308
TAIWAN SPEC
main89793-48010i201308
PHILIPPINE SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
PHILIPPINE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
AUSTRALIA SPEC
main89793-48010i201308
NEW ZEALAND SPEC
main89793-48010i201308
SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
SOUTH AFRICA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
THAILAND SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
THAILAND SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
HONG KONG SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
HONG KONG SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
BRUNEI SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
BRUNEI SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
MALAYSIA SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
MALAYSIA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
SINGAPORE SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
SINGAPORE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
INDONESIA SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
INDONESIA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
ADORIA SPEC
main89793-48010i201308
INDIA SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
INDIA SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48010i201308
CHILE SPEC&SPARE TIRE-GROUND TIRE
main89793-48010i201308
CHILE SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48020i201308
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-GROUND TIRE
main89793-48020i201308
BEIJING SPEC&SPARE TIRE-GROUND TIRE
main89793-48020i201308
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
main89793-48020i201308
BEIJING SPEC&SPARE TIRE-REINFORCED TEMPORARY(T165/90D18)
9011906915
main90119-06915

4 parts on this diagram · 1 diagram in section
