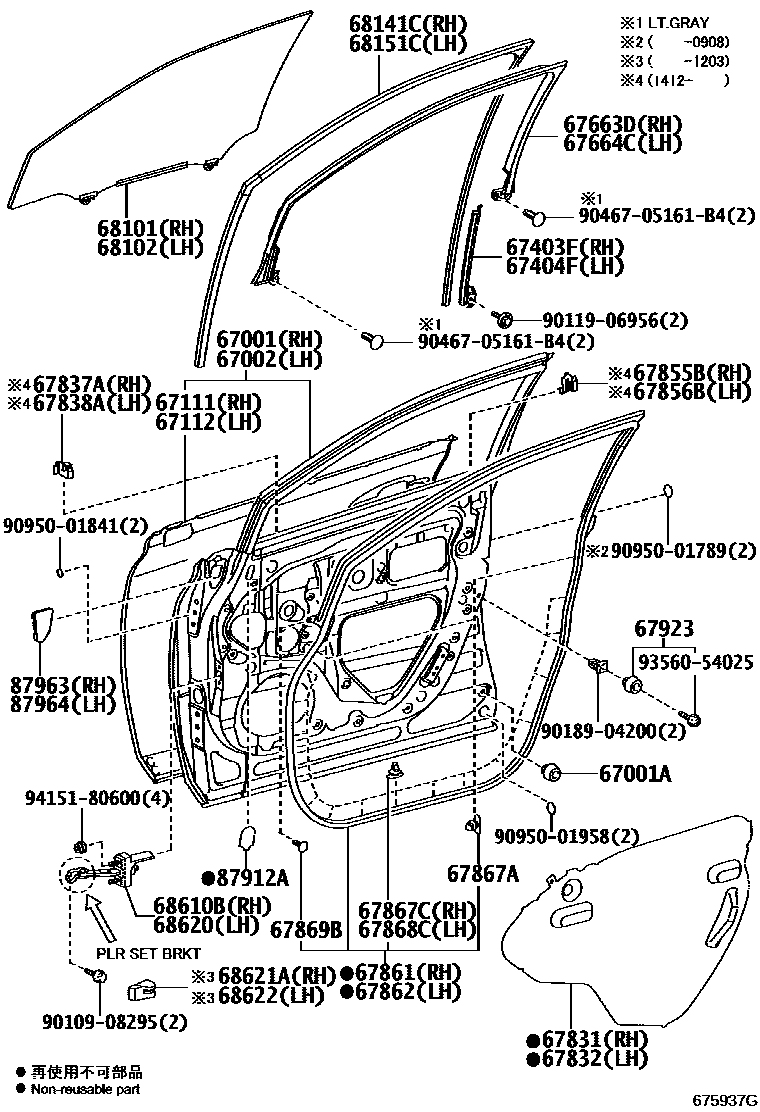

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-48110iAGL10,GGL15,GYL1#200812-201509

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iAGL10,GGL15,GYL1#200812-201203

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-48110iAGL10,GGL15,GYL1#200812-201509

67111PANEL, FRONT DOOR, OUTER RH

main67111-48060iAGL10,GGL15,GYL1#200812-201509

67112PANEL, FRONT DOOR, OUTER LH

main67112-48060iAGL10,GGL15,GYL1#200812-201509

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-48071iAGL10,GGL15,GYL1#200812-201203

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-48071iAGL10,GGL15,GYL1#200812-201203

67663DGARNISH, DOOR FRAME, RH

main67663-48030iAGL10,GGL15,GYL1#200812-201101

sub67663-48031

main67663-48031iAGL10,GGL15,GYL1#201101-201203

67664CGARNISH, DOOR FRAME, LH

main67664-48030iAGL10,GGL15,GYL1#200812-201101

sub67664-48031

main67664-48031iAGL10,GGL15,GYL1#201101-201203

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-48050iAGL10,GGL15,GYL1#200812-201203

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-48050iAGL10,GGL15,GYL1#200812-201203

67837ASEAL, FRONT DOOR VENT, RH

main67837-48040iAGL10,GGL15,GYL1#201412

67838ASEAL, FRONT DOOR VENT, LH

main67838-48030iAGL10,GGL15,GYL1#201412

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-48040iAGL10,GGL15,GYL1#201412

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-48030iAGL10,GGL15,GYL1#201412

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-48070iAGL10,GGL15,GYL1#200812-201203

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-48070iAGL10,GGL15,GYL1#200812-201203

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-04034iAGL10,GGL15,GYL1#200812-201203

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAGL10,GGL15,GYL1#200812-201203

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAGL10,GGL15,GYL1#200812-201203

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030iAGL10,GGL15,GYL1#200812-201203

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48060iAGL10,GGL15,GYL1#200812-201203

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,NEW ZEALAND SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,SOUTH AFRICA SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,THAILAND SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,HONG KONG SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,BRUNEI SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,MALAYSIA SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,SINGAPORE SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,IRELAND SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,CYPRUS SPEC

main68101-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,AUSTRALIA SPEC

main68101-48111iGYL15;GGL15..RHD200812-200905

*LAM,T=5.16,GREEN

sub68101-48112

main68101-48112iGGL15,GYL1#200906-201007

*LAM,T=5.16,GREEN

sub68101-48113

main68101-48113iAGL10,GGL15,GYL1#201008-201509

*LAM,T=5.16,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,AUSTRALIA SPEC

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,NEW ZEALAND SPEC

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,SOUTH AFRICA SPEC

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,THAILAND SPEC

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,HONG KONG SPEC

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,BRUNEI SPEC

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,MALAYSIA SPEC

main68102-48100iGGL15,GYL15..LHD200812-200906

*UVCT,T=5.0,GREEN,SINGAPORE SPEC

main68102-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN

main68102-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,IRELAND SPEC

main68102-48100iGGL15,GYL15..RHD200812-200906

*UVCT,T=5.0,GREEN,CYPRUS SPEC

main68102-48111iGYL15;GGL15..RHD200812-200905

*LAM,T=5.16,GREEN

sub68102-48112

main68102-48112iGGL15,GYL1#200906-201007

*LAM,T=5.16,GREEN

sub68102-48113

main68102-48113iAGL10,GGL15,GYL1#201008-201509

*LAM,T=5.16,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-48060iAGL10,GGL15,GYL1#200812-201203

68151CRUN, FRONT DOOR GLASS, LH

main68151-48060iAGL10,GGL15,GYL1#200812-201203

68610BCHECK ASSY, FRONT DOOR, RH

main68610-48050iGGL15,GYL1#200812-201004

PLR SET BRKT:BLACK

main68610-48051iAGL10,GGL15,GYL1#201004-201203

PLR SET BRKT:SILVER

main68610-48060iAGL10,GGL15,GYL1#201203

68620CHECK ASSY, FRONT DOOR, LH

main68620-48040iGGL15,GYL1#200812-201004

PLR SET BRKT:BLACK

main68620-48041iAGL10,GGL15,GYL1#201004-201203

PLR SET BRKT:SILVER

main68620-48050iAGL10,GGL15,GYL1#201203

68621ACOVER, FRONT DOOR CHECK, RH

main68621-53010iAGL10,GGL15,GYL1#200812-201203

68622COVER, FRONT DOOR CHECK, LH

main68622-53010iAGL10,GGL15,GYL1#200812-201203

87912APROTECTOR, OUTER MIRROR

main87912-48010iAGL10,GGL15,GYL1#200812-201203

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-48010iAGL10,GGL15,GYL1#200812-201203

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-48010iAGL10,GGL15,GYL1#200812-201203

9010908295

main90109-08295

9011906956

main90119-06956

9018904200

main90189-04200

9046705161B4

main90467-05161B4

9095001789

main90950-01789

9095001841

main90950-01841

9095001958

main90950-01958

9356054025

main93560-54025

9415180600

main94151-80600

42 parts on this diagram · 2 diagrams in section
