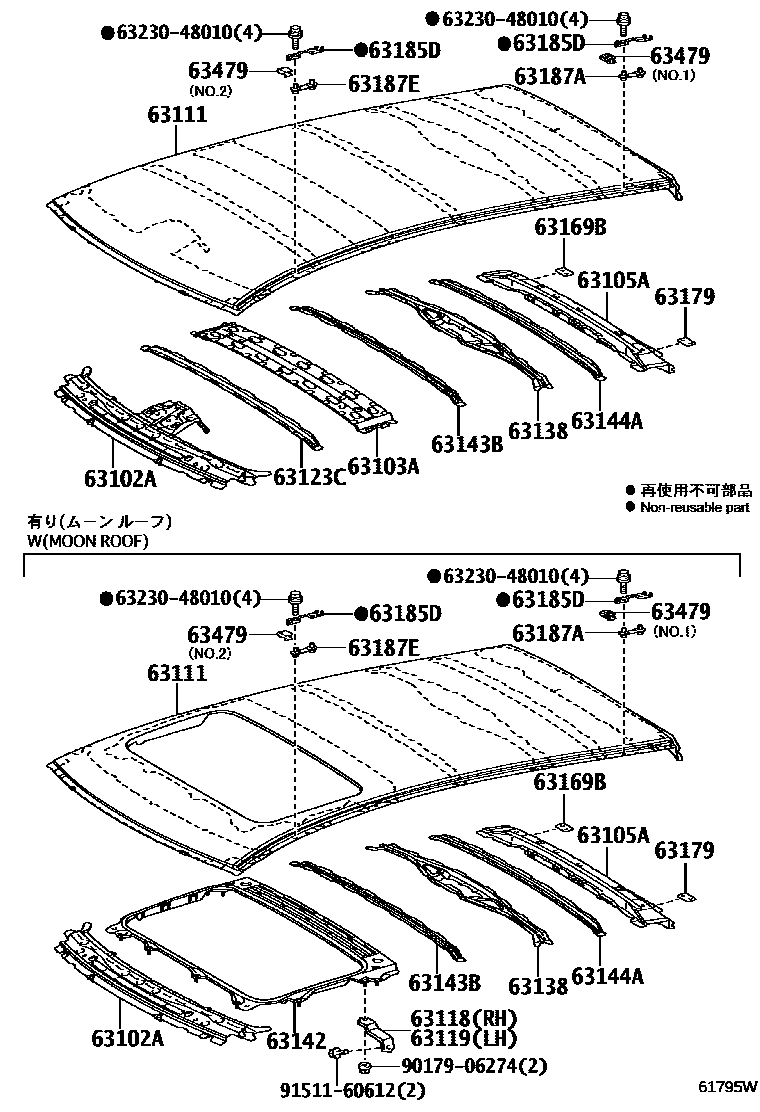

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL OR MOON) 0002 1ROOF PANEL(PANORAMA) 0003 1SLIDING ROOF (MOON) 0004 1SLIDING ROOF (PANORAMA) 0005 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48140iAGL10,GGL15,GYL15..LHD..EUR201203-201509

WITH(PANORAMA ROOF=FIXED)

main63102-48909iAGL10,GGL15,GYL15..LHD..EUR201203-201509

BRAZIL SPEC&WITH(MOON ROOF)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-48030iAGL10,GGL15,GYL1#200812-201203

main63103-48040iAGL10,GGL15,GYL15..LHD..EUR200812-201203

WITH(PANORAMA ROOF=FIXED)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48060iAGL10,GGL15,GYL1#200812-201103

sub63105-48061

main63105-48061iAGL10,GGL15,GYL1#201104-201203

63111PANEL, ROOF

main63111-48130iAGL10,GGL15,GYL15..LHD..EUR201203-201308

BEIJING SPEC&MAYDAY SYSTEM-W(TELEMATICS)

main63111-48150iAGL10,GGL15,GYL15..LHD..EUR201203-201308

BRAZIL SPEC&WITH(MOON ROOF)

main63111-48160iAGL10,GGL15,GYL1#200812-201203

WITH(MOON ROOF)

main63111-48170iAGL10,GGL15,GYL15..LHD..EUR201203-201308

BRAZIL SPEC&WITH(PANORAMA ROOF=FIXED)

main63111-48180iAGL10,GGL15,GYL15200812-201203

WITH(PANORAMA ROOF=FIXED)

main63111-48230iAGL10,GGL15,GYL15..LHD..EUR201308

BEIJING SPEC&MAYDAY SYSTEM-W(TELEMATICS)

main63111-48240iAGL10,GGL15,GYL15..LHD..EUR201308

BRAZIL SPEC&WITH(MOON ROOF)

main63111-48250iAGL10,GGL15,GYL15..LHD..EUR201308

BRAZIL SPEC&WITH(PANORAMA ROOF=FIXED)

63118SUPPORT, ROOF PANEL, RH

main63118-48100iAGL10,GGL15,GYL15..LHD..EUR200812-201203

WITH(MOON ROOF)&MAYDAY SYSTEM-WITH(TELEMATICS)

63119SUPPORT, ROOF PANEL, LH

main63118-48100iAGL10,GGL15,GYL15..LHD..EUR201203

BRAZIL SPEC&WITH(MOON ROOF)

63123CREINFORCEMENT, ROOF PANEL

main63123-48040iAGL10,GGL15,GYL1#200812-201203

63138BRACKET, DOME LAMP, NO.2

main63138-48040iAGL10,GGL15,GYL1#200812-201203

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-48050iAGL10,GGL15,GYL15..LHD..EUR200812-201203

WITH(MOON ROOF)&MAYDAY SYSTEM-WITH(TELEMATICS)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48080iAGL10,GGL15,GYL15..LHD..EUR201203

BRAZIL SPEC&WITH(MOON ROOF)

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48060iAGL10,GGL15,GYL1#200812-201203

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iAGL10,GGL15,GYL1#200812-201203

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iAGL10,GGL15,GYL1#200812-201203

63185DBRACKET, ROOF RACK, FRONT

main63185-48010iAGL10,GGL15,GYL15200812-201203

WITH(PANORAMA ROOF=FIXED)

63187ABRACKET, ROOF RACK, REAR

main63187-42010iAGL10,GGL15,GYL1#200812-201203

63187EBRACKET, ROOF RACK, REAR

main63187-48010iAGL10,GGL15,GYL1#200812-201203

63479RETAINER, ROOF INNER RACK

main63479-48010iAGL10,GGL15,GYL15200812-201203

WITH(PANORAMA ROOF=FIXED)

main63479-48020iAGL10,GGL15,GYL1#200812-201203

NO.2

6323048010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-48010

9017906274

main90179-06274

9151160612

main91511-60612

20 parts on this diagram · 5 diagrams in section
