MAT & CARPET

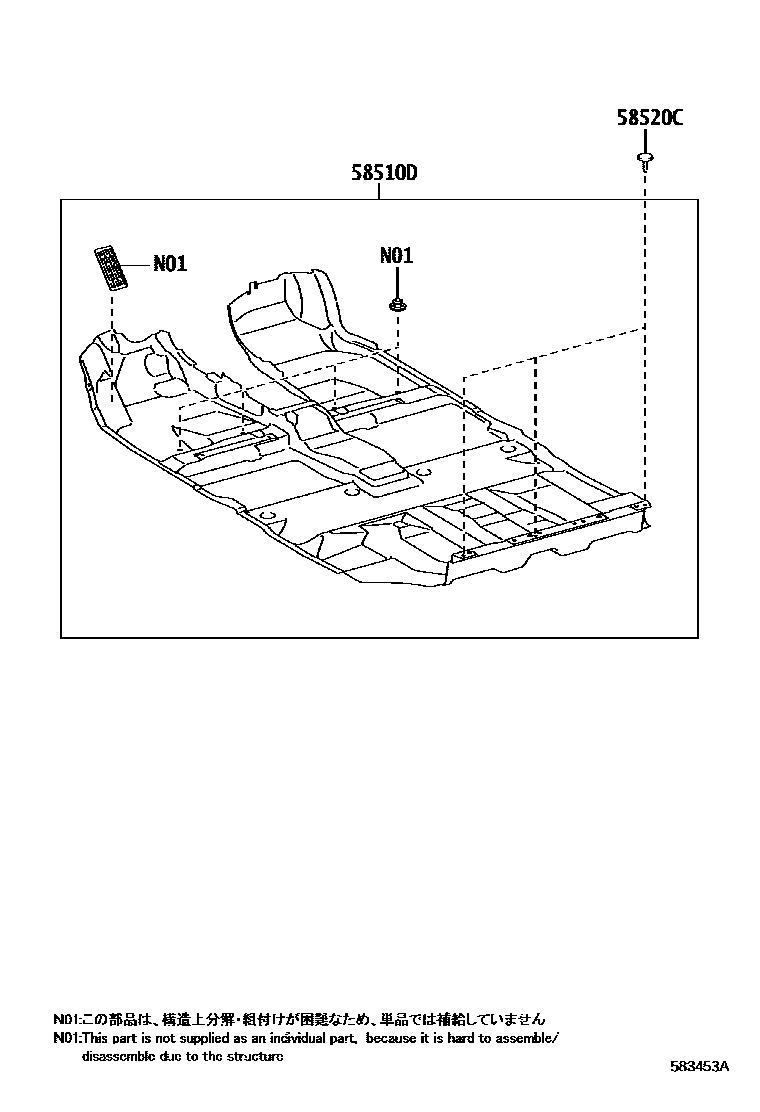

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-48270-A0i200812-201203
IVORY,TRIM0#
main58510-48270-B0i200812-201203
LT.GRAY,TRIM1#
main58510-48270-C0i200812-201203
BLACK,TRIM2#
main58510-48271-A0i201203-201403
IVORY,TRIM0#
sub58510-48272
main58510-48271-B0i201203-201403
LT.GRAY,TRIM10
sub58510-48272
main58510-48271-B0i201203-201403
LT.GRAY,TRIM1#
sub58510-48272
main58510-48271-C0i201203-201403
BLACK,TRIM2#,3#,4#
sub58510-48272
main58510-48271-C0i201203-201403
BLACK,TRIM11,2#,3#,4#
sub58510-48272
main58510-48272-A0i201404
IVORY,TRIM0#
main58510-48272-B0i201404
LT.GRAY,TRIM1#
main58510-48272-B0i201404
LT.GRAY,TRIM10
main58510-48272-C0i201404
BLACK,TRIM2#,3#,4#
main58510-48272-C0i201404
BLACK,TRIM11,2#,3#,4#
main58510-48280-A0i200812-201203
IVORY,TRIM0#
main58510-48280-B0i200812-201203
LT.GRAY,TRIM1#
main58510-48280-C0i200812-201203
BLACK,TRIM2#
main58510-48281-A0i201203
IVORY,TRIM0#
main58510-48281-B0i201203
LT.GRAY,TRIM1#
main58510-48281-C0i201203
BLACK,TRIM2#,3#,4#
main58510-48290-A0i200903-201203
IVORY,TRIM0#
sub58510-48292
main58510-48290-C0i200903-201203
BLACK,TRIM1#,2#
sub58510-48292
main58510-48291-A0i201203-201403
IVORY,TRIM0#
sub58510-48292
main58510-48291-B0i201203-201403
LT.GRAY,TRIM1#
sub58510-48292
main58510-48291-C0i201203-201403
BLACK,TRIM2#,3#,4#
sub58510-48292
main58510-48292-A0i201404
IVORY,TRIM0#
main58510-48292-B0i201404
LT.GRAY,TRIM1#
main58510-48292-C0i201404
BLACK,TRIM2#,4#
main58510-48292-C0i201404
BLACK,TRIM2#,3#,4#
main58510-48300-A0i200903-201203
IVORY,TRIM0#
main58510-48300-C0i200903-201203
BLACK,TRIM1#,2#
main58510-48301-A0i201203
IVORY,TRIM0#
main58510-48301-B0i201203
LT.GRAY,TRIM1#
main58510-48301-C0i201203
BLACK,TRIM2#,3#,4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-07049-C0i200812-201203
BLACK
sub90467-07049

2 parts on this diagram · 8 diagrams in section
