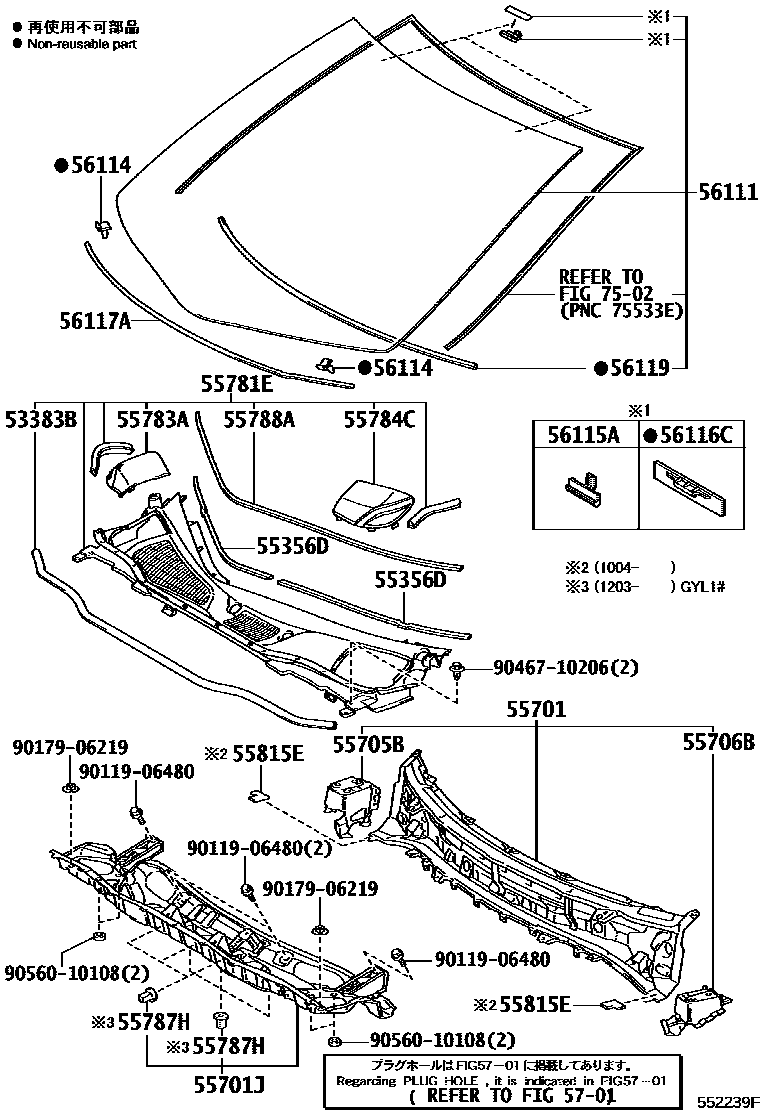

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55783APAD, COWL TOP SILENCER
55784CPAD, COWL TOP SILENCER, LH
55787HCLIP, COWL TOP PANEL INSULATOR
BLACK
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
*LAM,T=5.36,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)
*LAM,T=5.36,GREEN
*LAM,T=5.36,GREEN
*LAM,T=5.36,GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1439,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)
*D,L=1439,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)&HEAD UP DISPLAY-WITH
*D,L=1439,HEAD UP DISPLAY-WITH
*D,L=1439
*D,L=1439,WINDOSHIELD DEICER-WITH
*D,L=1439,WINDOSHIELD DEICER-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)
*D,L=1439,WINDOSHIELD DEICER-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)&HEAD UPDISPLAY-WITH
*D,L=1439,WINDOSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
*D,L=1439,WINDSHIELD DEICER-WITH
*D,L=1439,WINDSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
56119SEAL, WINDSHIELD GLASS
5701
7502
9011906480
main90119-06480
9017906219
main90179-06219
9046710206
main90467-10206
9056010108
main90560-10108
24 parts on this diagram · 2 diagrams in section
