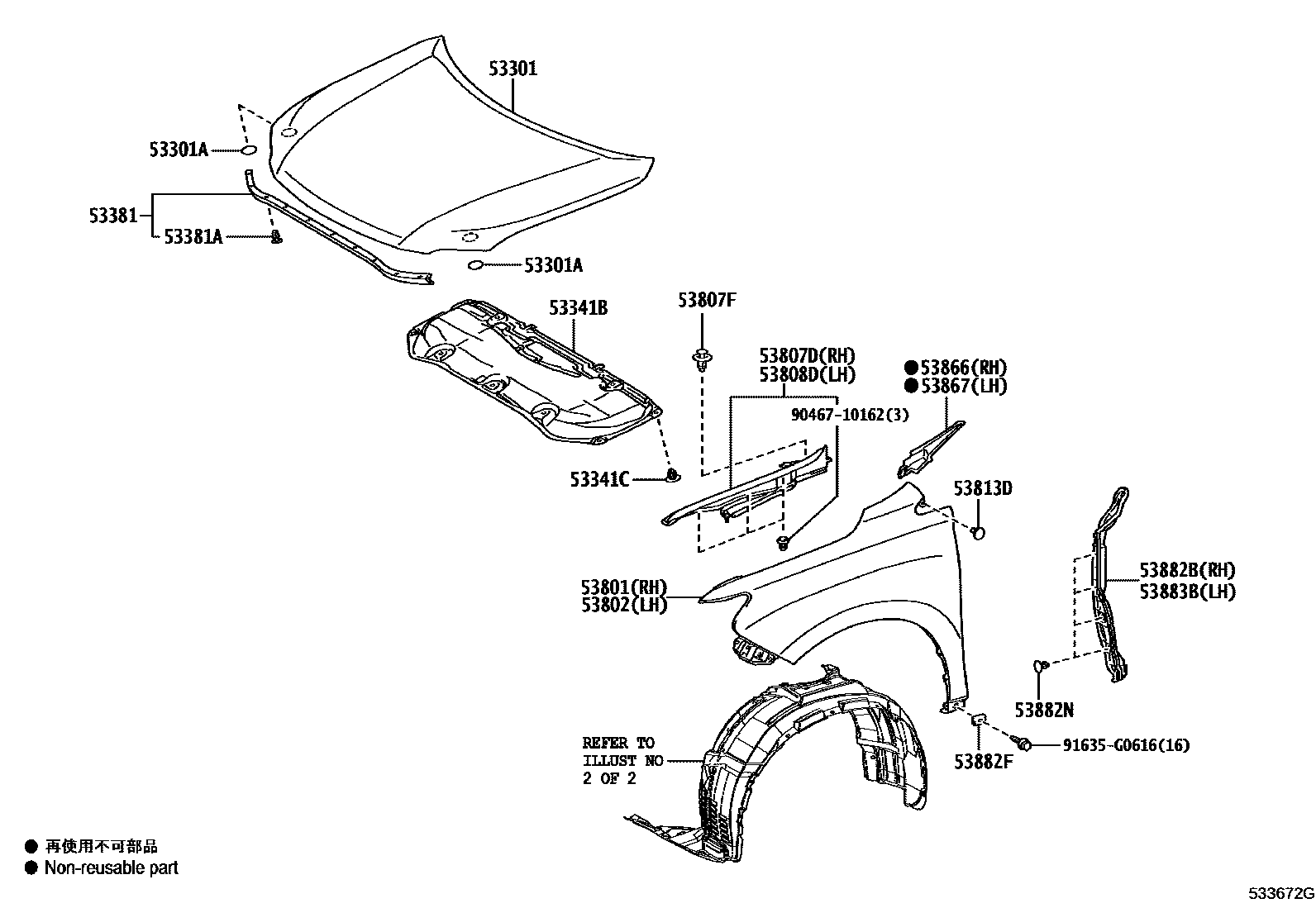

HOOD & FRONT FENDER

0001 1 0002 1 0003 1F SPORT OR AERO BUMPER(FRONT)

53301HOOD SUB-ASSY

main53301-48130iAGL10,GGL15,GYL1#200812-201509

53301APLUG, HOLE(FOR HOOD)

main90333-25001iAGL10,GGL15,GYL1#200812-201012

main90333-25003iAGL10,GGL15,GYL1#201101-201509

53341BINSULATOR, HOOD

main53341-48080iAGL10,GGL15,GYL1#200812-201509

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAGL10,GGL15,GYL1#200812-201509

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48070iAGL10,GGL15,GYL1#200812-201509

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAGL10,GGL15,GYL1#200812-201509

53801FENDER SUB-ASSY, FRONT RH

main53811-48150iAGL10,GGL15,GYL1#200812-201509

53802FENDER SUB-ASSY, FRONT LH

main53812-48130iAGL10,GGL15,GYL1#200812-201509

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-48030iAGL10,GGL15,GYL1#200812-201108

sub53807-48031

main53807-48031iAGL10,GGL15,GYL1#201109-201509

53807FCLIP, FRONT FENDER REINFORCEMENT

main90467-07211iAGL10,GGL15,GYL1#200812-201208

main90467-07217iAGL10,GGL15,GYL1#201209-201509

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-48030iAGL10,GGL15,GYL1#200812-201108

sub53808-48031

main53808-48031iAGL10,GGL15,GYL1#201109-201509

53813DEXTENSION, FRONT FENDER

main53813-28090iGGL15,GYL15200812-200905

sub53813-48011

main53813-48010iGGL15,GYL1#200906-201001

main53813-48011iAGL10,GGL15,GYL1#201002-201509

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-48060iAGL10,GGL15,GYL1#200812-201107

sub53866-48061

main53866-48061iAGL10,GGL15,GYL1#201108-201509

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-48070iAGL10,GGL15,GYL1#200812-201107

sub53867-48071

main53867-48071iAGL10,GGL15,GYL1#201108-201509

53882BSEAL, FRONT FENDER, RH

main53882-48040iAGL10,GGL15,GYL1#200812-201509

53882FSEAL, FRONT FENDER

main53882-26010iAGL10,GGL15,GYL1#200812-201509

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0iAGL10,GGL15,GYL1#200812-201509

BLACK

53883BSEAL, FRONT FENDER, LH

main53883-48040iAGL10,GGL15,GYL1#200812-201509

9046710162

main90467-10162

91635G0616

main91635-G0616

20 parts on this diagram · 3 diagrams in section
