REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48048ASEAT SUB-ASSY, SPRING, RH
SUSPENSION-AIR SUSPENTION
48049ASEAT SUB-ASSY, SPRING, LH
SUSPENSION-AIR SUSPENTION
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48257CINSULATOR, REAR COIL SPRING, UPPER RH
SUSPENSION-AIR SUSPENTION
48258BINSULATOR, REAR COIL SPRING, LOWER RH
SUSPENSION-AIR SUSPENTION
48258CINSULATOR, REAR COIL SPRING, LOWER LH
SUSPENSION-AIR SUSPENTION
48259AINSULATOR, REAR COIL SPRING, UPPER LH
SUSPENSION-AIR SUSPENTION
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH
BRUNEI SPEC&VERSION S
INDONESIA SPEC&VERSION S
SINGAPORE SPEC&VERSION S
MALAYSIA SPEC&VERSION S
HONG KONG SPEC&VERSION S
THAILAND SPEC&VERSION S
SOUTH AFRICA SPEC&VERSION S
NEW ZEALAND SPEC
AUSTRALIA SPEC
AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH
THAILAND SPEC&VERSION S
HONG KONG SPEC&VERSION S
BRUNEI SPEC&VERSION S
MALAYSIA SPEC&VERSION S
SINGAPORE SPEC&VERSION S
INDONESIA SPEC&VERSION S
SOUTH AFRICA SPEC&VERSION S
AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
NEW ZEALAND SPEC
AUSTRALIA SPEC
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-48100,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,THAILAND SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,ARGENTINA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,BRAZIL SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,TURKEY SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,TAIWAN SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,BEIJING SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,CHILE SPEC&SUSPENSION-COIL SPRING
sub48531-48280
CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)
sub48531-48102
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48102
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48290
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48112
MARK 48531-48130,CHINA(EXCEPT BEIJING) SPEC&VERSION S
sub48531-48131
MARK 48531-48130,INDONESIA SPEC&VERSION S
sub48531-48131
MARK 48531-48130,SINGAPORE SPEC&VERSION S
sub48531-48131
MARK 48531-48130,HONG KONG SPEC&VERSION S
sub48531-48131
MARK 48531-48130,SOUTH AFRICA SPEC&VERSION S
sub48531-48131
MARK 48531-48131,CHINA(EXCEPT BEIJING) SPEC&VERSION S
sub48531-48132
MARK 48531-48131,SOUTH AFRICA SPEC&VERSION S
sub48531-48132
MARK 48531-48131,HONG KONG SPEC&VERSION S
sub48531-48132
MARK 48531-48131,SINGAPORE SPEC&VERSION S
sub48531-48132
MARK 48531-48131,INDONESIA SPEC&VERSION S
sub48531-48132
MARK 48531-48180,NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48181
MARK 48531-48180,AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48181
MARK 48531-48190,AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48191
MARK 48531-48190,NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48191
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-48100,BRAZIL SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,TURKEY SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,THAILAND SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,ARGENTINA SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,TAIWAN SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,BEIJING SPEC&SUSPENSION-COIL SPRING
sub48531-48280
MARK 48531-48100,CHILE SPEC&SUSPENSION-COIL SPRING
sub48531-48280
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48102
CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)
sub48531-48102
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48290
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48531-48112
MARK 48531-48130,HONG KONG SPEC&VERSION S
sub48531-48131
MARK 48531-48130,SOUTH AFRICA SPEC&VERSION S
sub48531-48131
MARK 48531-48130,CHINA(EXCEPT BEIJING) SPEC&VERSION S
sub48531-48131
MARK 48531-48131,SINGAPORE SPEC&VERSION S
sub48531-48132
MARK 48531-48131,CHINA(EXCEPT BEIJING) SPEC&VERSION S
sub48531-48132
MARK 48531-48131,SOUTH AFRICA SPEC&VERSION S
sub48531-48132
MARK 48531-48131,HONG KONG SPEC&VERSION S
sub48531-48132
MARK 48531-48131,INDONESIA SPEC&VERSION S
sub48531-48132
MARK 48531-48180,NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48181
MARK 48531-48180,AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48181
MARK 48531-48190,NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48191
MARK 48531-48190,AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)
sub48531-48191
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
SUSPENSION-AIR SUSPENTION
48737COVER, REAR SUSPENSION ARM, RH
SUSPENSION-AIR SUSPENTION
48738COVER, REAR SUSPENSION ARM, LH
SUSPENSION-AIR SUSPENTION
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
SUSPENSION-AIR SUSPENTION
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48802LINK SUB-ASSY, STABILIZER
RH
SUSPENSION-AIR SUSPENTION,RH
LH
SUSPENSION-AIR SUSPENTION,LH
48812BAR, STABILIZER, REAR
SUSPENSION-AIR SUSPENTION
48818BUSH, STABILIZER, REAR
SUSPENSION-AIR SUSPENTION
48832ABRACKET, REAR STABILIZER BAR, NO.1
F SPORT
48835BRACKET, REAR STABILIZER, LOWER
48870AACUTUATOR ASSY, REAR ACTIVE STABILIZER CONTROL
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
9010514172
main90105-14172
9011914136
main90119-14136
9017810034
main90178-10034
9017812009
main90178-12009
9017812019
main90178-12019
9017812023
main90178-12023
9017914068
main90179-14068
9017914069
main90179-14069
9020114293
main90201-14293
9056014028
main90560-14028
91552L1260
main91552-L1260
91552L1455
main91552-L1455
91671A0616
main91671-A0616
91672L1030
main91672-L1030
91672L1225
main91672-L1225
91672L1275
main91672-L1275
91672L1495
main91672-L1495
91674L1440
main91674-L1440
9415121241
main94151-21241
9415121441
main94151-21441

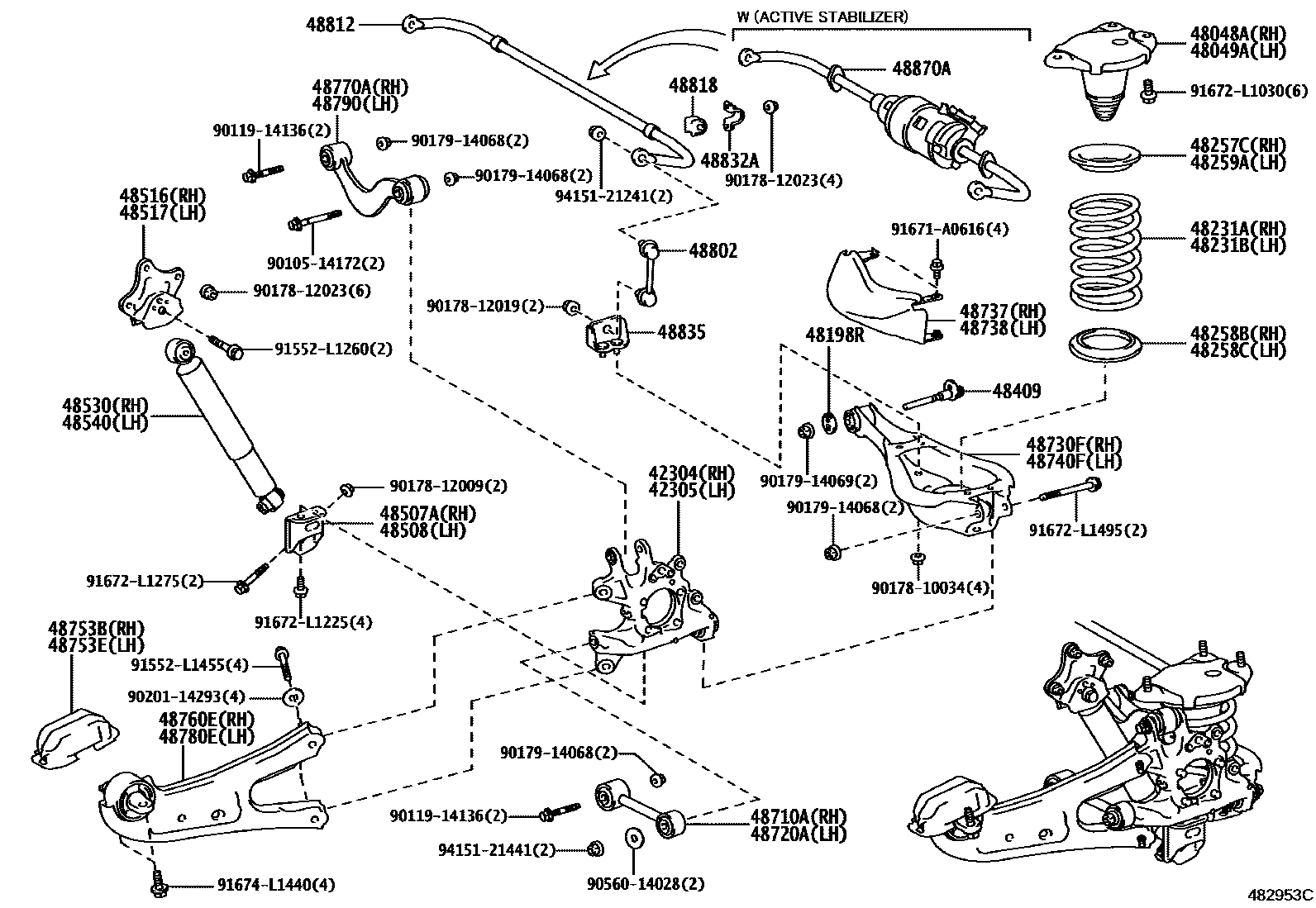

56 parts on this diagram · 2 diagrams in section
