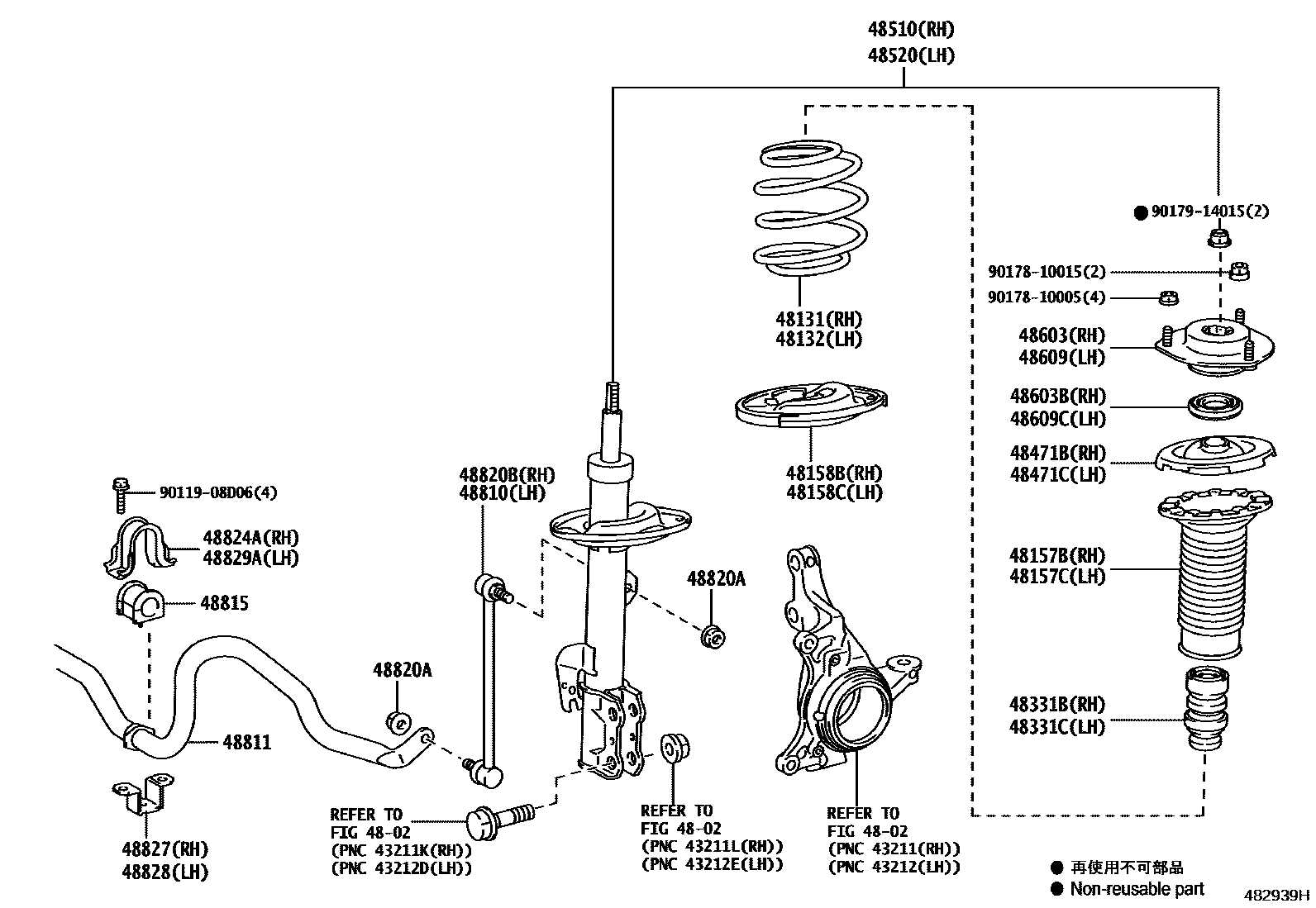

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-48270,SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,ARGENTINA SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,BRAZIL SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,TURKEY SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,THAILAND SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,TAIWAN SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,BEIJING SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48270,CHILE SPEC&SUSPENSION-COIL SPRING
sub48510-80634
MARK 48510-48280,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,TURKEY SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,TAIWAN SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,BEIJING SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,THAILAND SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,CHILE SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48280,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
sub48510-80635
MARK 48510-48300,CHINA(EXCEPT BEIJING) SPEC&VERSION S
sub48510-80583
MARK 48510-48340,LATIN AMERICA SPEC W/O(CHILE)&F SPORT
MARK 48510-48340
MARK 48510-48340,F SPORT
MARK 48510-48350,F SPORT
MARK 48510-48350
MARK 48510-48350,LATIN AMERICA SPEC W/O(CHILE)&F SPORT
MARK 48510-48271,TAIWAN SPEC&SUSPENSION-COIL SPRING
MARK 48510-48271,CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)
MARK 48510-48271,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
MARK 48510-48271,BEIJING SPEC&AERO BUMPER(FRONT)
MARK 48510-48271,BEIJING SPEC&SUSPENSION-COIL SPRING
MARK 48510-48271,AUSTRALIA SPEC
MARK 48510-48271,NEW ZEALAND SPEC
MARK 48510-48271,SOUTH AFRICA SPEC
MARK 48510-48271,THAILAND SPEC
MARK 48510-48271,HONG KONG SPEC
MARK 48510-48271,BRUNEI SPEC
MARK 48510-48271,MALAYSIA SPEC
MARK 48510-48271,SINGAPORE SPEC
MARK 48510-48271,INDONESIA SPEC
MARK 48510-48271,CHILE SPEC&SUSPENSION-COIL SPRING
MARK 48510-48271
MARK 48510-48271,BRAZIL SPEC&SUSPENSION-COIL SPRING
MARK 48510-48271,TAIWAN SPEC
MARK 48510-48271,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,MALAYSIA SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,THAILAND SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,HONG KONG SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,BRUNEI SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,SINGAPORE SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,INDONESIA SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,CHILE SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281
MARK 48510-48281,TAIWAN SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,BEIJING SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,AUSTRALIA SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
MARK 48510-48281,SOUTH AFRICA SPEC
MARK 48510-42301,VERSION S
MARK 48510-42301,THAILAND SPEC&VERSION S
MARK 48510-42301,HONG KONG SPEC&VERSION S
MARK 48510-42301,MALAYSIA SPEC&VERSION S
MARK 48510-42301,SINGAPORE SPEC&VERSION S
MARK 48510-42301,CHINA(EXCEPT BEIJING) SPEC&VERSION S
MARK 48510-42301,BEIJING SPEC&VERSION S
MARK 48510-42301
MARK 48510-42291
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-48270,THAILAND SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,BRAZIL SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,TURKEY SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,ARGENTINA SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,TAIWAN SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,BEIJING SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48270,CHILE SPEC&SUSPENSION-COIL SPRING
sub48520-80338
MARK 48520-48280,HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,THAILAND SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,BEIJING SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,TAIWAN SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,CHILE SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48280,TURKEY SPEC&SUSPENSION-COIL SPRING
sub48520-80339
MARK 48520-48300,CHINA(EXCEPT BEIJING) SPEC&VERSION S
sub48520-80303
MARK 48520-48340,F SPORT
MARK 48520-48340,LATIN AMERICA SPEC W/O(CHILE)&F SPORT
MARK 48520-48340
MARK 48520-48350,F SPORT
MARK 48520-48350,LATIN AMERICA SPEC W/O(CHILE)&F SPORT
MARK 48520-48350
MARK 48520-48271,THAILAND SPEC
MARK 48520-48271,TAIWAN SPEC&SUSPENSION-COIL SPRING
MARK 48520-48271,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
MARK 48520-48271,CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)
MARK 48520-48271,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
MARK 48520-48271,BEIJING SPEC&AERO BUMPER(FRONT)
MARK 48520-48271,BEIJING SPEC&SUSPENSION-COIL SPRING
MARK 48520-48271,AUSTRALIA SPEC
MARK 48520-48271,NEW ZEALAND SPEC
MARK 48520-48271,SOUTH AFRICA SPEC
MARK 48520-48271,HONG KONG SPEC
MARK 48520-48271,BRUNEI SPEC
MARK 48520-48271,MALAYSIA SPEC
MARK 48520-48271,SINGAPORE SPEC
MARK 48520-48271,INDONESIA SPEC
MARK 48520-48271,CHILE SPEC&SUSPENSION-COIL SPRING
MARK 48520-48271
MARK 48520-48271,BRAZIL SPEC&SUSPENSION-COIL SPRING
MARK 48520-48271,TAIWAN SPEC
MARK 48520-48281
MARK 48520-48281,PHILIPPINE SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,BEIJING SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,AUSTRALIA SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,THAILAND SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,HONG KONG SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,BRUNEI SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,MALAYSIA SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,SINGAPORE SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,INDONESIA SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,CHILE SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,TAIWAN SPEC&SUSPENSION-COIL SPRING
MARK 48520-48281,SOUTH AFRICA SPEC
MARK 48520-42301,BEIJING SPEC&VERSION S
MARK 48520-42301,SINGAPORE SPEC&VERSION S
MARK 48520-42301,CHINA(EXCEPT BEIJING) SPEC&VERSION S
MARK 48520-42301
MARK 48520-42301,VERSION S
MARK 48520-42301,THAILAND SPEC&VERSION S
MARK 48520-42301,HONG KONG SPEC&VERSION S
MARK 48520-42301,MALAYSIA SPEC&VERSION S
MARK 48520-42291
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
WITH(ACTIVE STABILIZER SUSPENSION)
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48827BRACKET, FRONT STABILIZER, NO.2 RH
WITH(ACTIVE STABILIZER SUSPENSION)
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48828BRACKET, FRONT STABILIZER, NO.2 LH
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
WITH(ACTIVE STABILIZER SUSPENSION)
48829ABRACKET, FRONT STABILIZER, NO.1 LH
WITH(ACTIVE STABILIZER SUSPENSION)
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
9011908D06
main90119-08D06
9017810005
main90178-10005
9017810015
main90178-10015
9017914015
main90179-14015
30 parts on this diagram · 3 diagrams in section
