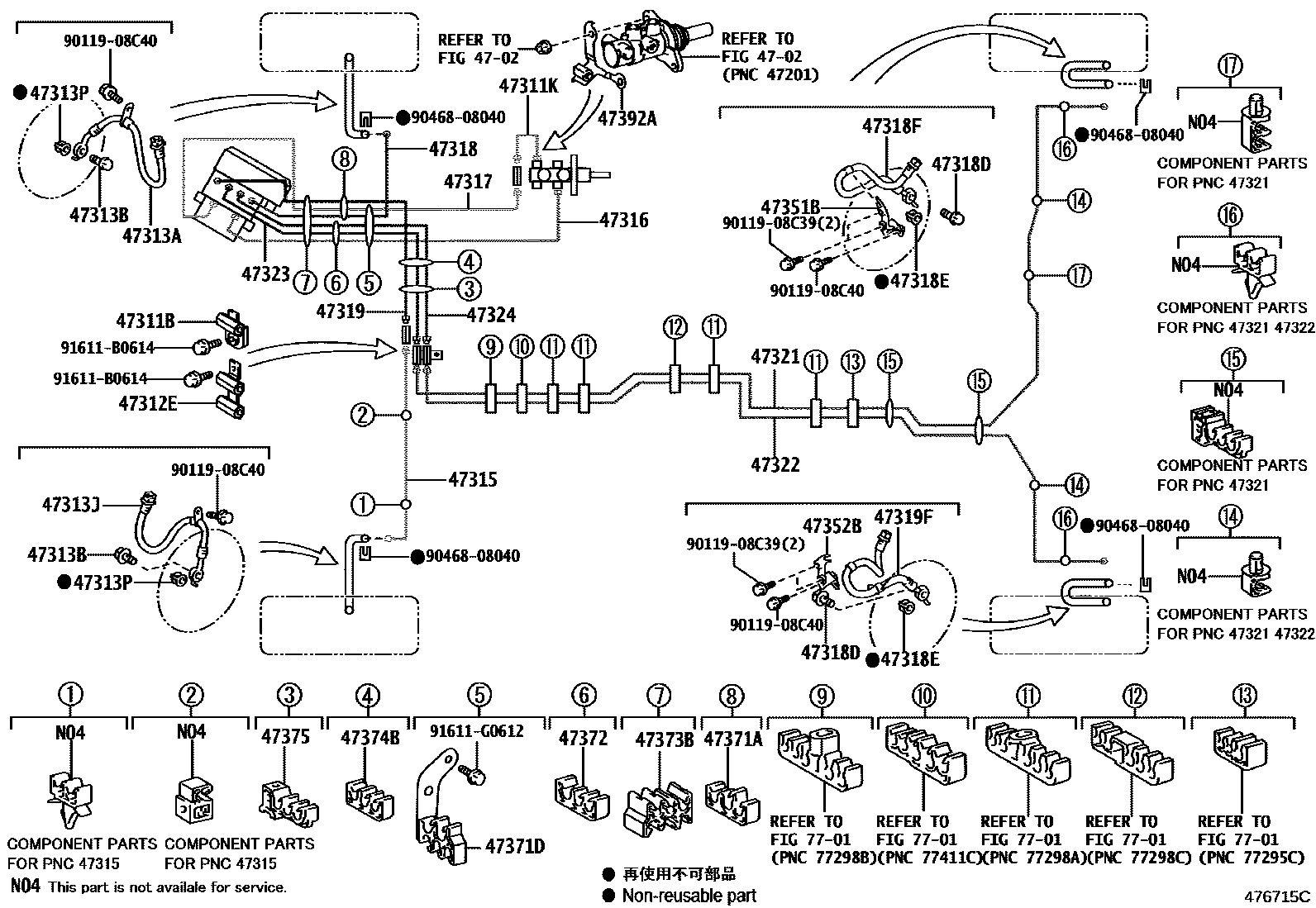

BRAKE TUBE & CLAMP

0001 1 0002 1W(PRECRASH SYSTEM) 0003 1 0004 1 0005 1 0006 1 0007 1

4702

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10213iAGL10,GGL15200812-201203

main90412-10261iGYL1#200903-201203

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-48040iAGL10,GGL15..LHD200812-201509

main47311-48050iAGL10,GGL15..RHD200812-201509

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10246iAGL10,GGL15,GYL1#200812-201203

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F79iAGL10,GGL15,GYL1#200812-201203

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAGL10,GGL15,GYL1#200812-201203

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F80iAGL10,GGL15,GYL1#200812-201203

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iAGL10,GGL15,GYL1#200812-201203

47315TUBE, FRONT BRAKE, NO.5

main47315-48180iAGL10,GGL15,GYL1#..RHD200812-201203

main47315-48190iAGL10,GGL15..LHD200812-201203

main47315-48200iGYL1#..LHD200903-201203

47316TUBE, FRONT BRAKE, NO.6

main47316-48260iAGL10,GGL15..RHD200812-201203

main47316-48270iAGL10,GGL15..LHD200812-201203

main47316-48290iGYL1#..RHD200903-201203

main47316-48300iGYL1#..LHD200903-201203

47317TUBE, FRONT BRAKE, NO.7

main47317-48260iAGL10,GGL15..RHD200812-201203

sub47317-48310

main47317-48270iAGL10,GGL15..LHD200812-201203

main47317-48290iGYL1#..RHD200903-201203

main47317-48300iGYL1#..LHD200903-201203

47318TUBE, FRONT BRAKE, NO.8

main47318-48170iAGL10,GGL15200812-201203

main47318-48180iGYL1#200903-201203

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAGL10,GGL15,GYL1#200812-201203

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iAGL10,GGL15,GYL1#200812-201203

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F78iAGL10,GGL15,GYL1#200812-201203

47319TUBE, FRONT BRAKE, NO.9

main47319-48240iAGL10,GGL15..RHD200812-201203

main47319-48250iAGL10,GGL15..LHD200812-201203

main47319-48270iGYL1#..RHD200903-201203

main47319-48280iGYL1#..LHD200903-201203

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F78iAGL10,GGL15,GYL1#200812-201203

47321TUBE, REAR BRAKE, NO.1

main47321-48110iAGL10,GGL15200812-201203

main47321-48120iGYL1#200903-201203

47322TUBE, REAR BRAKE, NO.2

main47322-48120iAGL10,GGL15200812-201203

main47322-48130iGYL1#200903-201203

47323TUBE, REAR BRAKE, NO.3

main47323-48270iAGL10,GGL15..RHD200812-201203

main47323-48280iAGL10,GGL15..LHD200812-201203

main47323-48300iGYL1#..RHD200903-201203

main47323-48310iGYL1#..LHD200903-201203

47324TUBE, REAR BRAKE, NO.4

main47324-48270iAGL10,GGL15..RHD200812-201203

main47324-48280iAGL10,GGL15..LHD200812-201203

main47324-48300iGYL1#..RHD200903-201203

main47324-48310iGYL1#..LHD200903-201203

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-48010iAGL10,GGL15,GYL1#200812-201203

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-48010iAGL10,GGL15,GYL1#200812-201203

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00880iGYL1#..LHD200903-201203

main90464-00919iAGL10,GGL15200812-201203

47371DCLAMP, BRAKE TUBE, NO.8

main90949-04045iAGL10,GGL15200812-201203

47372CLAMP, BRAKE TUBE, NO.2

main90464-00894iAGL10,GGL15200812-201203

main90949-01C85iGYL1#200903-201203

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D21iGYL1#..LHD200903-201203

main90949-01D36iGYL1#..RHD200903-201203

main90949-01D52iAGL10,GGL15200812-201203

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00857iAGL10,GGL15,GYL1#..RHD200812-201203

main90464-00904iGYL1#..LHD200903-201203

main90949-01D53iAGL10,GGL15..LHD200812-201203

47375CLAMP, BRAKE TUBE, NO.5

main90949-01C95iAGL10,GGL15..RHD200812-201203

main90949-01D50iAGL10,GGL15..LHD200812-201203

main90949-04033iGYL1#200903-201203

47392AWAY, BRAKE TUBE, NO.2

main47392-48010iAGL10,GGL15200812-201509

7701

9011908C39

main90119-08C39

9011908C40

main90119-08C40

9046808040

main90468-08040

91611B0614

main91611-B0614

91611G0612

main91611-G0612

36 parts on this diagram · 7 diagrams in section
