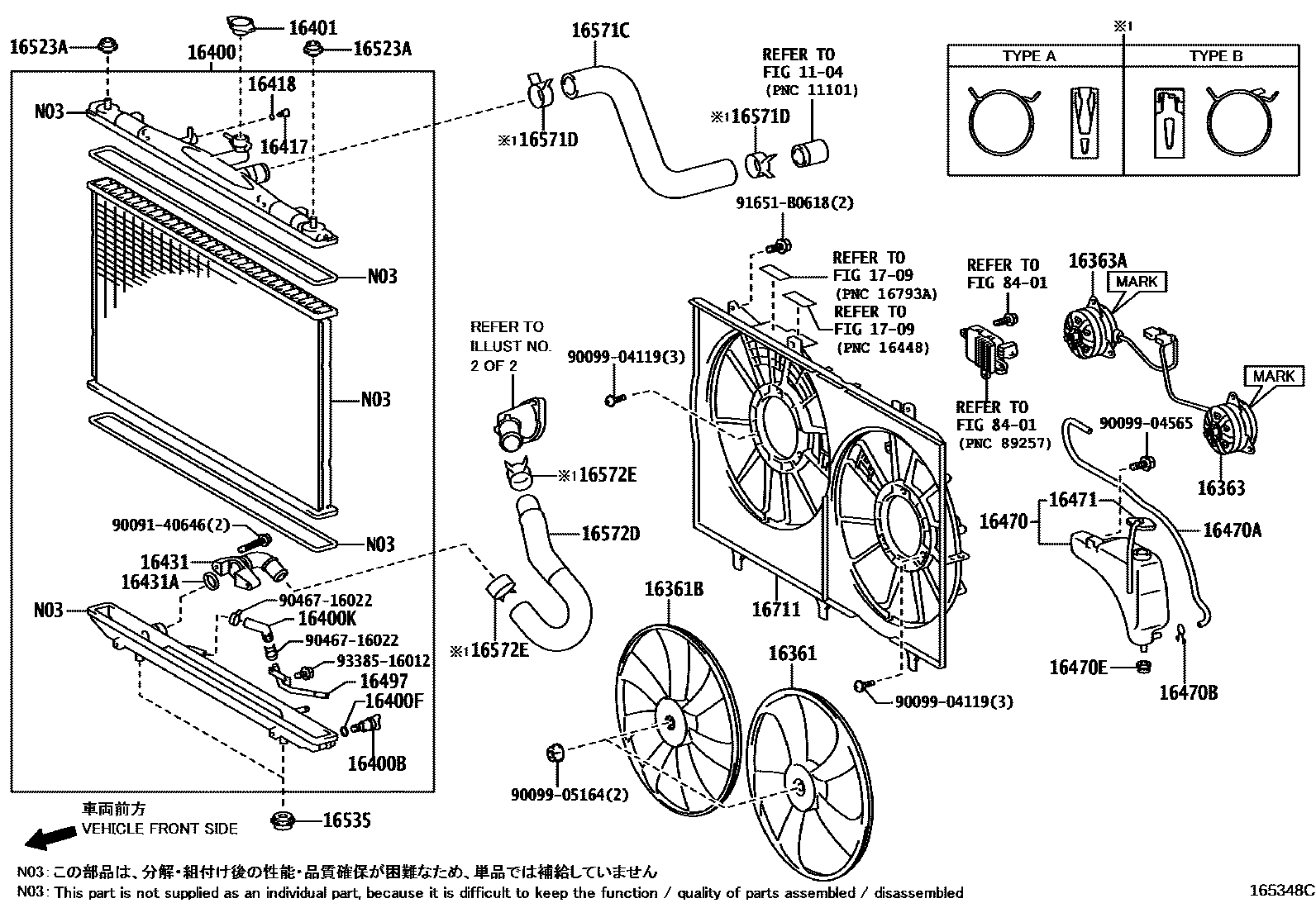

RADIATOR & WATER OUTLET
1104
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
MARK 16363-31260
MARK 16363-31261
MARK 16363-31331
MARK 16363-31380
MARK 16363-70060
16363AMOTOR, COOLING FAN, NO.2
MARK 16363-23050
MARK 16363-31160
MARK 16363-31250
MARK 16363-31390
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16400KHOSE, WATER, NO.1
16401CAP SUB-ASSY, RADIATOR
16417COCK
16431INLET, RADIATOR WATER
16431ARING, O(FOR RADIATOR WATER INLET)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16471CAP SUB-ASSY, RESERVE TANK
16497INLET SUB-ASSY
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16711SHROUD, FAN
1709
8401
9009140646
main90091-40646
9009904119
main90099-04119
9009904565
9009905164
9046716022
91651B0618
9338516012
36 parts on this diagram · 6 diagrams in section
