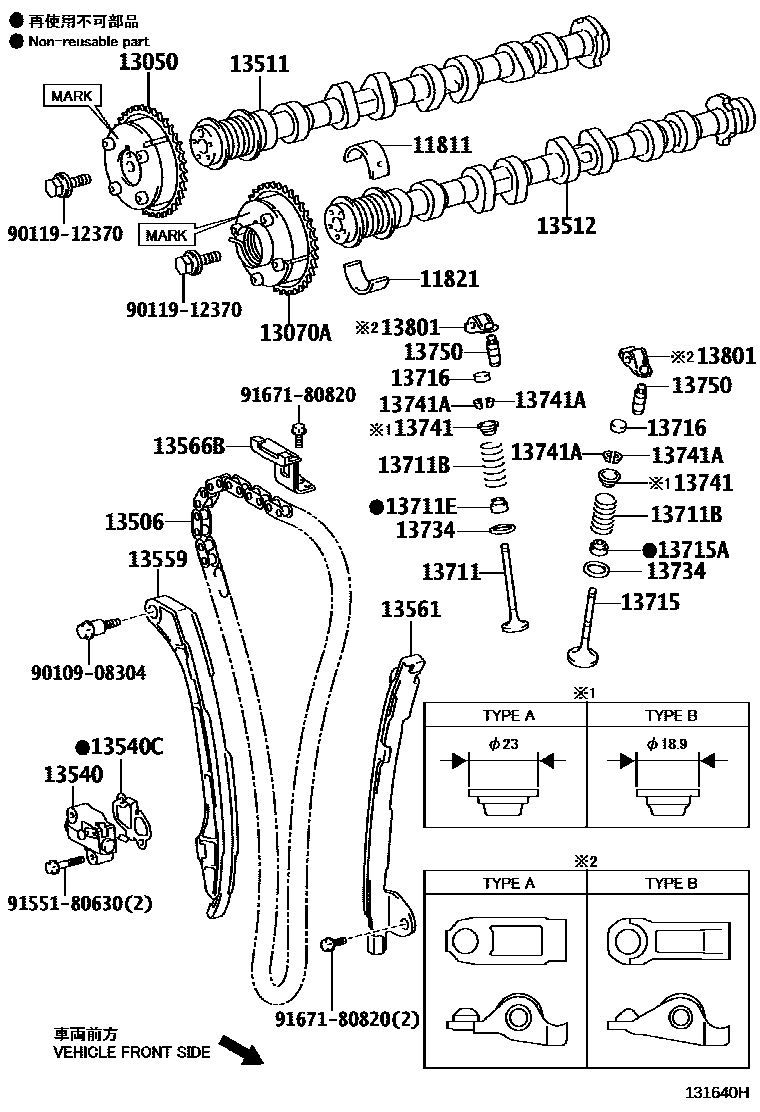

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
MARK 13050-36011
MARK 13050-36030
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
MARK 13070-36011
MARK 13070-36030
13506CHAIN SUB-ASSY
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711BSPRING, COMPRESSION(FOR INNER)
sub90501-34016
PNC 13801=TYPE B
PNC 13741=TYPE A
PNC 13741=TYPE B
PNC 13801=TYPE A
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
TYPE A:REFER ILLUST.
PNC 13801=TYPE A
PNC 13801=TYPE B
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
PNC 13801=TYPE A
PNC 13801=TYPE B
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
9010908304
main90109-08304
9011912370
main90119-12370
9155180630
main91551-80630
9167180820
main91671-80820
27 parts on this diagram · 3 diagrams in section
