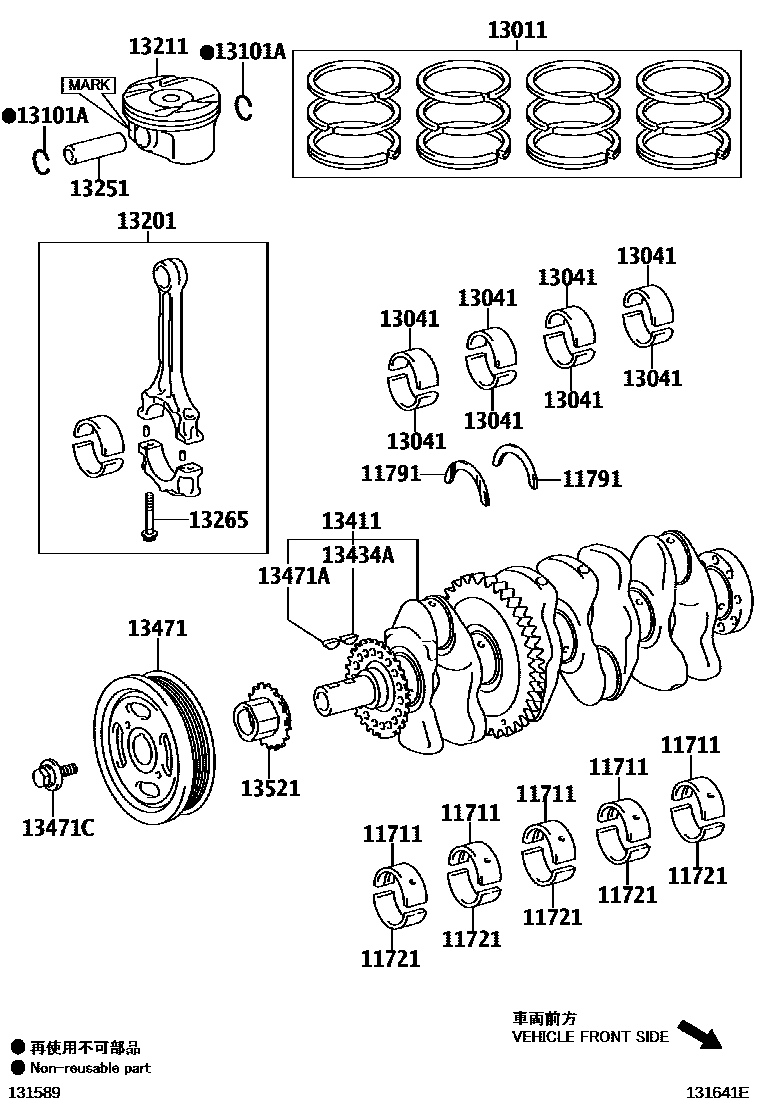

CRANKSHAFT & PISTON

Parts diagram
11711BEARING, CRANKSHAFT
main11071-0P030-01i200812-200906
MARK1,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-02i200812-200906
MARK2,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-03i200812-200906
MARK3,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-04i200812-200906
MARK4,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-05i200812-200906
MARK5,NO.2,(L):REFER R/M
sub11071-0P050
main11071-31031-01i200812-201203
MARK1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-01i201203-201502
MARK1,NO.2,REFER R/M
sub11071-31060
main11071-31031-02i200812-201203
MARK2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-02i201203-201502
MARK2,NO.2,REFER R/M
sub11071-31060
main11071-31031-03i201203-201502
MARK3,NO.2,REFER R/M
sub11071-31060
main11071-31031-03i200812-201203
MARK3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-04i200812-201203
MARK4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-04i201203-201502
MARK4,NO.2,REFER R/M
sub11071-31060
main11071-31031-05i200812-201203
MARK5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-05i201203-201502
MARK5,NO.2,REFER R/M
sub11071-31060
main11071-31060-01i201503
MARK 1,NO.2,REFER R/M
sub11071-31060
main11071-31060-02i201503
MARK 2,NO.2,REFER R/M
sub11071-31060
main11071-31060-03i201503
MARK 3,NO.2,REFER R/M
sub11071-31060
main11071-31060-04i201503
MARK 4,NO.2,REFER R/M
sub11071-31060
main11071-31060-05i201503
MARK 5,NO.2,REFER R/M
sub11071-31060
main11701-0P030-01i200812-200906
MARK1,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-02i200812-200906
MARK2,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-03i200812-200906
MARK3,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-04i200812-200906
MARK4,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-05i200812-200906
MARK5,NO.1,(L):REFER R/M
sub11701-0P050
main11701-31061-01i200812-200902
MARK1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-02i200812-200902
MARK2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-03i200812-200902
MARK3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-04i200812-200902
MARK4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-05i200812-200902
MARK5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-01i201203-201502
MARK 1,NO.1,REFER R/M
sub11701-31100
main11701-31090-01i200902-201203
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-02i201203-201502
MARK 2,NO.1,REFER R/M
sub11701-31100
main11701-31090-02i200902-201203
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-03i201203-201502
MARK 3,NO.1,REFER R/M
sub11701-31100
main11701-31090-03i200902-201203
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-04i201203-201502
MARK 4,NO.1,REFER R/M
sub11701-31100
main11701-31090-04i200902-201203
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-05i200902-201203
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-05i201203-201502
MARK 5,NO.1,REFER R/M
sub11701-31100
main11701-31100-01i201503
MARK 1,NO.1,REFER R/M
sub11701-31100
main11701-31100-02i201503
MARK 2,NO.1,REFER R/M
sub11701-31100
main11701-31100-03i201503
MARK 3,NO.1,REFER R/M
sub11701-31100
main11701-31100-04i201503
MARK 4,NO.1,REFER R/M
sub11701-31100
main11701-31100-05i201503
MARK 5,NO.1,REFER R/M
sub11701-31100
main11711-36020-01i201008-201202
MARK 1,REFER REPAIR MANUAL
main11711-36020-02i201008-201202
MARK 2,REFER REPAIR MANUAL
main11711-36020-03i201008-201202
MARK 3,REFER REPAIR MANUAL
main11711-36020-04i201008-201202
MARK 4,REFER REPAIR MANUAL
main11711-36050-01i201202-201203
MARK 1,REFER REPAIR MANUAL
main11711-36050-02i201202-201203
MARK 2,REFER REPAIR MANUAL
main11711-36050-03i201202-201203
MARK 3,REFER REPAIR MANUAL
main11711-36050-04i201202-201203
MARK 4,REFER REPAIR MANUAL
11721BEARING, CRANKSHAFT, NO.2
main11721-36020-01i201008-201202
MARK 1,REFER REPAIR MANUAL
main11721-36020-02i201008-201202
MARK 2,REFER REPAIR MANUAL
main11721-36020-03i201008-201202
MARK 3,REFER REPAIR MANUAL
main11721-36020-04i201008-201202
MARK 4,REFER REPAIR MANUAL
main11721-36050-01i201202-201203
MARK 1,REFER REPAIR MANUAL
main11721-36050-02i201202-201203
MARK 2,REFER REPAIR MANUAL
main11721-36050-03i201202-201203
MARK 3,REFER REPAIR MANUAL
main11721-36050-04i201202-201203
MARK 4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-36010i201008-201408
STD
main11791-36020i201408
STD
13011RING SET, PISTON
main13011-31150i200812-201411
STD
sub13011-31151
main13011-31151i201412
STD
main13011-31160i200903-201411
STD
sub13011-31161
main13011-31161i201412
STD
main13011-36020i201008-201212
STD
sub13011-36060
main13011-36060i201212-201401
STD
sub13011-36061
main13011-36061i201402-201412
STD
main13011-36140i201412
STD
sub13011-36180
13041BEARING, CONNECTING ROD
main13041-0P040-01i200812-200906
MARK1,(L):REFER R/M
sub13041-0P080
main13041-0P040-02i200812-200906
MARK2,(L):REFER R/M
sub13041-0P080
main13041-0P040-03i200812-200906
MARK3,(L):REFER R/M
sub13041-0P080
main13041-0P040-04i200812-200906
MARK4,(L):REFER R/M
sub13041-0P080
main13041-31070-01i201203-201502
MARK 1,REFER R/M
sub13041-31100
main13041-31070-01i200812-201203
MARK1,(J):REFER R/M
sub13041-31100
main13041-31070-02i201203-201502
MARK 2,REFER R/M
sub13041-31100
main13041-31070-02i200812-201203
MARK2,(J):REFER R/M
sub13041-31100
main13041-31070-03i200812-201203
MARK3,(J):REFER R/M
sub13041-31100
main13041-31070-03i201203-201502
MARK 3,REFER R/M
sub13041-31100
main13041-31070-04i201203-201502
MARK 4,REFER R/M
sub13041-31100
main13041-31070-04i200812-201203
MARK4,(J):REFER R/M
sub13041-31100
main13041-31100-01i201503-201506
MARK 1,REFER R/M
main13041-31100-02i201503-201506
MARK 2,REFER R/M
main13041-31100-03i201503-201506
MARK 3,REFER R/M
main13041-31100-04i201503-201506
MARK 4,REFER R/M
main13041-31110-01i201506
MARK 1,REFER R/M
main13041-31110-02i201506
MARK 2,REFER R/M
main13041-31110-03i201506
MARK 3,REFER R/M
main13041-31110-04i201506
MARK 4,REFER R/M
main13281-36020-01i201008-201312
MARK 1,REFER REPAIR MANUAL
sub13281-36021
main13281-36020-02i201008-201312
MARK 2,REFER REPAIR MANUAL
sub13281-36021
main13281-36020-03i201008-201312
MARK 3,REFER REPAIR MANUAL
sub13281-36021
main13281-36021-01i201401
MARK 1,REFER REPAIR MANUAL
main13281-36021-02i201401
MARK 2,REFER REPAIR MANUAL
main13281-36021-03i201401
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
main13101-31091i200812-200906
STD
sub13101-31092
main13101-31092-A0i200906-201203
STD,MARK A,REFER REPAIR MANUAL
sub13101-31092
main13101-31092-B0i200906-201203
STD,MARK B,REFER REPAIR MANUAL
sub13101-31092
main13101-31092-C0i200906-201203
STD,MARK C,REFER REPAIR MANUAL
sub13101-31092
main13101-31110-A0i200903-201203
STD,MARK A,REFER REPAIR MANUAL
sub13101-31110
main13101-31110-B0i200903-201203
STD,MARK B,REFER REPAIR MANUAL
sub13101-31110
main13101-31110-C0i200903-201203
STD,MARK C,REFER REPAIR MANUAL
sub13101-31110
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200812-201203
13201ROD SUB-ASSY, CONNECTING
main13201-39135i200812-201203
sub13201-39137
main13201-39135-A0i201203-201503
MARK A,REFER REPAIR MANUAL
sub13201-39135
sub13201-39137
main13201-39135-B0i201203-201503
MARK B,REFER REPAIR MANUAL
sub13201-39135
sub13201-39137
main13201-39135-C0i201203-201503
MARK C,REFER REPAIR MANUAL
sub13201-39135
sub13201-39137
main13201-39137-A0i201503-201506
MARK A,REFER REPAIR MANUAL
main13201-39137-B0i201503-201506
MARK B,REFER REPAIR MANUAL
main13201-39137-C0i201503-201506
MARK C,REFER REPAIR MANUAL
main13201-39225-A0i201008-201401
MARK A,REFER REPAIR MANUAL
sub13201-39226
main13201-39225-B0i201008-201401
MARK B,REFER REPAIR MANUAL
sub13201-39226
main13201-39225-C0i201008-201401
MARK C,REFER REPAIR MANUAL
sub13201-39226
main13201-39226-A0i201401
MARK A,REFER REPAIR MANUAL
main13201-39226-B0i201401
MARK B,REFER REPAIR MANUAL
main13201-39226-C0i201401
MARK C,REFER REPAIR MANUAL
main13201-39305-A0i201506
MARK A,REFER REPAIR MANUAL
main13201-39305-B0i201506
MARK B,REFER REPAIR MANUAL
main13201-39305-C0i201506
MARK C,REFER REPAIR MANUAL
13211PISTON
main13211-36040-A0i201008-201011
MARK A,REFER REPAIR MANUAL
sub13211-36041
main13211-36040-B0i201008-201011
MARK B,REFER REPAIR MANUAL
sub13211-36041
main13211-36040-C0i201008-201011
MARK C,REFER REPAIR MANUAL
sub13211-36041
main13211-36041-A0i201203-201412
MARK A,MARK 36041,*RRM
main13211-36041-A0i201011-201203
MARK A,REFER REPAIR MANUAL
main13211-36041-B0i201203-201412
MARK B,MARK 36041,*RRM
main13211-36041-B0i201011-201203
MARK B,REFER REPAIR MANUAL
main13211-36041-C0i201203-201412
MARK C,MARK 36041,*RRM
main13211-36041-C0i201011-201203
MARK C,REFER REPAIR MANUAL
main13211-36140-A0i201412-201509
MARK A,MARK 36140,*RRM
main13211-36140-B0i201412-201509
MARK B,MARK 36140,*RRM
main13211-36140-C0i201412-201509
MARK C,MARK 36140,*RRM
13251PIN, PISTON
main13251-28020-A0i201008-201203
MARK A,REFER REPAIR MANUAL
main13251-28020-B0i201008-201203
MARK B,REFER REPAIR MANUAL
main13251-28020-C0i201008-201203
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
main13265-28010i200812-201203
sub13265-28020
main13265-31020i201008-201203
13411CRANKSHAFT
main13401-31040i200812-201409
sub13401-31041
main13401-31041i201410
sub13401-31021
main13401-36020i201008-201202
sub13401-36021
main13401-36021i201202-201203
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i201008-201203
13471PULLEY, CRANKSHAFT
main13470-31030i200812-201203
main13470-36010i201008-201203
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i201008-201203
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200812-201412
main90119-16020i201008-201203
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-31041i200812-201203
main13521-36010i201008-201203
