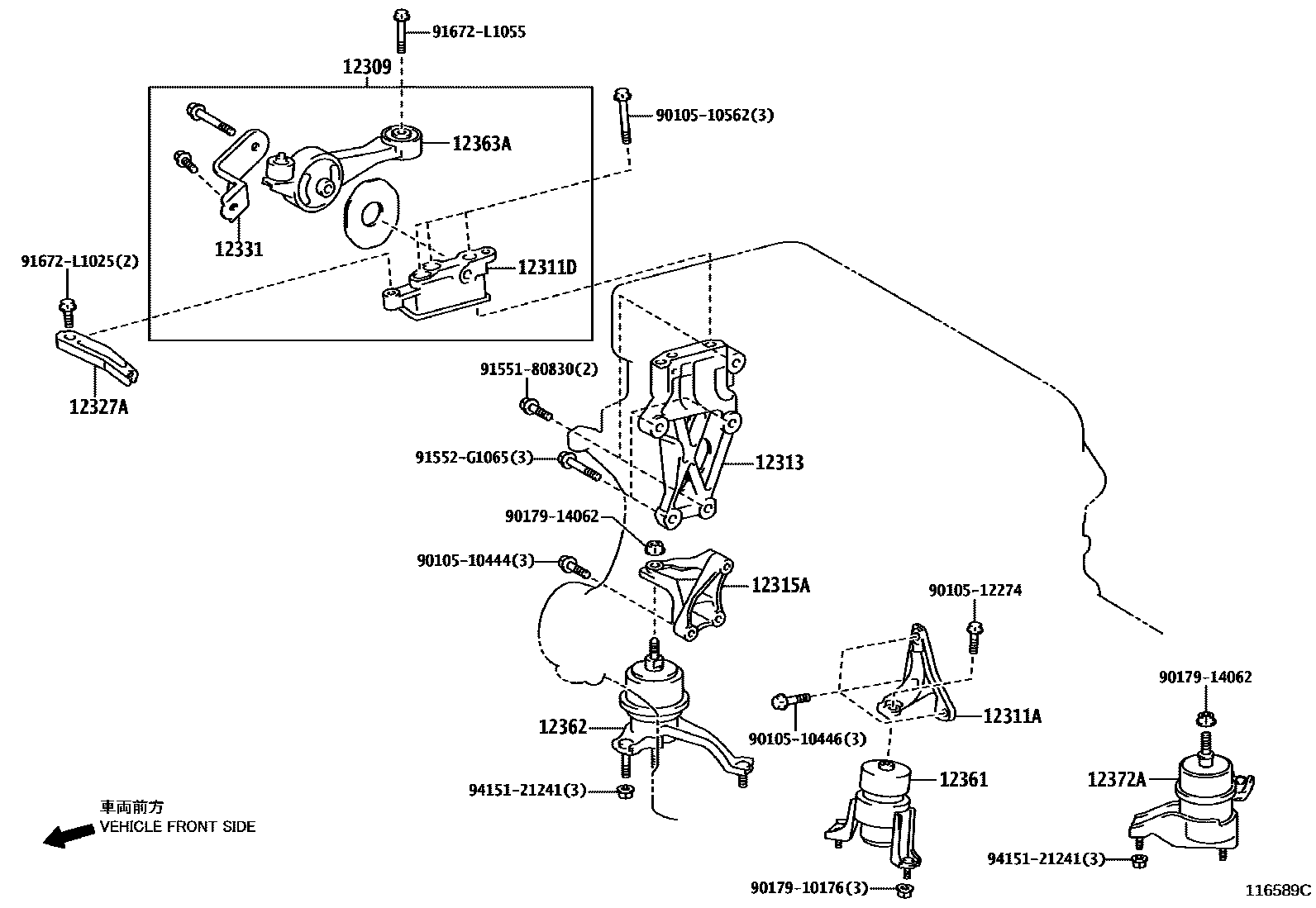

MOUNTING

0001 1 0002 1 0003 1 0004 1

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-36060i1ARFE..AGL10201008-201102

sub12309-36061

main12309-36061i1ARFE..AGL10201103-201203

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-31060i2GRFE..GGL15200812-201203

main12311-31110i2GRFXE..GYL1#200903-201203

main12311-31140i2GRFE..GGL15201203

main12311-36020i1ARFE..AGL10201008-201203

12311DBRACKET, ENGINE MOUNTING

main12313-36020i1ARFE..AGL10201008-201203

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-31050i2GR#..GGL15,GYL1#200812-201203

main12313-36010i1ARFE..AGL10201008-201203

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31091i2GR#..GGL15,GYL1#200812-201203

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12319-31010i2GR#..GGL15,GYL1#200812-201203

main12319-36010i1ARFE..AGL10201008-201203

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-31010i2GRFXE..GYL1#200903-201502

NO.2

sub12327-31120

main12327-31020i2GRFXE..GYL1#200903-201203

NO.1

main12327-31060i2GRFE..GGL15200812-201004

NO.1

main12327-31070i2GRFE..GGL15200812-201203

NO.2

main12327-31090i2GRFE..GGL15201203

NO.2

main12327-31120i2GRFXE..GYL1#201503

NO.2

main12327-36010i1ARFE..AGL10201008-201203

12331STAY, ENGINE MOUNTING, NO.3 RH

main12331-31010i2GR#..GGL15,GYL1#200812-201203

main12331-36010i1ARFE..AGL10201008-201203

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-20230i2GRFXE..GYL1#200903-200911

sub12361-20231

main12361-20231i2GRFXE..GYL1#200912-201005

main12361-20232i2GRFXE..GYL1#201005-201203

main12361-36032i1ARFE..AGL10201008-201203

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-31040i2GR#..GGL15,GYL1#200812-201301

main12362-31090i2GR#..GGL15,GYL1#201301

main12362-36040i1ARFE..AGL10201008-201203

12363AROD, ENGINE MOVING CONTROL

main12363-31060i2GRFE..GGL15200812-201203

main12363-31070i2GRFXE..GYL1#200903-201203

main12363-36060i1ARFE..AGL10201008-201102

sub12363-36061

main12363-36061i1ARFE..AGL10201103-201203

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28200i1ARFE..AGL10201008-201203

main12372-31010i2GRFE..GGL15200812-201203

main12372-31050i2GRFXE..GYL1#200903-201203

9010510444

main90105-10444

9010510446

main90105-10446

9010510562

main90105-10562

9010512274

main90105-12274

9017910176

main90179-10176

9017914062

main90179-14062

9155180830

main91551-80830

91552G1065

main91552-G1065

91672L1025

main91672-L1025

91672L1055

main91672-L1055

9415121241

main94151-21241

23 parts on this diagram · 4 diagrams in section
