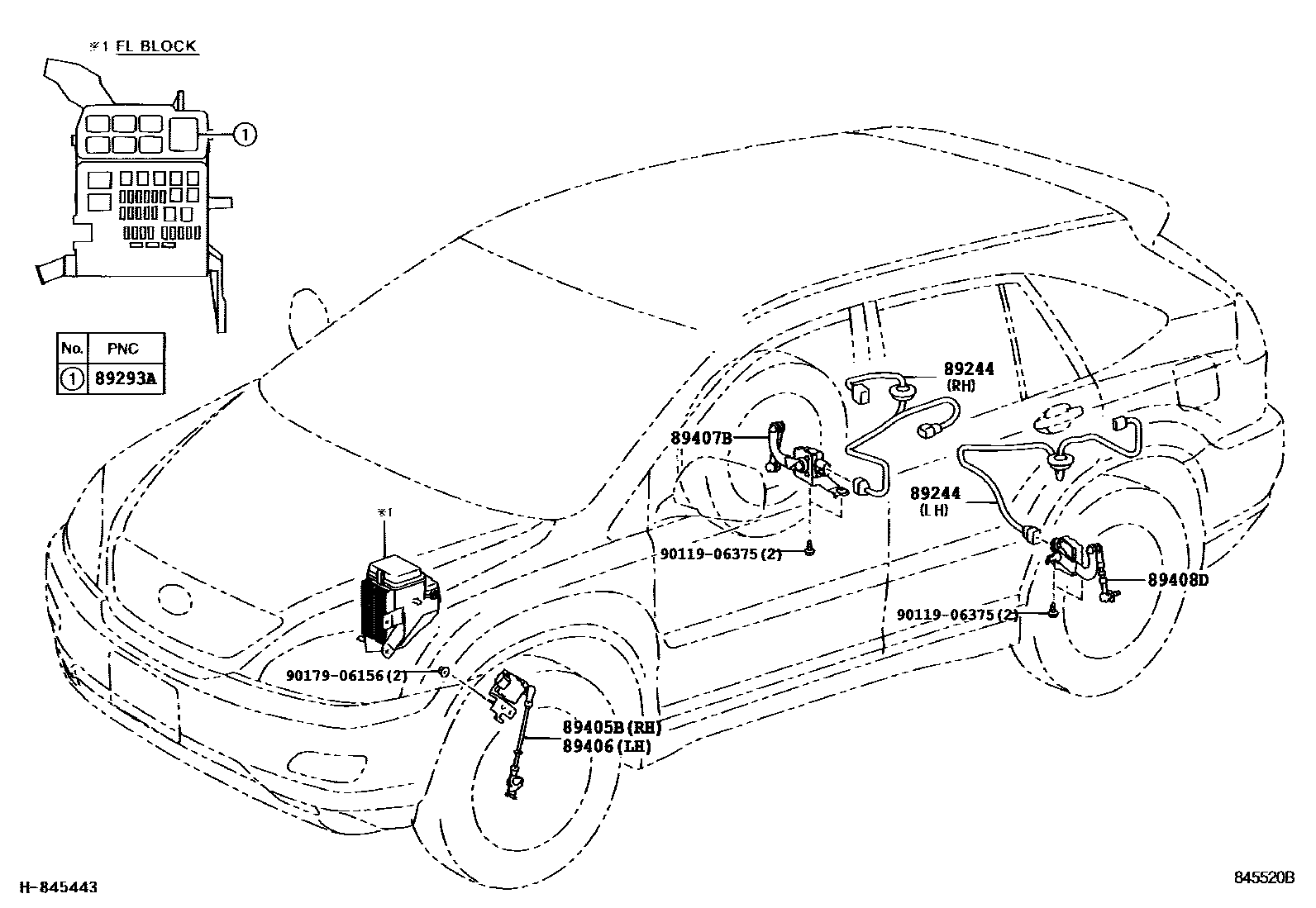

ELECTRONIC MODULATED SUSPENSION

0001 1RELAY & SENSOR & CONTROL WIRI0003 1SWITCH & ECU

89244WIRE, ABSORBER CONTROL, REAR

main89244-48030iMCU35200302-200601

SUSPENSION-AIR SUSPENSION,RH

main89244-48040iMCU35200302-200601

SUSPENSION-AIR SUSPENSION,LH

89293COMPUTER, SUSPENSION CONTROL

main89293-48011iMCU35..RHD200302-200401

SUSPENSION-AIR SUSPENSION

main89293-48012iMCU35..RHD200401-200410

SUSPENSION-AIR SUSPENSION

main89293-48013iGSU35..RHD..EUR200601-200712

SUSPENSION-AIR SUSPENSION

main89293-48014iGSU35..RHD..EUR200801-200812

SUSPENSION-AIR SUSPENSION

main89293-48021iMCU35..LHD200302-200401

SUSPENSION-AIR SUSPENSION

main89293-48022iMCU35..LHD200401-200410

SUSPENSION-AIR SUSPENSION

main89293-48023iGSU35..LHD..EUR200601-200712

SUSPENSION-AIR SUSPENSION

main89293-48024iGSU35..LHD..EUR200801-200812

SUSPENSION-AIR SUSPENSION

89293ARELAY, SUSPENSION CONTROL

main90987-02025iMCU35200302-200601

SUSPENSION-AIR SUSPENSION

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-48020iMCU35200302-200601

SUSPENSION-AIR SUSPENSION

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-48020iMCU35200302-200601

SUSPENSION-AIR SUSPENSION

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-48030iMCU35200302-200601

SUSPENSION-AIR SUSPENSION

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-48020iMCU35200302-200601

SUSPENSION-AIR SUSPENSION

9011906375

main90119-06375

9017906156

main90179-06156

9 parts on this diagram · 2 diagrams in section
