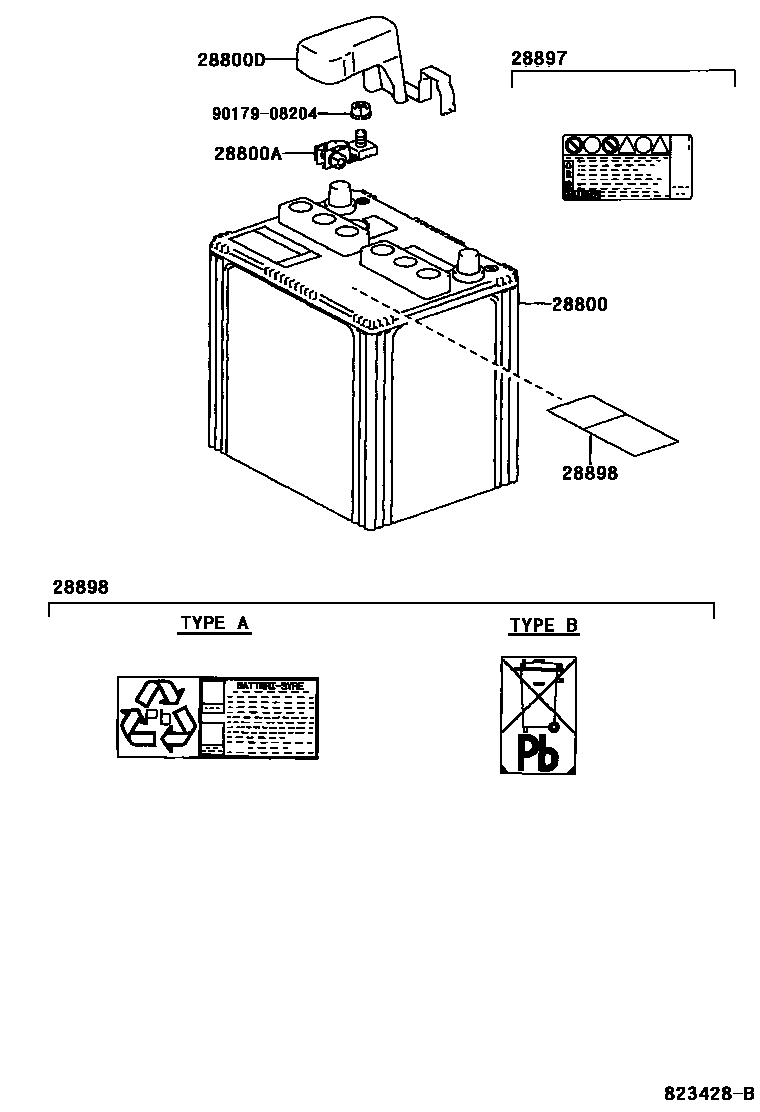

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17121i2GRFE..GSU35200601-200812

80D26L,FURUKAWA

sub28800-38080

main28800-54020i2GRFE..GSU35200601-200812

80D26L,YUASA

sub28800-67102

main28800-64132i1MZFE,3MZFE..MCU3#200302-200601

80D26L

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1MZFE,3MZFE..MCU3#200302-200812

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-48020i1MZFE,3MZFE..MCU3#200302-200812

28897PLATE, BATTERY CAUTION

main28897-50020i1MZFE..MCU35200302-200601

28898PLATE, BATTERY

main28898-46020i1MZFE..MCU35200302-200601

TYPE B:REFER ILLUST.

main28898-46020i2GRFE..GSU35..EUR200601-200812

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section
