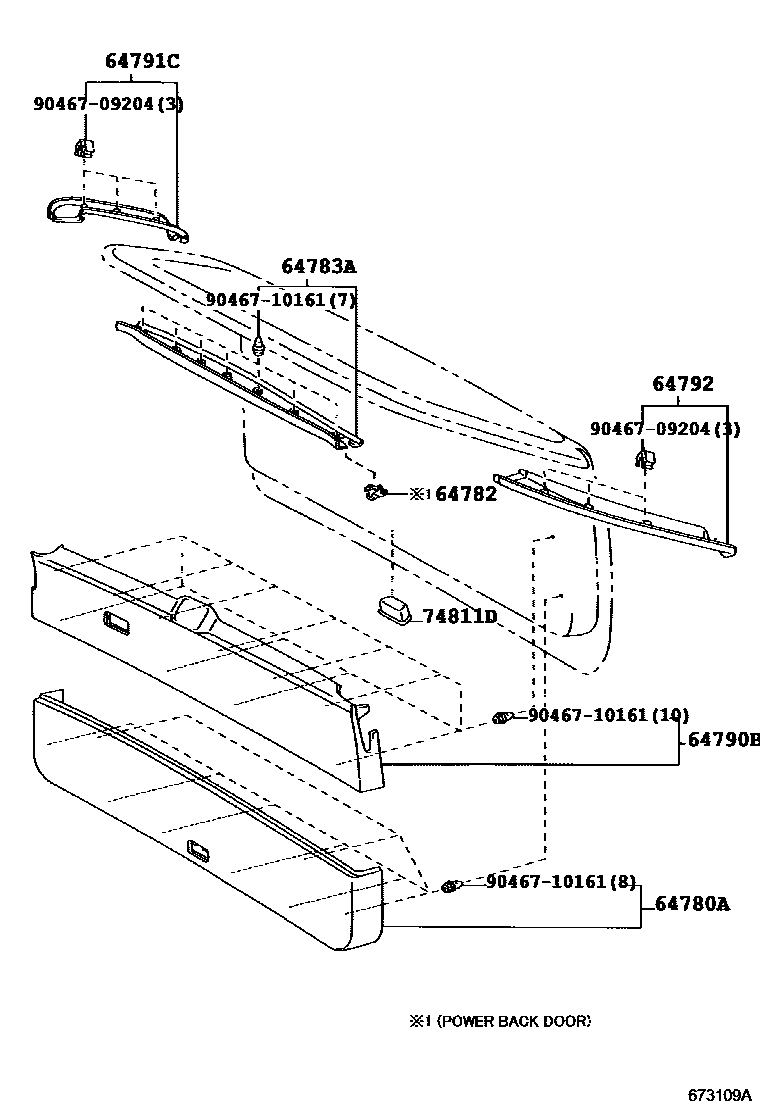

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780APANEL ASSY, BACK DOOR TRIM

main64780-48050-A0iGSU35200302-200812

IVORY,TRIM0#

main64780-48050-B1iMCU3#200302-200812

LT.GRAY,TRIM1#

main64780-48050-C1iGSU35200302-200812

BLACK,TRIM2#

64782BOARD, BACK DOOR TRIM, LH

main64782-48010¥1,350

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-48040-A0iMCU3#200302-200601

IVORY,TRIM0#

sub64783-48040¥10,000

sub64783-48041¥9,700

main64783-48040-A1iGSU35200601-200609

IVORY,TRIM0#

sub64783-48040¥10,000

sub64783-48041¥9,700

main64783-48040-B0iMCU3#200302-200601

LT.GRAY,TRIM1#,2#

sub64783-48040¥10,000

sub64783-48041¥9,700

main64783-48040-B1iGSU35200601-200609

LT. GRAY,TRIM1#,2#

sub64783-48040¥10,000

sub64783-48041¥9,700

main64783-48041-A1iGSU35200610-200812

IVORY,TRIM0#

sub64783-48042¥9,700

main64783-48041-B1iGSU35200610-200812

LT. GRAY,TRIM1#,2#

sub64783-48042¥9,700

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-48030-A1iMCU3#200302-200609

IVORY,TRIM0#

sub64790-48031¥7,600

main64790-48030-B1iGSU35200302-200609

LT.GRAY,TRIM1#,2#

sub64790-48031¥7,600

main64790-48031-A1iGSU35200610-200812

IVORY,TRIM0#

main64790-48031-B1iGSU35200610-200812

LT.GRAY,TRIM1#,2#

64791CCOVER, BACK DOOR TRIM, RH

main64791-48030-A0iMCU3#200302-200601

IVORY,TRIM0#

sub64791-48030¥4,010

sub64791-48031¥4,020

main64791-48030-A1iGSU35200601-200609

IVORY,TRIM0#

sub64791-48030¥4,010

sub64791-48031¥4,020

main64791-48030-B0iMCU3#200302-200601

LT.GRAY,TRIM1#,2#

sub64791-48030¥4,010

sub64791-48031¥4,020

main64791-48030-B1iGSU35200601-200609

LT. GRAY,TRIM1#,2#

sub64791-48030¥4,010

sub64791-48031¥4,020

main64791-48031-A1iGSU35200610-200812

IVORY,TRIM0#

sub64791-48032¥4,020

main64791-48031-B1iGSU35200610-200812

LT. GRAY,TRIM1#,2#

sub64791-48032¥4,020

64792COVER, BACK DOOR TRIM, LH

main64792-48030-A0iMCU3#200302-200601

IVORY,TRIM0#

sub64792-48030¥4,010

sub64792-48031¥4,020

main64792-48030-A1iGSU35200601-200609

IVORY,TRIM0#

sub64792-48030¥4,010

sub64792-48031¥4,020

main64792-48030-B0iMCU3#200302-200601

LT.GRAY,TRIM1#,2#

sub64792-48030¥4,010

sub64792-48031¥4,020

main64792-48030-B1iGSU35200601-200609

LT. GRAY,TRIM1#,2#

sub64792-48030¥4,010

sub64792-48031¥4,020

main64792-48031-A1iGSU35200610-200812

IVORY,TRIM0#

sub64792-48032¥4,020

main64792-48031-B1iGSU35200610-200812

LT. GRAY,TRIM1#,2#

sub64792-48032¥4,020

74811DHANDLE, DOOR PULL

main74811-13010-C0iMCU3#200302-200601

BLACK,TRIM0#,1#,2#

sub74811-13010¥940

main74811-13010-C0iGSU35200601-200812

BLACK

sub74811-13010¥940

9046709204

main90467-09204¥110

9046710161

main90467-10161¥90

9 parts on this diagram · 2 diagrams in section
