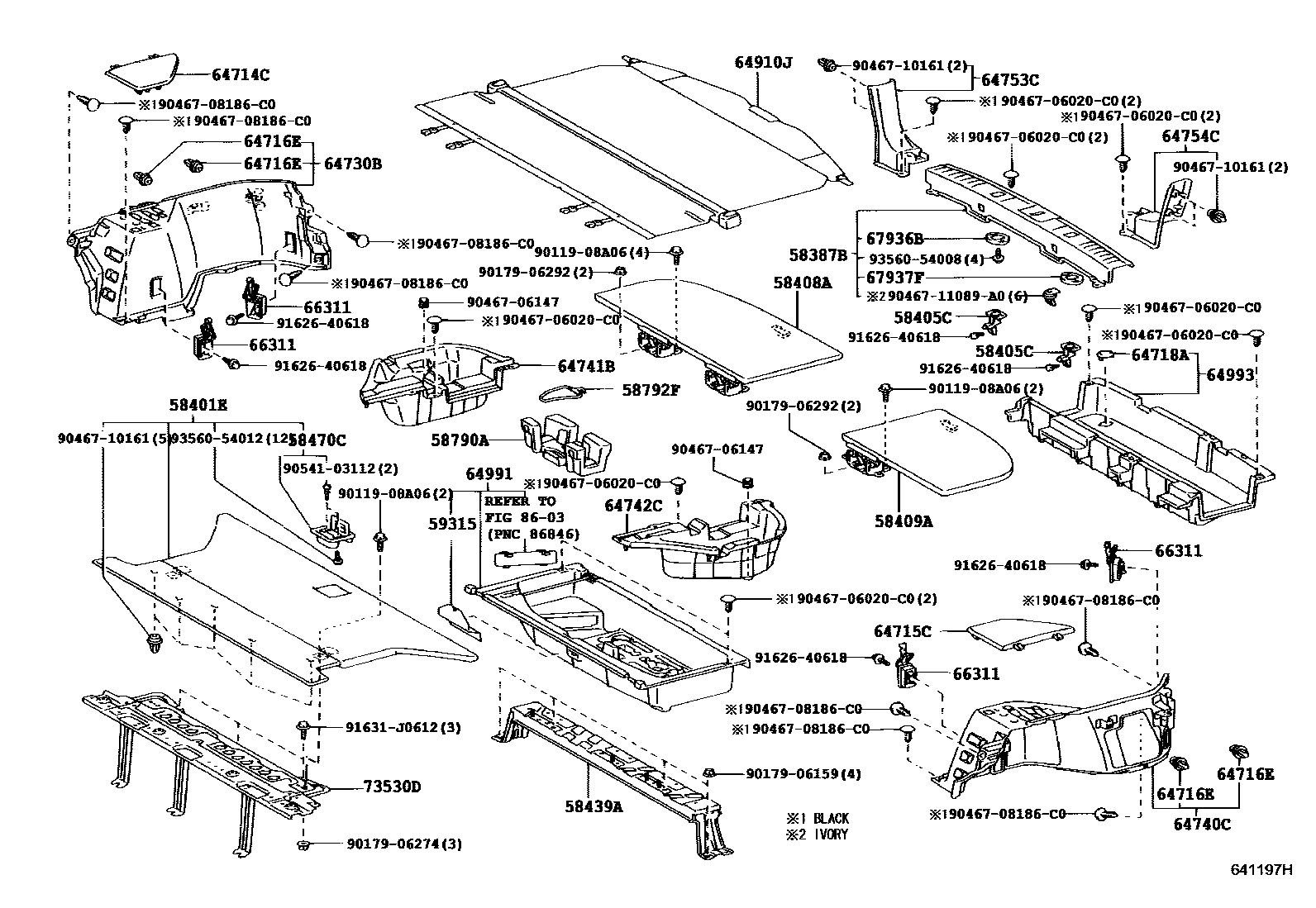

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58401EBOARD SUB-ASSY, DECK
58405CLOCK SUB-ASSY, DECK BOARD
58408ABOARD SUB-ASSY, DECK, NO.2
58409ABOARD SUB-ASSY, DECK, NO.3
58439ACHECK, DECK BOARD, NO.1
58470CHANDLE ASSY, DECK BOARD
58790ACARRIER ASSY, JACK
58792FSUPPORT, JACK CARRIER
59315COVER, REAR FLOOR BOX
64714CCOVER, DECK SIDE TRIM, RH
64715CCOVER, DECK SIDE TRIM, LH
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
64730BPANEL ASSY, DECK TRIM SIDE, RH
64740CPANEL ASSY, DECK TRIM SIDE, LH
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64753CPLATE, REAR FLOOR FINISH SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64754CPLATE, REAR FLOOR FINISH SIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64910JCOVER ASSY, TONNEAU
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64991BOX, DECK FLOOR, FRONT
64993BOX, DECK FLOOR, REAR
66311HOOK, ROPE
67936BCOVER, BACK DOOR SCUFF SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
67937FCOVER, BACK DOOR SCUFF SIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
73530DPANEL ASSY, REAR SEAT SUB FLOOR
8603
9011908A06
9017906159
9017906274
9017906292
9046706020C0
main90467-06020C0
9046706147
9046708186C0
main90467-08186C0
9046710161
9046711089A0
main90467-11089A0
9054103112
9162640618
91631J0612
9356054008
9356054012
42 parts on this diagram · 1 diagram in section
