SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625PPANEL, REAR BODY REAR SIDE CORNER, RH
61626PPANEL, REAR BODY REAR SIDE CORNER, LH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61637EBRACKET, QUARTER WHEEL HOUSE
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61716AEXTENSION, ROOF SIDE, INNER UPPER LH
61716CBRACKET, ROOF SIDE, LH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61724AREINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61824CPAD, NOISE SHUTTER, NO.1
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61826CPAD, NOISE SHUTTER, NO.3
61848ARETAINER, QUARTER PANEL, LH
63148GREINFORCEMENT, ROOF PANEL SIDE
63149JREINFORCEMENT, ROOF PANEL SIDE, LH
66383BRACKET, ROPE HOOK BAR, NO.1 RH
66383ABRACKET, ROPE HOOK BAR, NO.1 LH
75865GPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866FPROTECTOR, ROCKER PANEL MOULDING, NO.6
7701
9011906442
main90119-06442
9011906767
main90119-06767
9011906869
main90119-06869
9011908516
main90119-08516
9015960498
main90159-60498
9017806011
main90178-06011
9017910015
main90179-10015
9018906006
main90189-06006
9018906013
main90189-06013

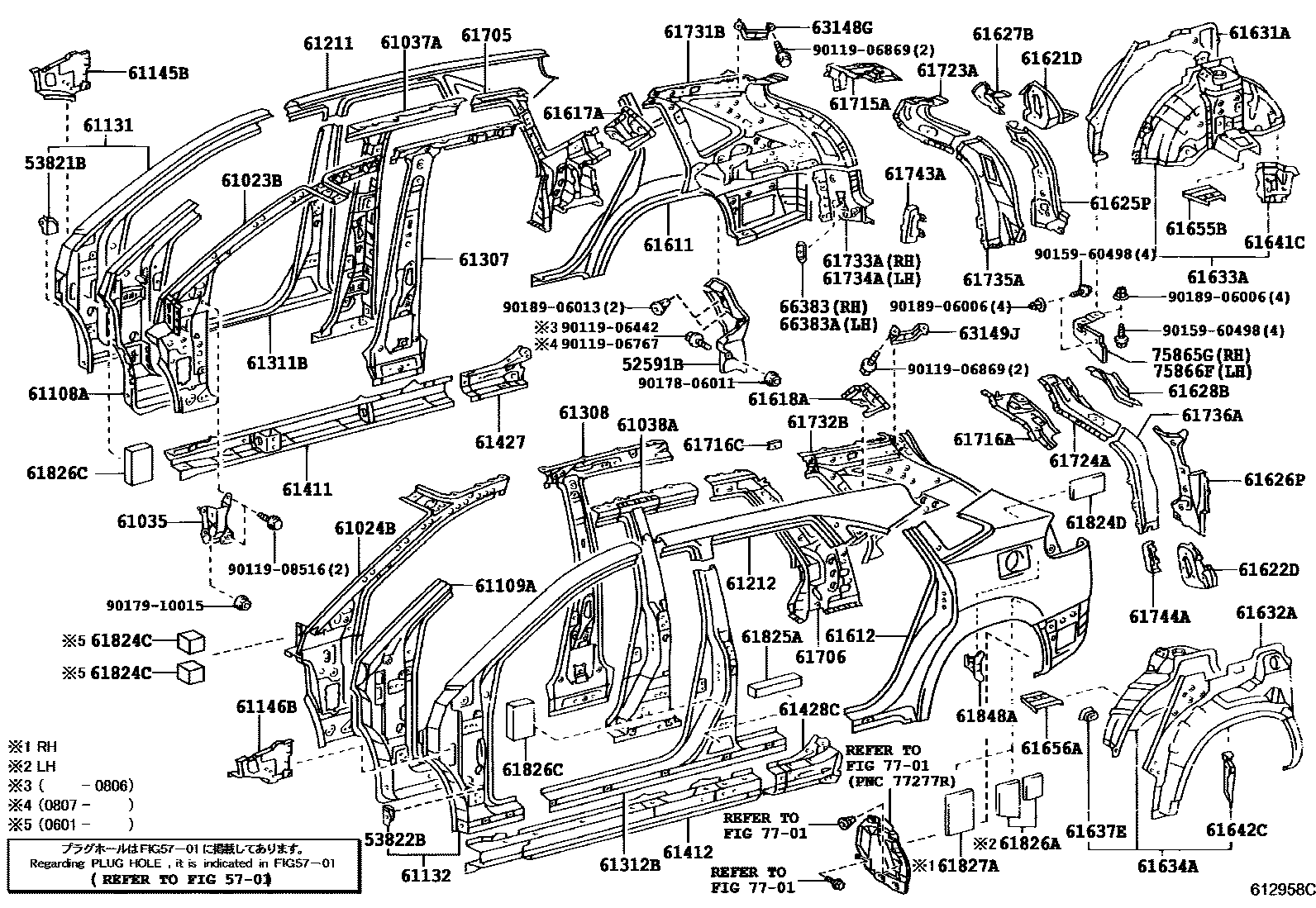

82 parts on this diagram · 2 diagrams in section
