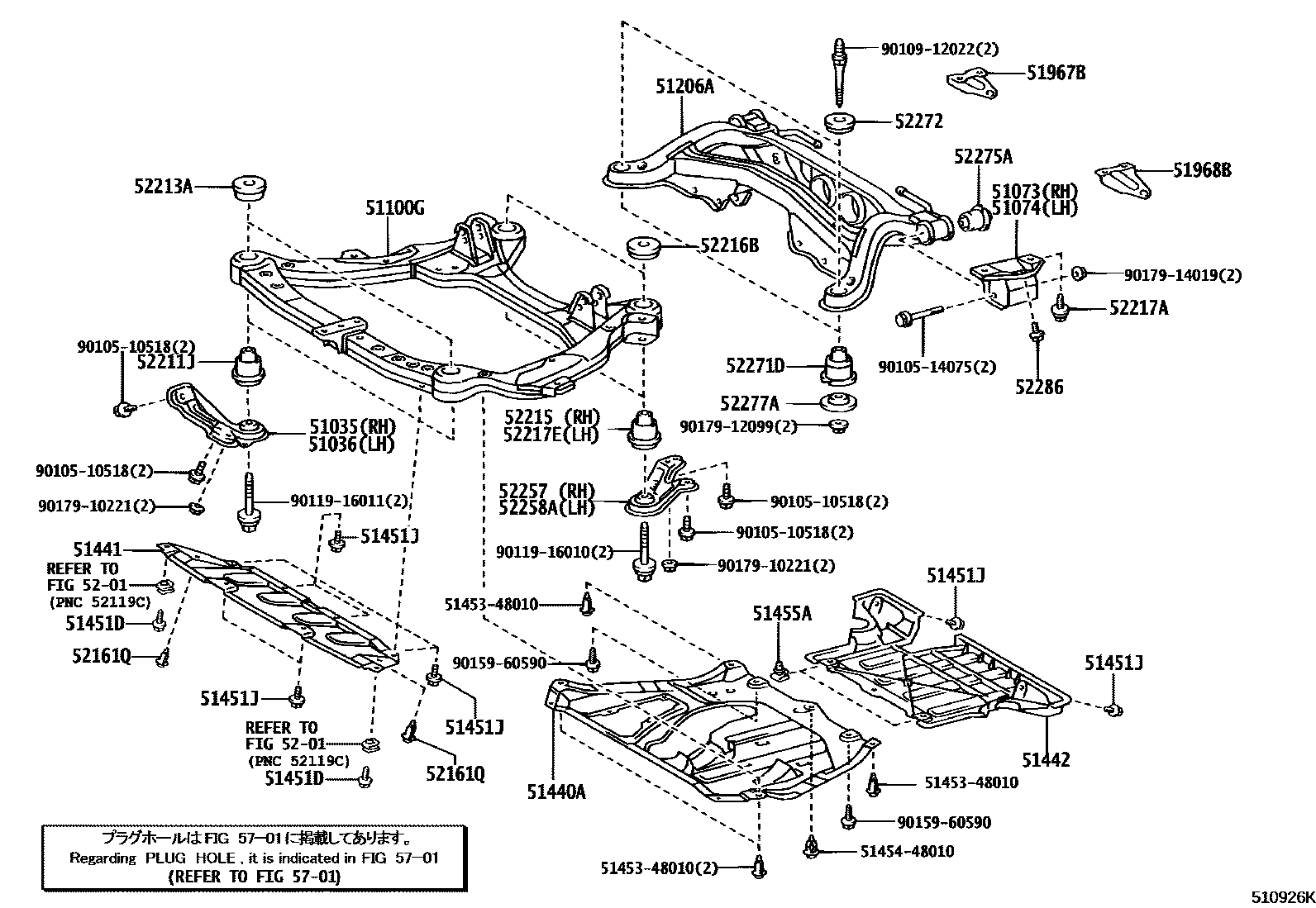

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48020iMCU3#¥6,700200302-200812

sub51035-48021¥6,700

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48020iMCU3#¥6,700200302-200812

sub51036-48021¥6,700

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-48010iMCU3#¥7,500200302-200812

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-48010iMCU3#¥7,400200302-200812

51100GFRAME ASSY, FRONT

main51100-28031iMCU3#¥86,900200302-200703

sub51100-48070¥86,900

main51100-48070iGSU35¥86,900200704-200806

sub51100-48071¥86,900

main51100-48071iGSU35¥86,900200807-200812

sub51100-48072¥86,900

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48040iMCU3#¥70,600200302-200812

51440ACOVER ASSY, ENGINE UNDER

main51440-48010iMCU38..ARL¥16,800200302-200601

main51440-48020iMCU3#..EUR,GCC¥22,500200302-200601

main51440-48060iGSU35..ARL¥16,600200601-200812

main51440-48070iGSU35..EUR,GCC200601-200812

sub51440-48071¥25,800

51441COVER, ENGINE UNDER, NO.1

main51441-48030iMCU3#¥6,800200302-200812

51442COVER, ENGINE UNDER, NO.2

main51442-48010iMCU3#¥9,900200302-200812

51451DSCREW, NO.1

main90159-60444iMCU3#¥100200302-200812

51451JBOLT, NO.1

main90119-06699iMCU3#¥70200302-200812

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010iMCU3#¥320200302-200812

51967BHOOK, TRANSPORT, REAR RH

main51967-48020iMCU3#¥2,730200302-200812

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iMCU3#¥1,940200302-200812

5201

52161QPIECE, FRONT BUMPER

main52161-16010iMCU3#¥120200302-200812

sub52161-0K040¥120

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iMCU3#¥4,930200302-200812

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iMCU3#¥2,330200302-200812

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iMCU3#¥6,200200302-200812

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iMCU3#¥1,860200302-200812

52217ABOLT, BODY MOUNTING

main52217-48010iMCU3#¥230200302-200812

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iMCU3#¥5,900200302-200812

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iMCU3#¥3,690200302-200812

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48030iMCU3#¥5,400200302-200704

main51024-48040iGSU35¥4,430200705-200812

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32010iMCU3#¥4,570200302-200812

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iMCU3#¥810200302-200812

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-48010iMCU3#¥4,930200302-200812

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-32010iMCU3#¥1,350200302-200812

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-48010iMCU3#¥230200302-200812

5701

5145348010SILENCER, ENGINE UNDER COVER, FRONT

main51453-48010¥390

5145448010CLIP

main51454-48010¥240

9010510518

main90105-10518¥140

9010514075

main90105-14075¥610

9010912022

main90109-12022¥610

9011916010

main90119-16010¥780

9011916011

main90119-16011¥780

9015960590

main90159-60590¥60

9017910221

main90179-10221¥90

9017912099

main90179-12099¥310

9017914019

main90179-14019¥130

41 parts on this diagram · 2 diagrams in section
