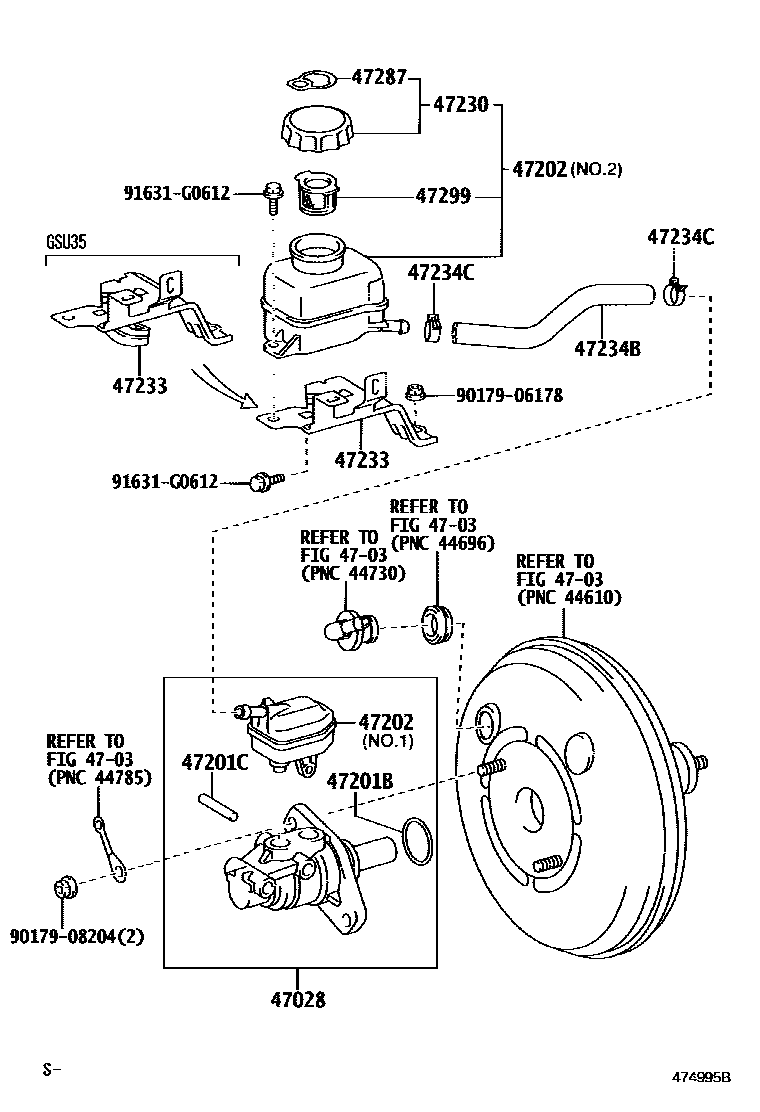

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-48010iMCU3#..RHD200302-200310

sub47028-48011

main47028-48011iMCU3#..RHD200310-200812

main47028-48020iMCU3#..LHD200302-200402

sub47028-48021

main47028-48021iMCU3#..LHD200402-200812

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGSU35200302-200812

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMCU3#200302-200812

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48020iMCU3#200302-200812

NO.1

main47220-48130iMCU3#200302-200812

NO.2

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iGSU35200302-200812

sub47230-47090

47233BRACKET, RESERVOIR

main47233-48050iMCU3#..RHD200302-200601

main47233-48060iMCU3#..LHD200302-200812

main47233-48100iGSU35..RHD200601-200812

47234BTUBE, RESERVOIR, NO.1

main47234-48050iMCU3#..RHD200302-200601

main47234-48060iMCU3#..LHD200302-200812

main47234-48130iGSU35..RHD200601-200812

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iMCU3#200302-200812

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCU3#200302-200812

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCU3#200302-200812

9017906178

main90179-06178

9017908204

main90179-08204

91631G0612

main91631-G0612
