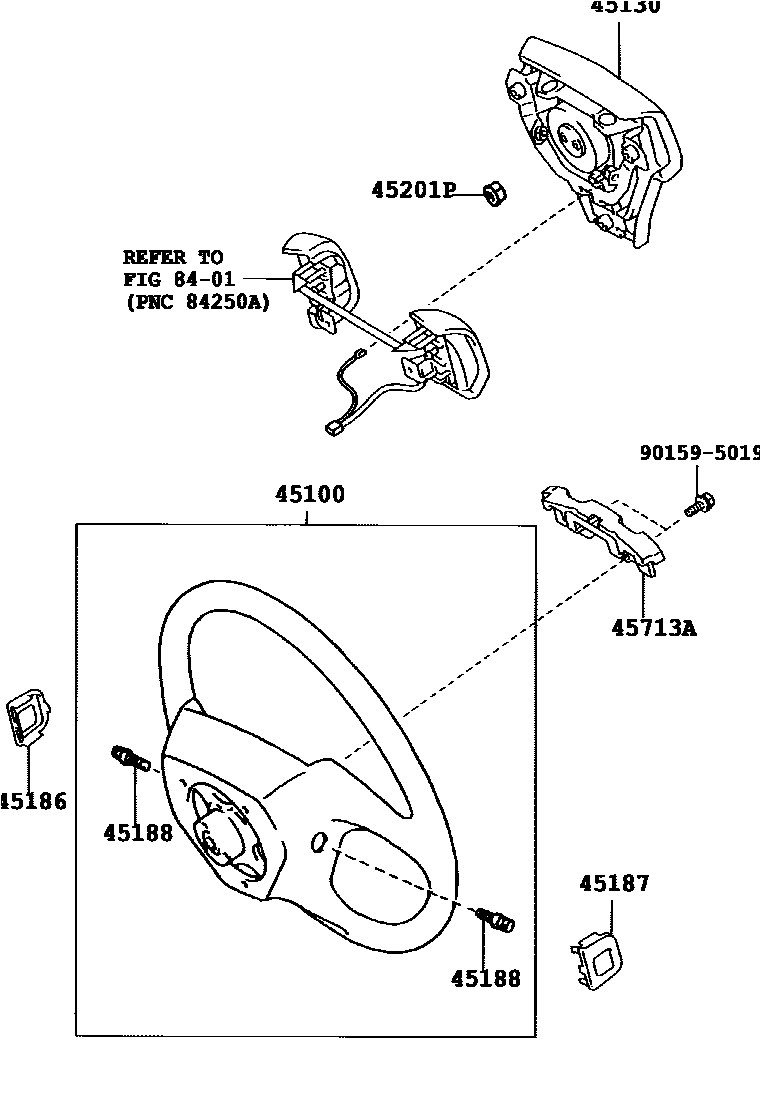

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48270-C0i200302-200307

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

main45100-48270-E0i200302-200307

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-48380-C0i200307-200601

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

main45100-48380-E0i200601-200812

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-48290-C0i200302-200305

3-SPOKE,WOOD,CRUISE CONTROL-WITH&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH),BLACK,TRIM1#,2#

main45100-48290-E0i200302-200305

3-SPOKE,WOOD,CRUISE CONTROL-WITH&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH),SANDAL WOOD,TRIM0#

main45100-48291-C0i200306-200601

3-SPOKE,WOOD(BROWN),CRUISE CONTROL-WITH&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH),BLACK,TRIM1#,2#

main45100-48291-E0i200601-200812

3-SPOKE,WOOD(BROWN),CRUISE CONTROL-WITH&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH),SANDAL WOOD,TRIM0#

main45100-48400-C0i200701-200812

3-SPOKE,WOOD(BLACK),CRUISE CONTROL-WITH&STEERING WHEEL-WOOD & WITH(AUDIO SWITCH),BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-48110-C0i200302-200601

BLACK,TRIM1#,2#

main45130-48110-E0i200601-200812

SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-48020-C0i200302-200601

BLACK,TRIM1#,2#

main45187-48020-E0i200302-200601

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200302-200601

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200601-200812

45713ADAMPER, STEERING SHAKE

main45713-48060i200601-200812

8401

9015950199

8 parts on this diagram · 1 diagram in section
