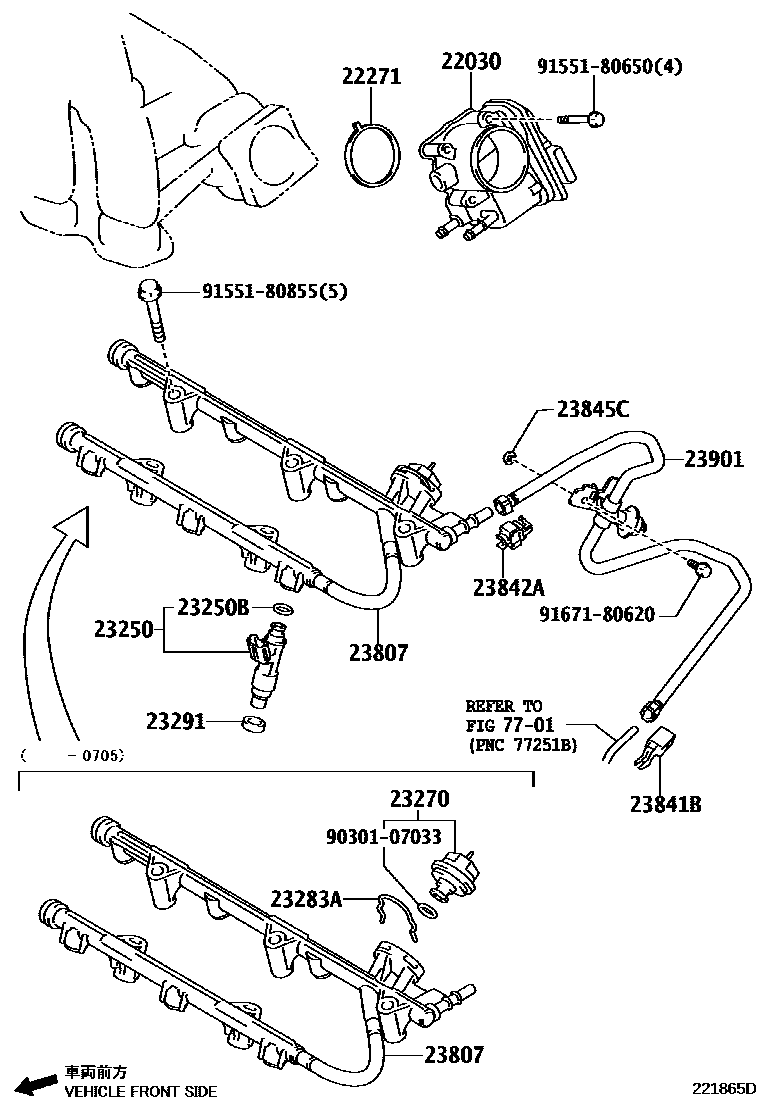

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31030i2GRFE..GSU35¥58,000200601-200812

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSU35¥340200601-200812

23250INJECTOR ASSY, FUEL

main23209-20030i1MZFE,3MZFE..MCU3#¥20,100200302

sub23209-20040¥20,100

main23209-31050i2GRFE..GSU35¥14,000200601-200812

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1MZFE,3MZFE..MCU3#¥190200302-200502

main90301-07033i2GRFE..GSU35¥140200601-200812

main90301-07037i1MZFE,3MZFE..MCU3#¥140200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i2GRFE..GSU35¥6,400200601-200705

sub23270-31080¥6,400

main23270-62010i1MZFE,3MZFE..MCU3#¥6,400200302-200410

sub23270-62011¥6,400

main23270-62011i1MZFE,3MZFE..MCU3#¥6,400200410

sub23207-20010¥6,400

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i2GRFE..GSU35¥160200601-200705

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2GRFE..GSU35¥240200601-200812

main23291-41010i1MZFE,3MZFE..MCU3#¥340200302

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31040i2GRFE..GSU35¥13,300200601-200705

main23807-31090i2GRFE..GSU35¥13,400200705-200812

main23814-20020i1MZFE,3MZFE..MCU3#¥7,700200302-200401

sub23814-20021¥7,700

main23814-20021i1MZFE,3MZFE..MCU3#¥7,700200401

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GRFE..GSU35¥220200705-200812

main23841-28010i1MZFE,3MZFE..MCU3#¥370200302-200704

sub23841-21050¥220

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31040i2GRFE..GSU35¥630200601-200812

23845CINSULATOR, FUEL PIPE

main23845-31020i2GRFE..GSU35¥310200601-200812

23901TUBE SUB-ASSY, FUEL

main23901-31120i2GRFE..GSU35¥16,000200601-200603

sub23901-31121¥15,900

main23901-31121i2GRFE..GSU35¥15,900200604-200812

7701

9030107033

main90301-07033¥140

9155180650

main91551-80650¥80

9155180855

main91551-80855¥100

9167180620

main91671-80620¥60

17 parts on this diagram · 3 diagrams in section
