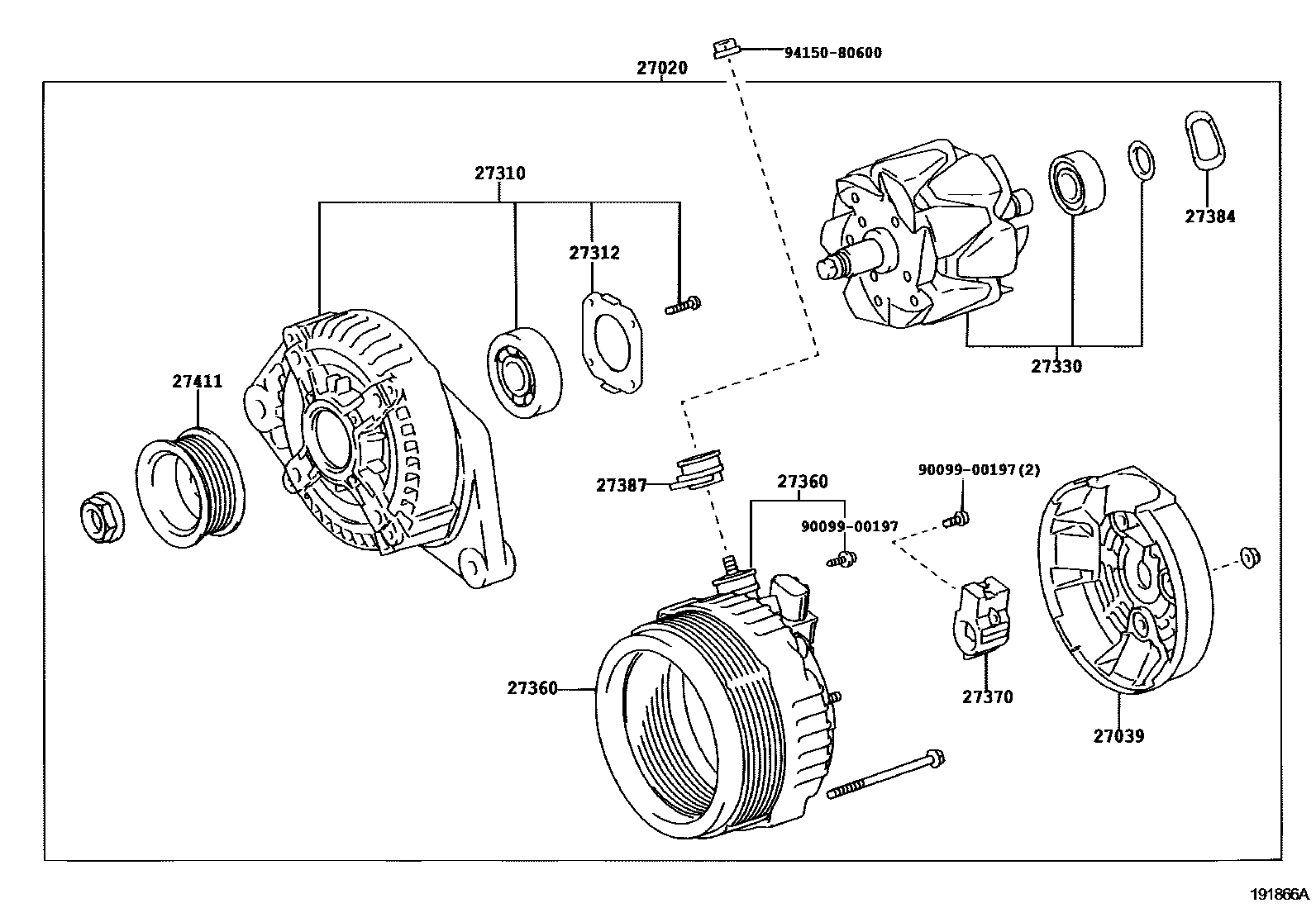

ALTERNATOR

0001 112V 100A 0002 112V 130A 0003 112V 100A,130A

27020ALTERNATOR ASSY

main27060-20270i3MZFE..MCU38200302-200601

12V 100A

sub27060-20210

main27060-20290i1MZFE..MCU35200302-200601

12V 130A

main27060-31080i2GRFE..GSU35..ARL,GCC200601-200706

12V 100A

main27060-31081i2GRFE..GSU35..ARL,GCC200707-200812

12V 100A

sub27060-31082

main27060-31140i2GRFE..GSU35..EUR200601-200706

12V 130A

main27060-31141i2GRFE..GSU35..EUR200707-200812

12V 130A

27039COVER, ALTERNATOR REAR END

main27039-27060i2GRFE..GSU35200601-200812

main27039-28150i1MZFE..MCU35200302-200601

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-20130i1MZFE,3MZFE..MCU3#200302-200601

main27310-31290i2GRFE..GSU35200601-200812

27312PLATE, RETAINER

main27312-72100i1MZFE,3MZFE..MCU3#200302-200601

27330ROTOR ASSY, ALTERNATOR

main27330-20130i1MZFE..MCU35200302-200601

main27330-30070i3MZFE..MCU38200302-200601

main27330-33090i2GRFE..GSU35..EUR200601-200812

27360COIL ASSY, ALTERNATOR

main27360-20220i3MZFE..MCU38200302-200601

sub27360-20250

main27360-20240i1MZFE..MCU35200302-200601

main27360-31330i2GRFE..GSU35..ARL,GCC200601-200812

main27360-31350i2GRFE..GSU35..EUR200601-200812

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1MZFE..MCU35200302-200601

main27370-31220i2GRFE..GSU35200601-200812

main27370-58460i3MZFE..MCU38200302-200601

27384WASHER

main27384-50030i1MZFE,3MZFE..MCU3#200302-200601

27387INSULATOR, TERMINAL

main27387-20130i1MZFE,3MZFE..MCU3#200302-200601

27411PULLEY, ALTERNATOR

main27411-46080i1MZFE,3MZFE..MCU3#200302-200601

9009900197

main90099-00197

9415080600

main94150-80600

12 parts on this diagram · 3 diagrams in section
