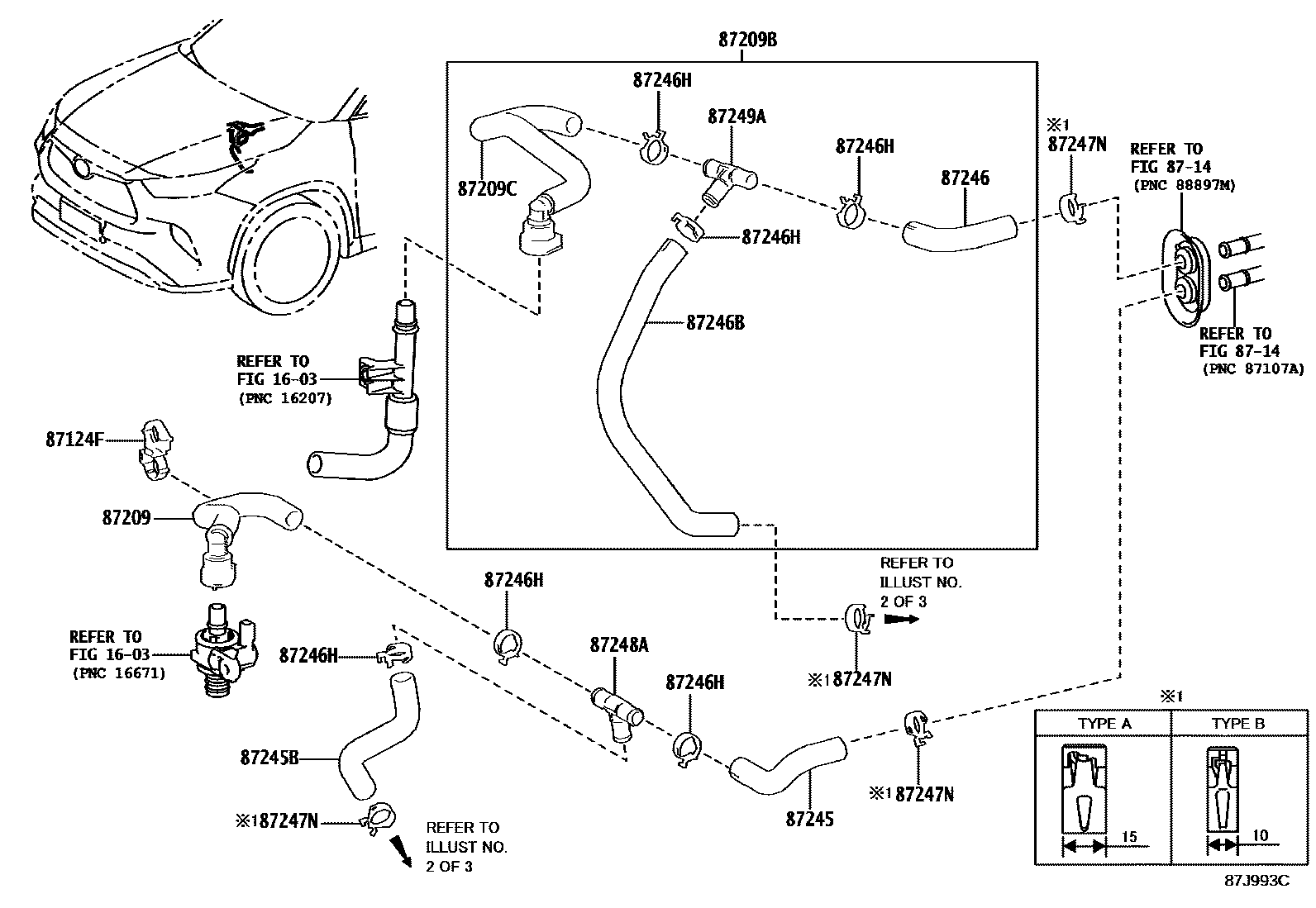

HEATING & AIR CONDITIONING - WATER PIPING
1603
87124FCLAMP, HEATER HOSE, NO.1
8714
87209HOSE SUB-ASSY, WATER
87209BHOSE SUB-ASSY, WATER, B
87209CHOSE SUB-ASSY, WATER, C
87245HOSE, HEATER WATER, INLET
87245BHOSE, HEATER WATER, INLET B
87246HOSE, HEATER WATER, OUTLET
87246BHOSE, HEATER WATER, OUTLET B
87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)
87247NCLIP, HOSE
(L),T/P A:REF.ILLUST
(J),T/P A:REF.ILLUST
(J),T/P B:REF.ILLUST
87248APIPE, HEATER WATER INLET, A
87249APIPE, HEATER WATER OUTLET, A
