HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1REAR AIR DUCT 0005 1SENSOR

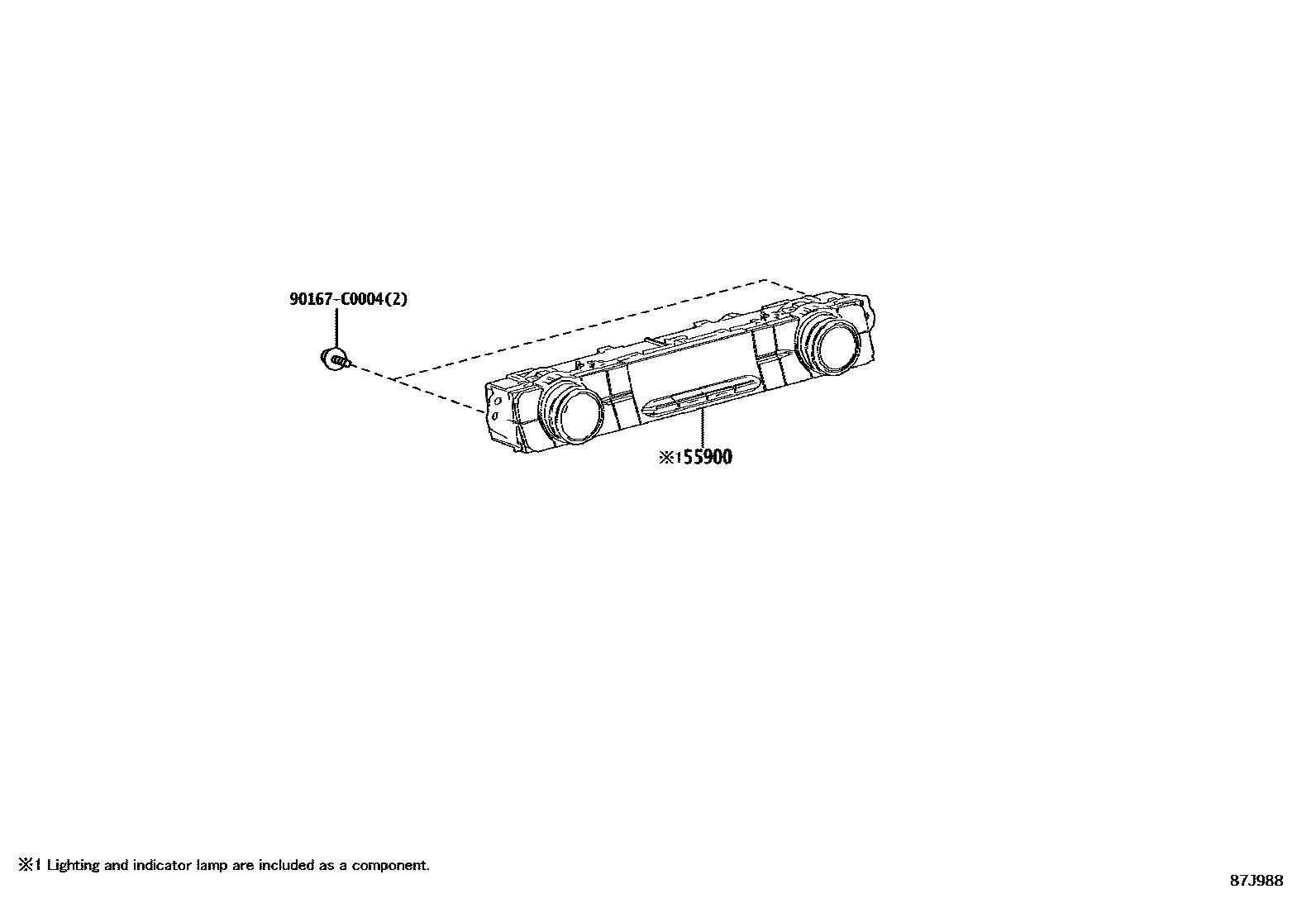

55900CONTROL ASSY, AIR CONDITIONER

main55900-0E800iAXUH7#..N202108-202304

main55900-0E820iAXUH7#..M;SXUA75..M,N202108-202304

main55900-0E830iAXUH79,SXUA75..G202108-202304

main55900-0ED10iAXUH7#..N202304-202509

main55900-0ED20iAXUH7#..M;SXUA75..M,N202304-202509

BASE+ PACKAGE

main55900-0ED30iAXUH79,SXUA75..G202304-202509

90167C0004

main90167-C0004

2 parts on this diagram · 5 diagrams in section
