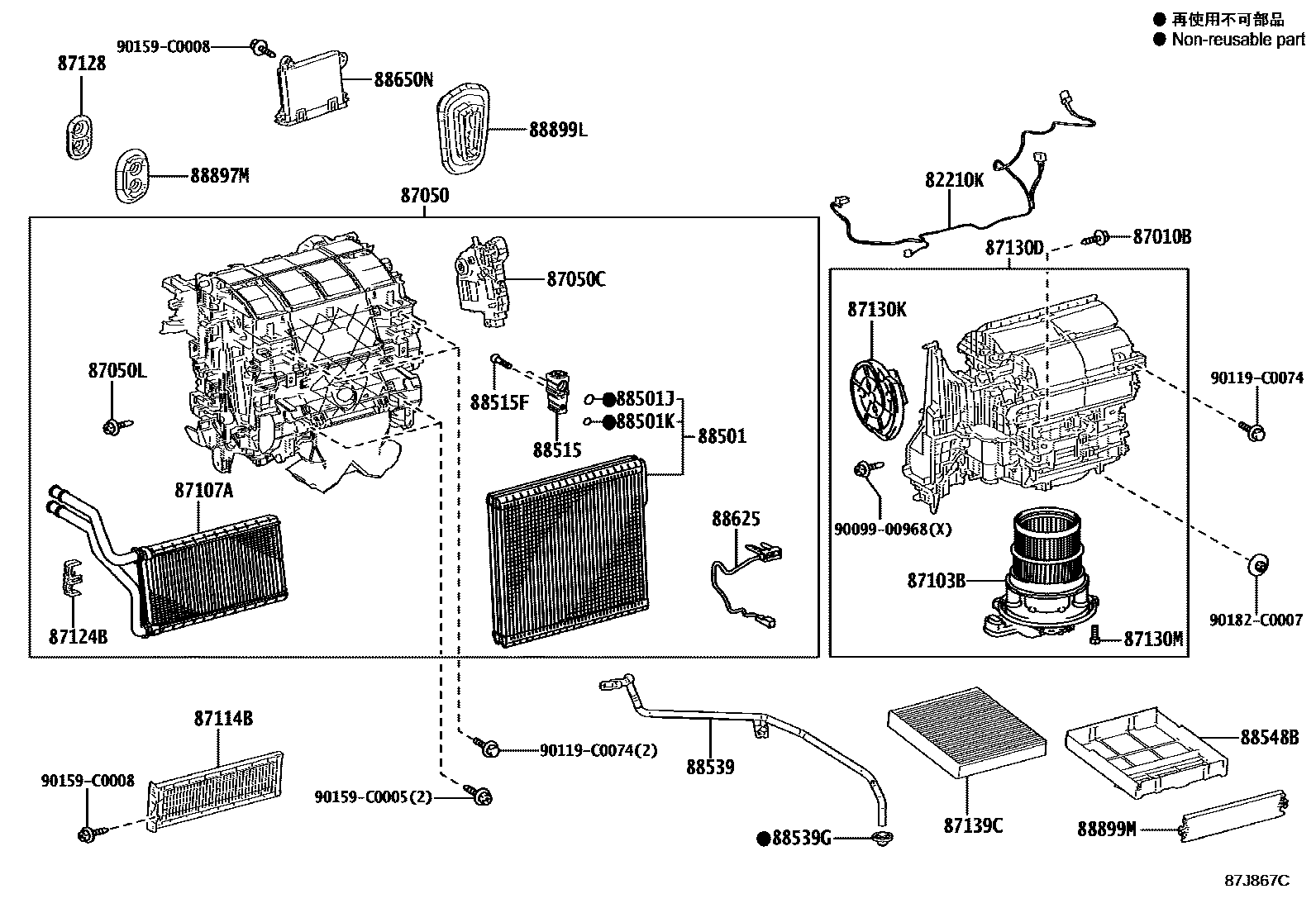

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0E100iAXUH7#,SXUA75202405

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90099-00968×2iAXUH7#,SXUA75202108-202405

87050RADIATOR ASSY, AIR CONDITIONER

main87050-08110iAXUH7#202405

main87050-0E480iAXUH7#202108-202405

main87050-0E490iSXUA75202209-202405

main87050-0E670iSXUA75202405

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06370iAXUH7#,SXUA75202405

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90099-00968×7iAXUH7#,SXUA75202108-202405

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0R050iAXUH7#,SXUA75202108-202405

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06110iAXUH7#,SXUA75202108-202405

87114BCOVER, HEATER

main87114-06060iAXUH7#,SXUA75202108-202405

87124BCLAMP, HEATER

main87124-06110iAXUH7#,SXUA75202108-202405

87128GROMMET, HEATER

main87128-0A040iAXUH7#,SXUA75202405

(L)

main87128-28010iAXUH7#,SXUA75202306-202405

(J)

87130DBLOWER ASSY

main87130-0R070iAXUH7#,SXUA75202108-202405

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-06390iAXUH7#,SXUA75202108-202405

87130MSCREW(FOR BLOWER)

main87193-87101×3iAXUH7#,SXUA75202108-202405

87139CFILTER, CLEAN AIR

main87139-02270iAXUH7#,SXUA75202108-202305

STANDARD,OE PART

main87139-06170iAXUH7#,SXUA75202405

STANDARD,OE PART

main87139-58010iAXUH7#,SXUA75202405

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06470iAXUH7#202405

main88501-0E240iSXUA75202209-202405

88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)

main90099-14121iAXUH7#,SXUA75202108-202405

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iAXUH7#,SXUA75202108-202405

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-06150iAXUH7#,SXUA75202405

main88515-0R040iAXUH7#,SXUA75202108-202405

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iAXUH7#,SXUA75202108-202405

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0E150iAXUH7#,SXUA75202108-202405

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iAXUH7#,SXUA75202405

88548BCASE, AIR FILTER

main88899-02490iAXUH7#,SXUA75202108-202306

main88899-02491iAXUH7#,SXUA75202306-202405

88625THERMISTOR, COOLER, NO.1

main88620-06080iAXUH7#,SXUA75202108-202405

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0E570iAXUH7#,SXUA75202209-202405

main88650-0E800iAXUH7#202108-202209

main88650-0EB90iAXUH7#,SXUA75202405

88897MGROMMET (FOR HEATER PIPE)

main87128-06020iAXUH7#,SXUA75202405

88899LPARTS, COOLING UNIT

main88899-06290iAXUH7#,SXUA75202108-202405

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06110iAXUH7#,SXUA75202108-202405

9009900968

main90099-00968

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

32 parts on this diagram · 2 diagrams in section
