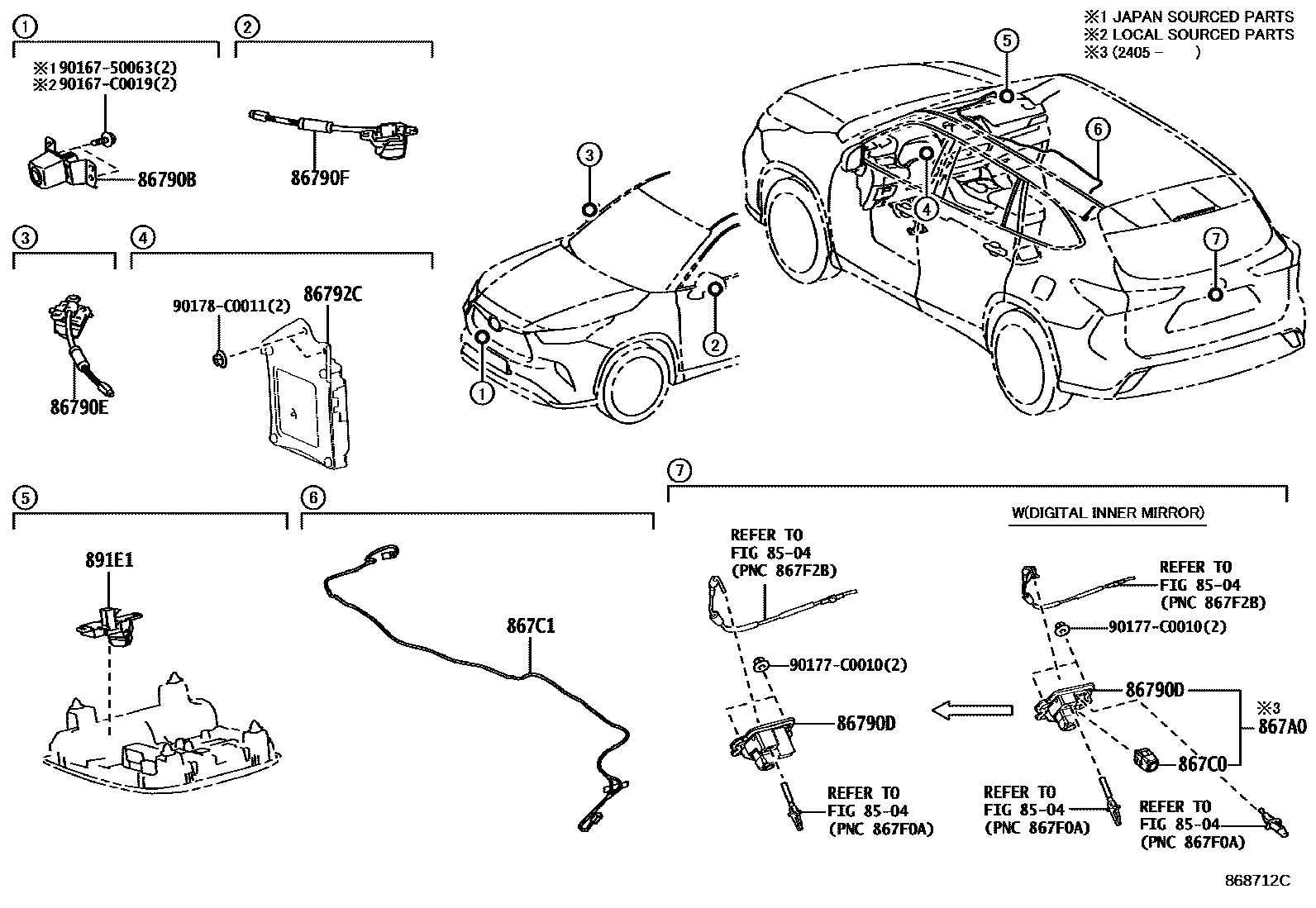

CAMERA & REAR MONITOR DISPLAY

8504

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E050iAXUH79,SXUA75..G202108-202405

main86790-0E680iAXUH79,SXUA75..G202405-202509

86790DCAMERA ASSY, TELEVISION, RR

main86790-0E220iAXUH79,SXUA75..G202108-202405

main86790-0E380iAXUH79..N202304-202405

BASE+ PACKAGE

main86790-0E380iSXUA75..N202209-202405

main86790-0E670iSXUA75..N202405-202509

BASE+ PACKAGE

main86790-0E740iAXUH79,SXUA75..G202405-202509

main867B0-0E180iAXUH7#..M202108-202112

sub867B0-0E181

main867B0-0E181iAXUH7#,SXUA75..M202201-202405

main867B0-0E190iAXUH7#,SXUA75..M202405-202509

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E210iAXUH79,SXUA75..G202108-202405

main86790-0E660iAXUH79,SXUA75..G202405-202509

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E200iAXUH79,SXUA75..G202108-202405

main86790-0E650iAXUH79,SXUA75..G202405-202509

86792CCOMPUTER, PARKING ASSIST

main86792-0E010iAXUH79,SXUA75..G202108-202405

main86792-0E180iAXUH79,SXUA75..G202405-202509

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-0E080iAXUH79,SXUA75..G202405-202509

867C0CAMERA ASSY, INNER MIRROR

main867C0-0E010iAXUH79,SXUA75..G202108-202509

867C1WIRE, MIRROR CAMERA

main867C1-0E060iAXUH79,SXUA75..G202108-202405

891E1CAMERA, CABIN OBJECT RECOGNITION

main891E1-0E010iAXUH79,SXUA75..G202108-202405

9016750063

main90167-50063

90167C0019

main90167-C0019

90177C0010

main90177-C0010

90178C0011

main90178-C0011

14 parts on this diagram · 1 diagram in section
