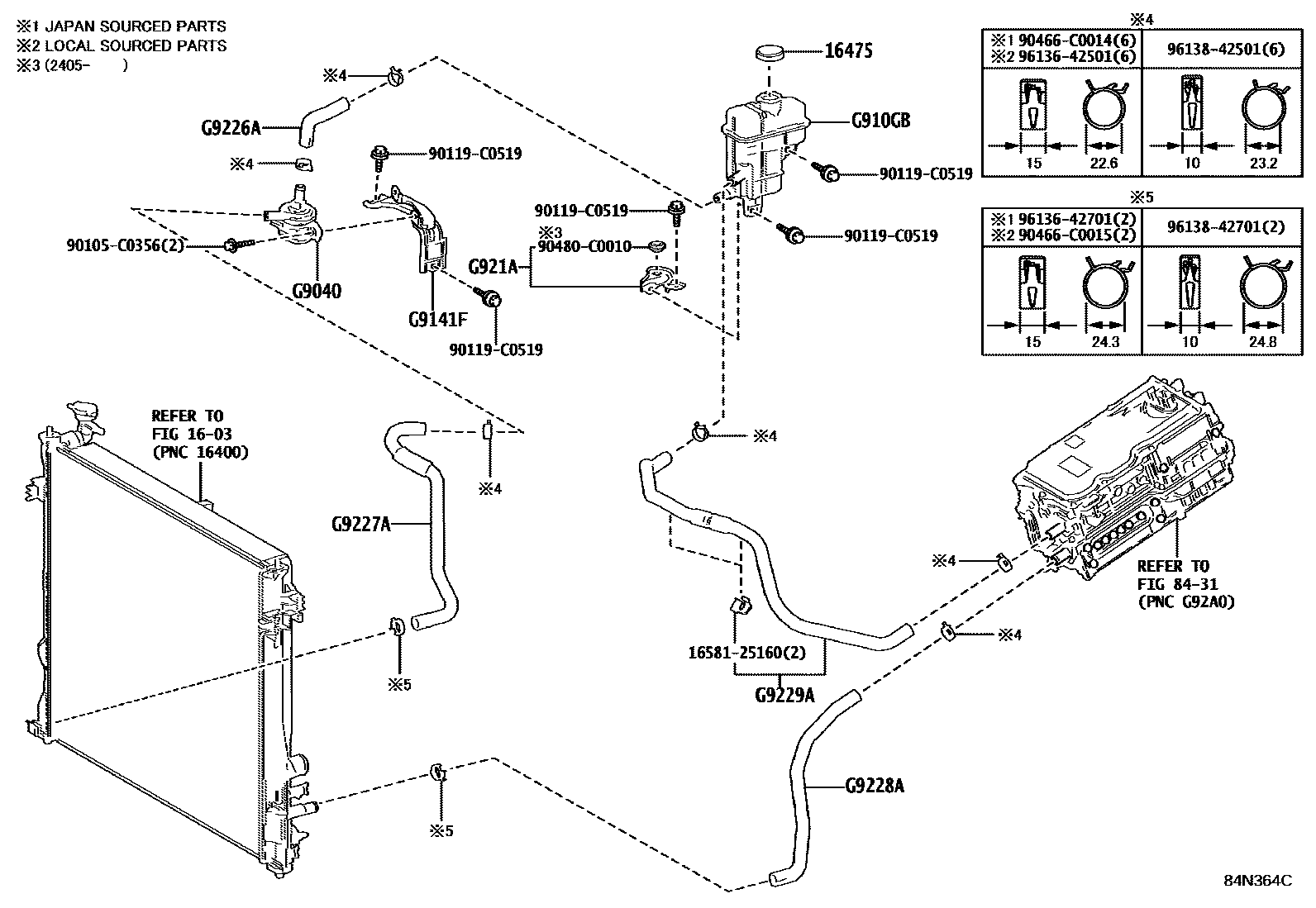

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-0T081iA25DFXS..AXUH7#202108-202405

LOCAL SOURCED PARTS

main16475-28140iA25DFXS..AXUH7#202108-202405

JAPAN SOURCED PARTS

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXUH7#202304-202405

mainG90400E070iAXUH7#202405

mainG90400R030iAXUH7#202108-202304

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R031iAXUH7#202108-202405

G9141FBRACKET, HV WATER PUMP

mainG91410E040iAXUH7#202108-202405

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R030iAXUH7#202108-202405

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260E040iAXUH7#202108-202405

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E020iAXUH7#202108-202405

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E020iAXUH7#202108-202405

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E020iAXUH7#202108-202405

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

90105C0356

main90105-C0356

90119C0519

main90119-C0519

90466C0014

main90466-C0014

90466C0015

main90466-C0015

90480C0010

main90480-C0010

9613642501

main96136-42501

9613642701

main96136-42701

9613842501

main96138-42501

9613842701

main96138-42701

21 parts on this diagram · 1 diagram in section
