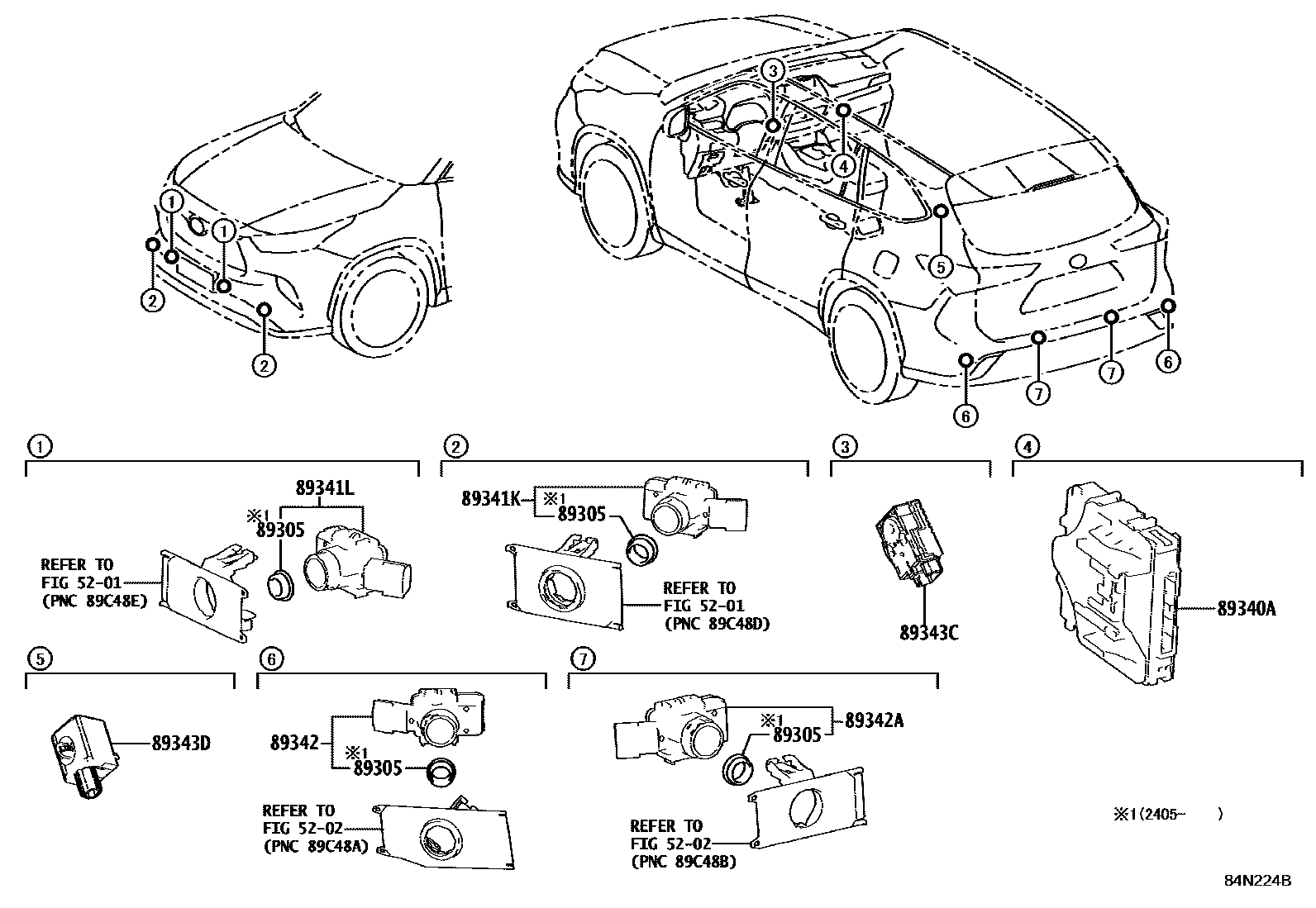

CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
89341LSENSOR, ULTRASONIC, FRONT CENTER
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
89342ASENSOR, ULTRASONIC, REAR CENTER
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
10 parts on this diagram · 1 diagram in section
