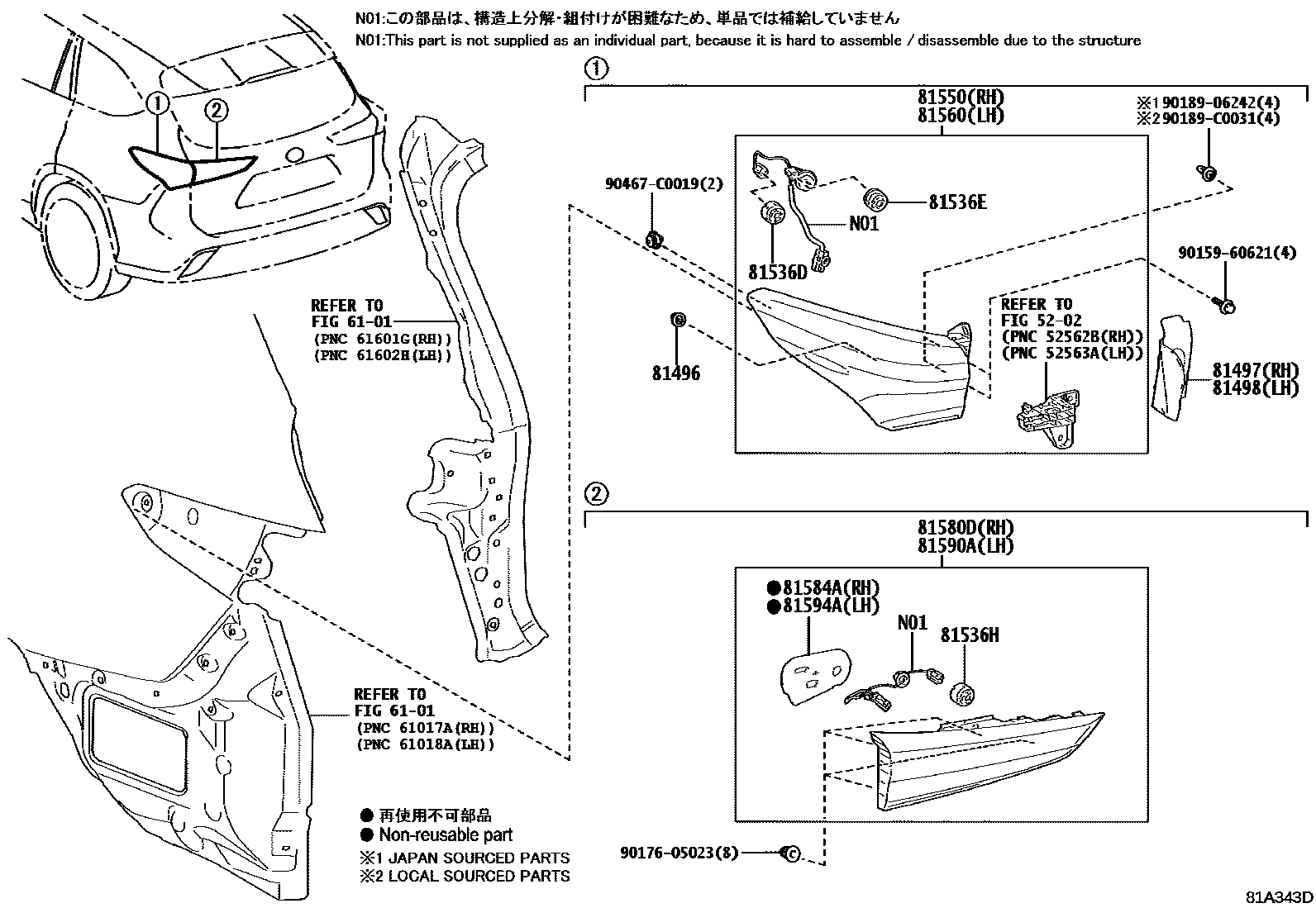

REAR COMBINATION LAMP

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iAXUH7#,SXUA75202108-202405

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E050iAXUH7#,SXUA75202108-202405

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E050iAXUH7#,SXUA75202108-202405

81536DLED, TAILLAMP

main81965-02050iAXUH7#,SXUA75202201-202405

main90069-81130iAXUH7#202108-202201

81536ELED, STOP LAMP

main81965-02060iAXUH7#,SXUA75202201-202405

main90069-81126iAXUH7#202108-202201

81536HLED, TAILLAMP, NO.2

main81965-02050iAXUH7#,SXUA75202202-202405

main90069-81130iAXUH7#202108-202202

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E290iAXUH7#202108-202201

main81550-0E291iAXUH7#,SXUA75202201-202405

main81550-0E380iAXUH79..M202304-202405

BLACK EDITION

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E290iAXUH7#202108-202201

main81560-0E291iAXUH7#,SXUA75202201-202405

main81560-0E380iAXUH79..M202304-202405

BLACK EDITION

81580DLAMP ASSY, REAR, RH

main81580-0E230iAXUH7#202108-202202

main81580-0E231iAXUH7#,SXUA75202202-202405

main81580-0E300iAXUH79..M202304-202405

BLACK EDITION

81584AGASKET, REAR LAMP RH

main81584-0E230iAXUH7#,SXUA75202108-202405

81590ALAMP ASSY, REAR, LH

main81590-0E230iAXUH7#202108-202202

main81590-0E231iAXUH7#,SXUA75202202-202405

main81590-0E300iAXUH79..M202304-202405

BLACK EDITION

81594AGASKET, REAR LAMP LH

main81594-0E230iAXUH7#,SXUA75202108-202405

9015960621

main90159-60621

9017605023

main90176-05023

9018906242

main90189-06242

90189C0031

main90189-C0031

90467C0019

main90467-C0019

19 parts on this diagram · 1 diagram in section
