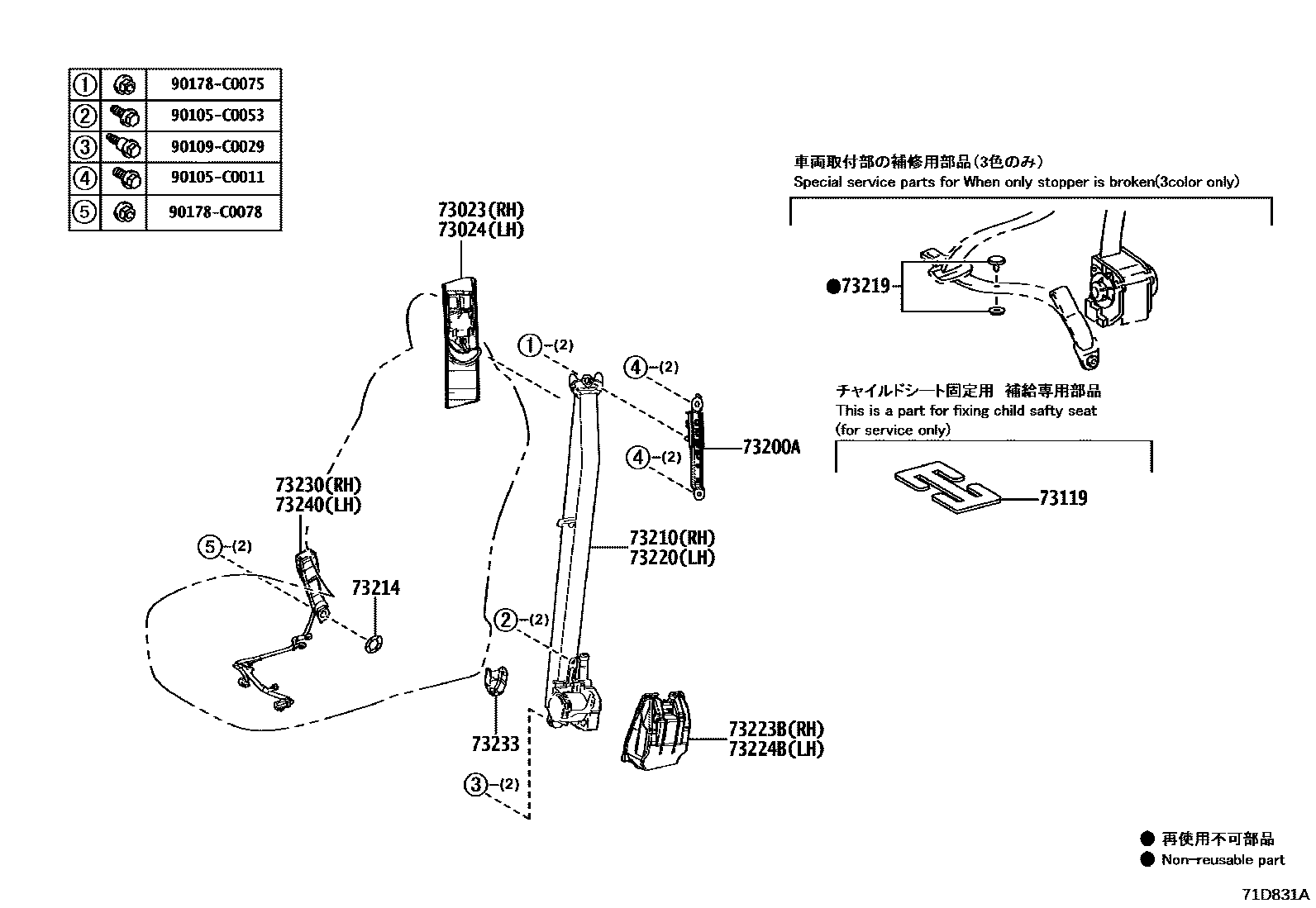

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#,4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#,4#
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#,42
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
NEUTRAL BEIGE,TRIM40
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,42
BLACK,TRIM0#,2#,4#
NEUTRAL BEIGE,TRIM40
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,42
BLACK,TRIM0#,2#,4#
BASE+ PACKAGE,BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
90105C0011
main90105-C0011
90105C0053
main90105-C0053
90109C0029
main90109-C0029
90178C0075
main90178-C0075
90178C0078
main90178-C0078
18 parts on this diagram · 3 diagrams in section
