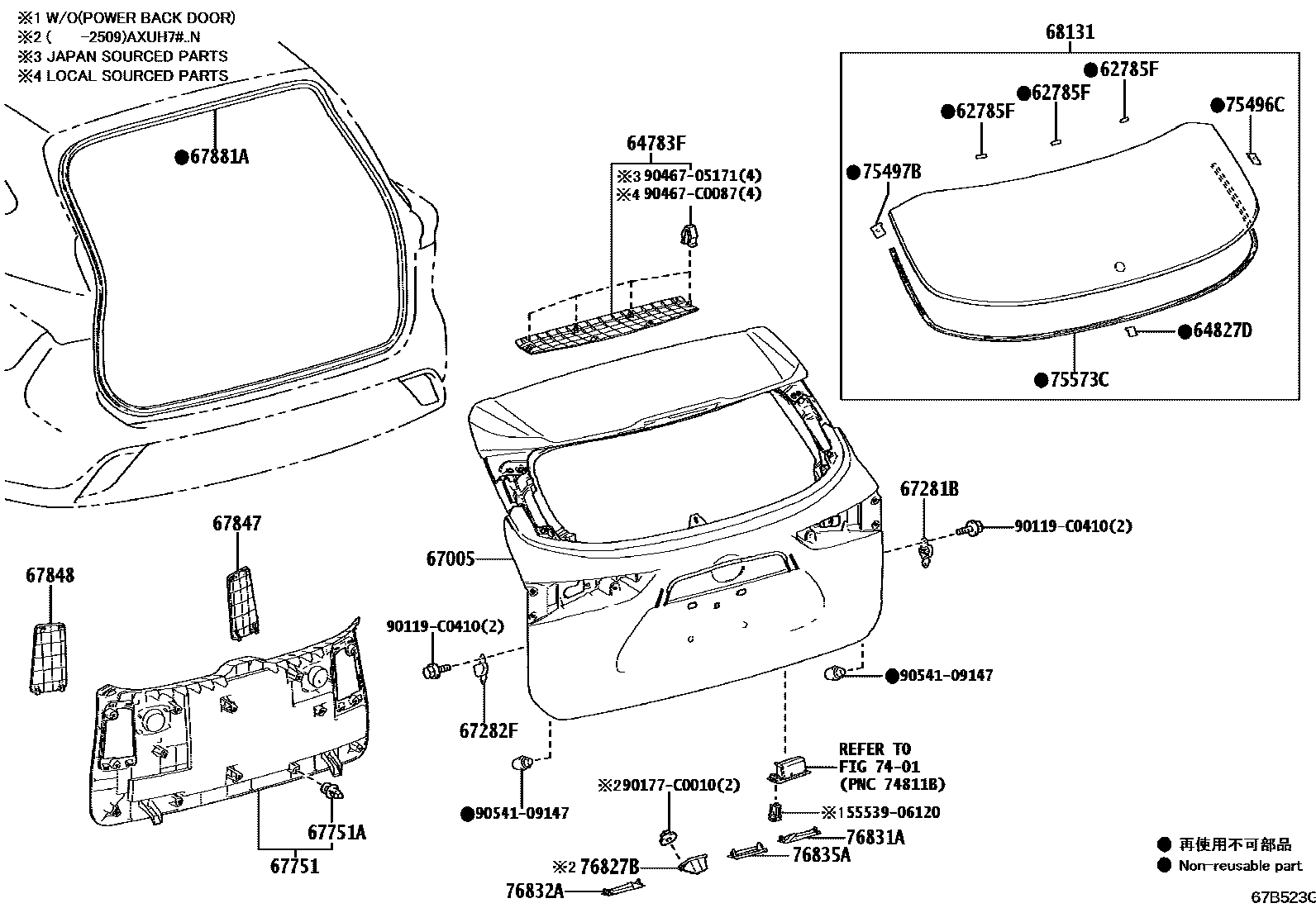

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64783FPLATE, DECK TRIM POCKET COVER
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
64827DCLIP, BACK WINDOW GLASS
67005PANEL SUB-ASSY, BACK DOOR
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67751BOARD, BACK DOOR TRIM
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67847COVER, BACK DOOR SERVICE HOLE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
67848COVER, BACK DOOR SERVICE HOLE, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
7401
75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH
75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH
75573CMOULDING, BACK WINDOW, OUTSIDE
76827BRETAINER, BACK DOOR GARNISH, NO.2
76831ACOVER, BACK DOOR FINISH PANEL, RH
76832ACOVER, BACK DOOR FINISH PANEL, LH
76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1
5553906120COVER, SPARE SWITCH HOLE
main55539-06120
90119C0410
main90119-C0410
90177C0010
main90177-C0010
9046705171
90467C0087
main90467-C0087
9054109147
26 parts on this diagram · 1 diagram in section
