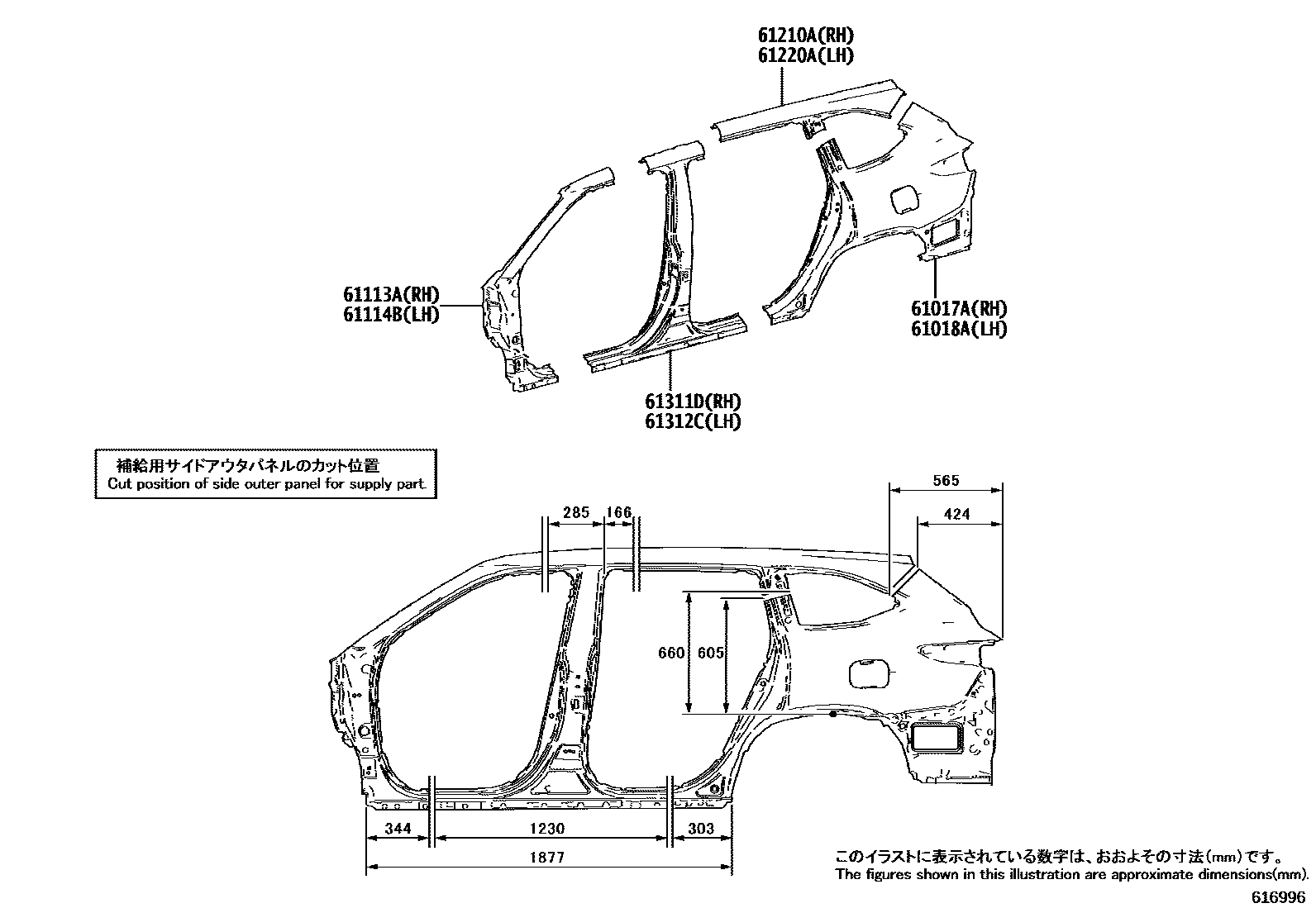

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-0E040iAXUH7#,SXUA75202108-202405

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-0E040iAXUH7#,SXUA75202108-202405

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0E040iAXUH7#,SXUA75202108-202405

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0E050iAXUH7#,SXUA75202108-202405

61210ARAIL ASSY, ROOF SIDE, RH

main61210-0E040iAXUH7#,SXUA75202108-202405

61220ARAIL ASSY, ROOF SIDE, LH

main61220-0E040iAXUH7#,SXUA75202108-202405

61311DPANEL, REAR BODY, FRONT OUTSIDE RH

main61311-0E110iAXUH7#,SXUA75202108-202405

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-0E110iAXUH7#,SXUA75202108-202405

8 parts on this diagram · 3 diagrams in section
