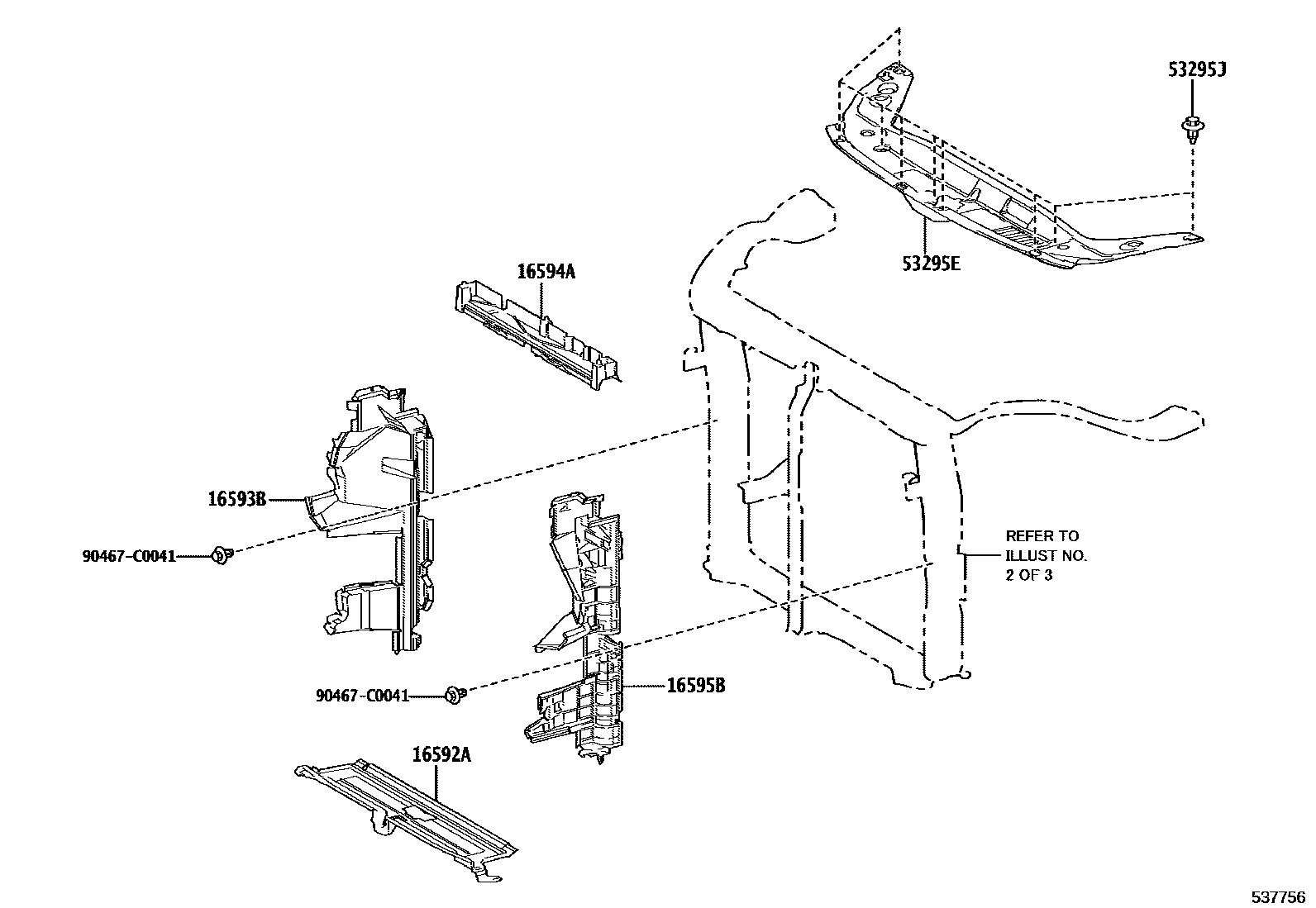

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPORT CO0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL 0006 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0050iA25DFXS,S20AFTS..AXUH7#,SXUA75202108-202405

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0300iA25DFXS..AXUH7#202405

main16593-F0540iS20AFTS..SXUA75202209-202405

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0050iA25DFXS,S20AFTS..AXUH7#,SXUA75202108-202405

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0320iA25DFXS..AXUH7#202108-202405

main16595-F0560iS20AFTS..SXUA75202209-202405

53295ESEAL, COOL AIR INTAKE DUCT

main53295-0E140iAXUH7#,SXUA75202108-202405

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-C0051×9iAXUH7#,SXUA75202108-202405

90467C0041

main90467-C0041

7 parts on this diagram · 6 diagrams in section
