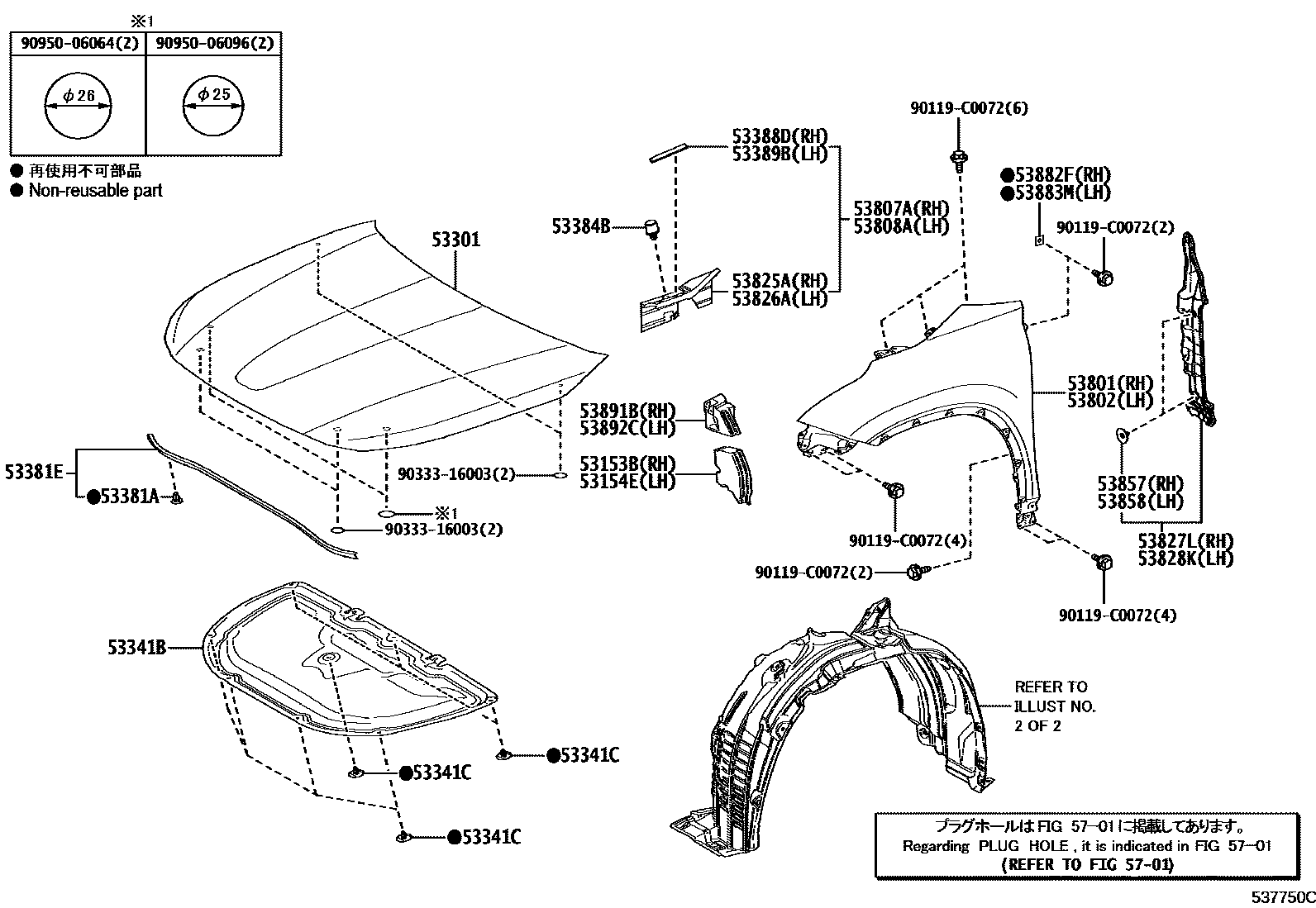

HOOD & FRONT FENDER
53153BGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
(J)
(L)
53381ESEAL, HOOD TO RADIATOR SUPPORT
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH
53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882FSEAL, FRONT FENDER
(L)
(J)
53883MSEAL, FRONT FENDER
(L)
(J)
53891BSEAL, FRONT FENDER SPLASH SHIELD, FRONT RH
53892CSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
5701
90119C0072
main90119-C0072
9033316003
main90333-16003
9095006064
main90950-06064
9095006096
main90950-06096
29 parts on this diagram · 2 diagrams in section
