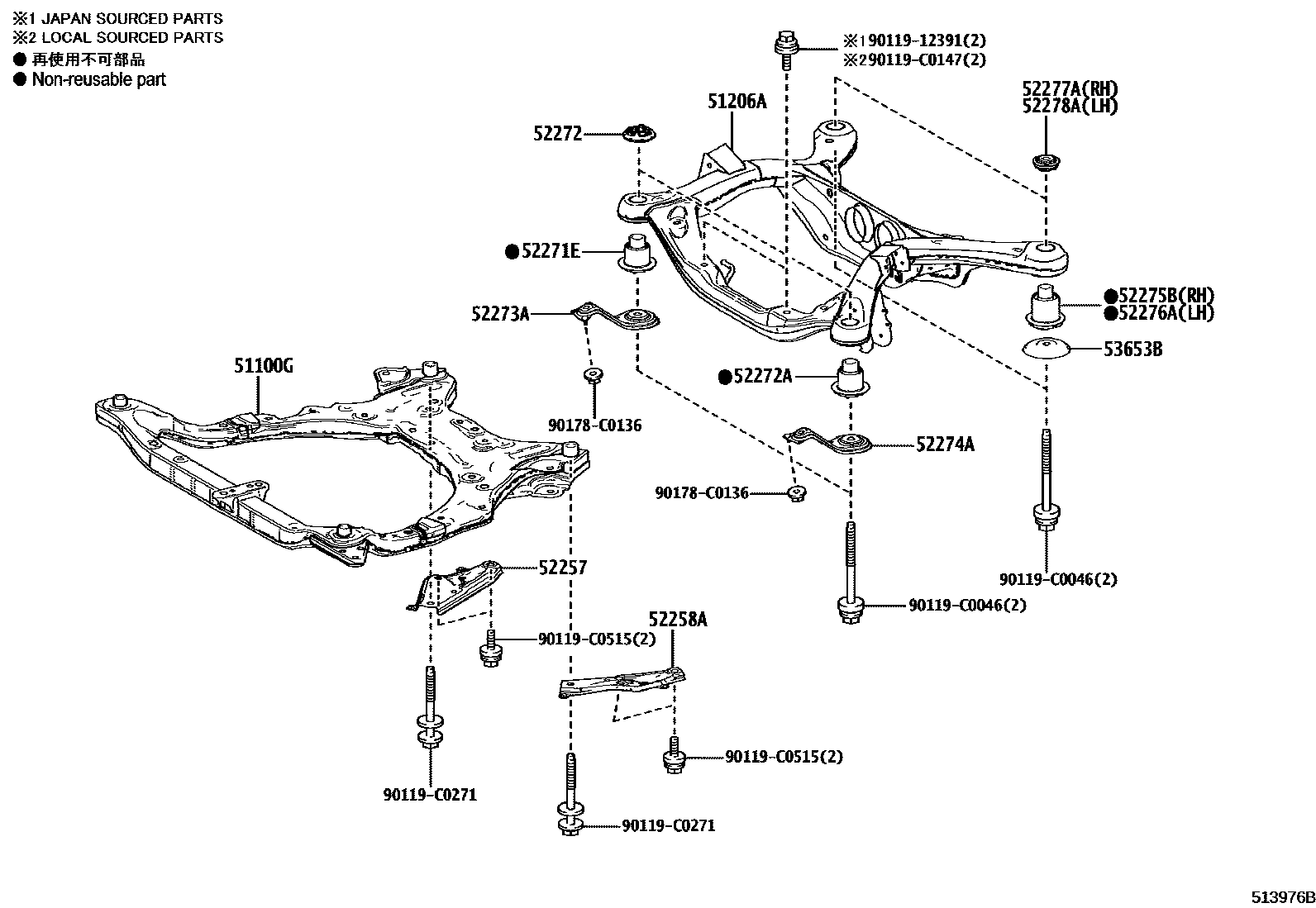

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0E100iAXUH7#,SXUA75202108-202307

sub51100-0E150

main51100-0E150iAXUH7#,SXUA75202308-202405

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E091iSXUA75202209-202405

main51206-0E100iAXUH7#202108-202405

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R060iAXUH7#,SXUA75202108-202405

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R060iAXUH7#,SXUA75202108-202405

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E080iAXUH7#,SXUA75202108-202405

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E080iAXUH7#,SXUA75202108-202405

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0E080iAXUH7#,SXUA75202108-202405

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-0E060iAXUH7#,SXUA75202108-202405

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-0E040iAXUH7#,SXUA75202108-202405

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0E090iAXUH7#,SXUA75202108-202405

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0E040iAXUH7#,SXUA75202108-202405

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E090iAXUH7#,SXUA75202108-202405

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-0E090iAXUH7#,SXUA75202108-202405

53653BBRACE, REAR SUSPENSION, LOWER

main53653-0E020iAXUH7#,SXUA75202108-202405

9011912391

main90119-12391¥190

90119C0046

main90119-C0046

90119C0147

main90119-C0147

90119C0271

main90119-C0271

90119C0515

main90119-C0515

90178C0136

main90178-C0136

20 parts on this diagram · 4 diagrams in section
