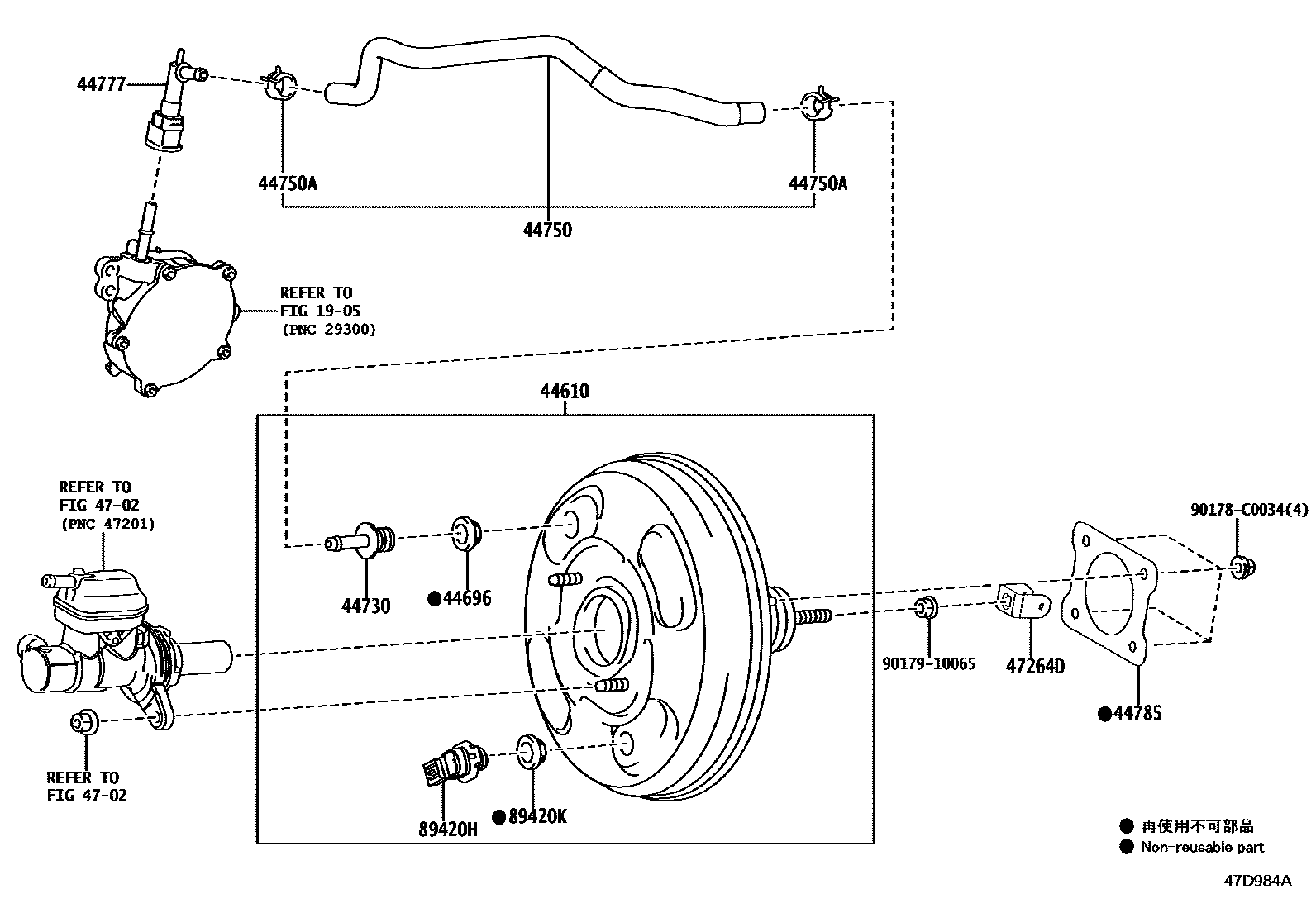

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-0E240iSXUA75202209-202405

44696GROMMET, CHECK VALVE

main90016-AT003iSXUA75202209-202405

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iSXUA75202209-202405

44750HOSE ASSY, VACUUM

main44750-0E190iSXUA75202209-202405

44750ACLIP(FOR VACUUM HOSE ASSY)

main90466-C0034iSXUA75202209-202405

44777CONNECTOR, VACUUM HOSE, NO.1

main29612-25010iSXUA75202209-202405

44785GASKET, BRAKE BOOSTER

main44785-02050iSXUA75202209-202405

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0R030iSXUA75202209-202405

89420HSENSOR ASSY, VACUUM

main89421-71040iSXUA75202209-202405

89420KGROMMET, VACUUM SENSOR

main90016-AT003iSXUA75202209-202405

90178C0034

main90178-C0034

9017910065

main90179-10065

14 parts on this diagram · 1 diagram in section
