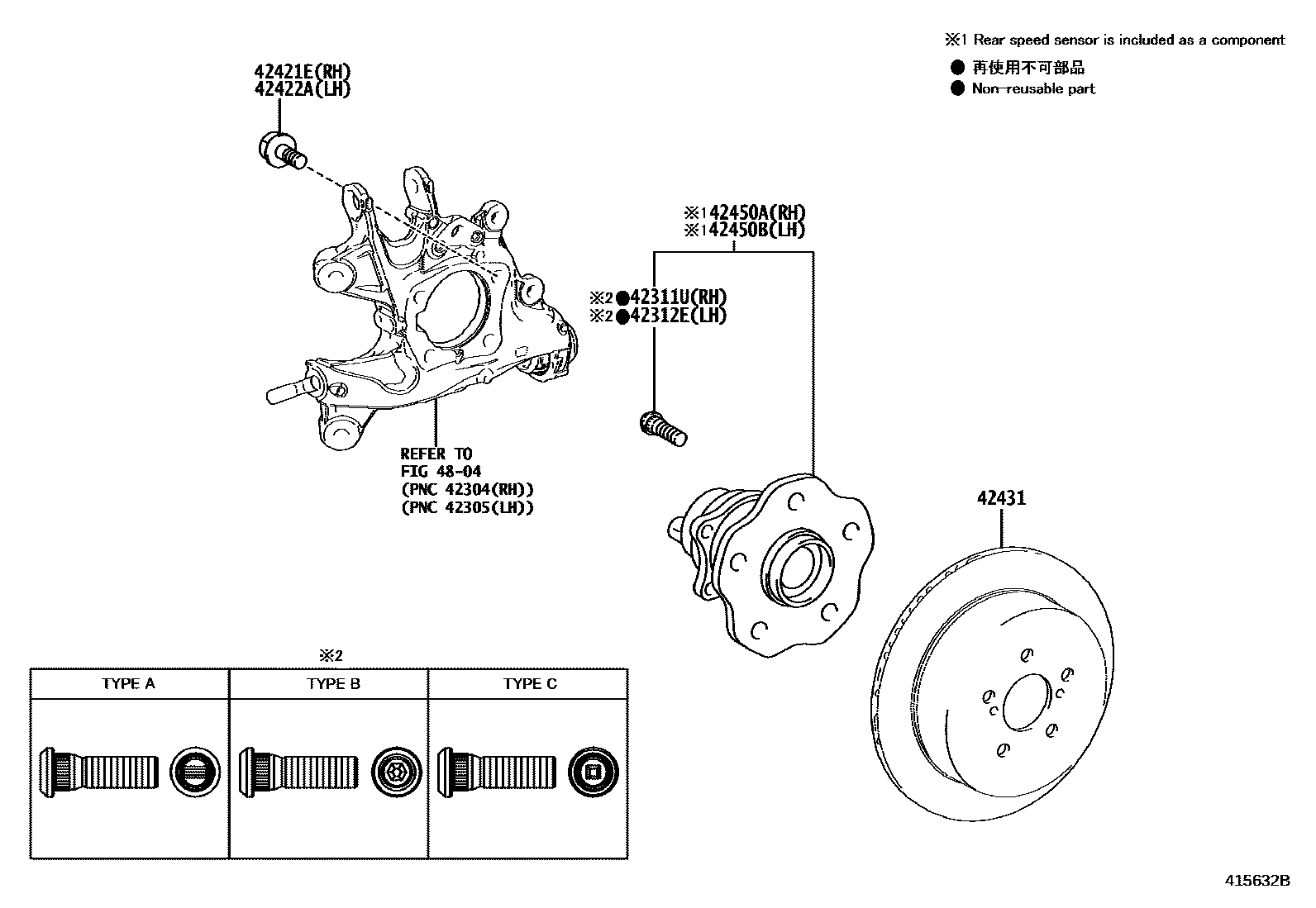

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1PNC 42330,42340B = TYPE A 0005 1PNC 42330,42340B = TYPE B 0006 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAXUH7#,SXUA75¥240202108-202405

TYPE A:REFER ILLUST.

main90942-02081iAXUH7#,SXUA75¥240202108-202405

TYPE B:REFER ILLUST.

main90942-02082iAXUH7#,SXUA75¥240202108-202405

TYPE C:REFER ILLUST.

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAXUH7#,SXUA75¥240202108-202405

TYPE A:REFER ILLUST.

main90942-02081iAXUH7#,SXUA75¥240202108-202405

TYPE B:REFER ILLUST.

main90942-02082iAXUH7#,SXUA75¥240202108-202405

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-C0402iAXUH7#,SXUA75202108-202405

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-C0402iAXUH7#,SXUA75202108-202405

42431DISC, REAR

main42431-0E090iAXUH7#,SXUA75202108-202405

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E060iAXUH79,SXUA75202108-202405

main42450-0E060iAXUH71202108-202405

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E060iAXUH79,SXUA75202108-202405

main42450-0E060iAXUH71202108-202405

4804

8 parts on this diagram · 6 diagrams in section
