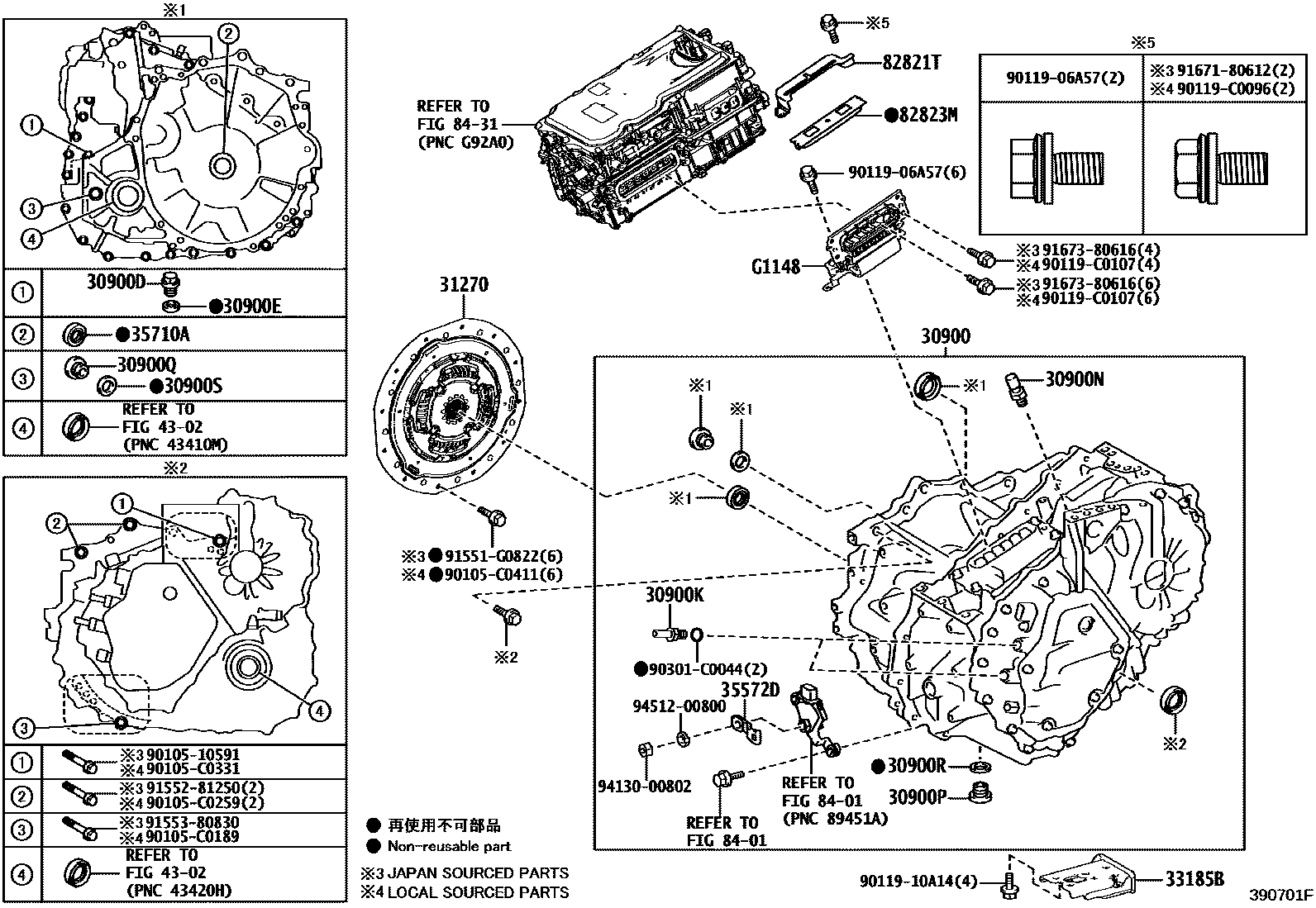

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
(J)
(L)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
(J)
(L)
30900SGASKET, FILLER PLUG(HEV)
(J)
(L)
33185BBRACKET, TRANSAXLE UNDER STOPPER
35572DLEVER, TRANSMISSION CONTROL SHAFT
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
4302
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8401
8431
G1148CABLE, MOTOR
9010510591
main90105-10591
90105C0189
main90105-C0189
90105C0259
main90105-C0259
90105C0331
main90105-C0331
90105C0411
main90105-C0411
9011906A57
main90119-06A57
9011910A14
main90119-10A14
90119C0096
main90119-C0096
90119C0107
main90119-C0107
90301C0044
main90301-C0044
91551G0822
main91551-G0822
9155281250
main91552-81250
9155380830
main91553-80830
9167180612
main91671-80612
9167380616
main91673-80616
9413000802
main94130-00802
9451200800
main94512-00800
36 parts on this diagram · 2 diagrams in section
