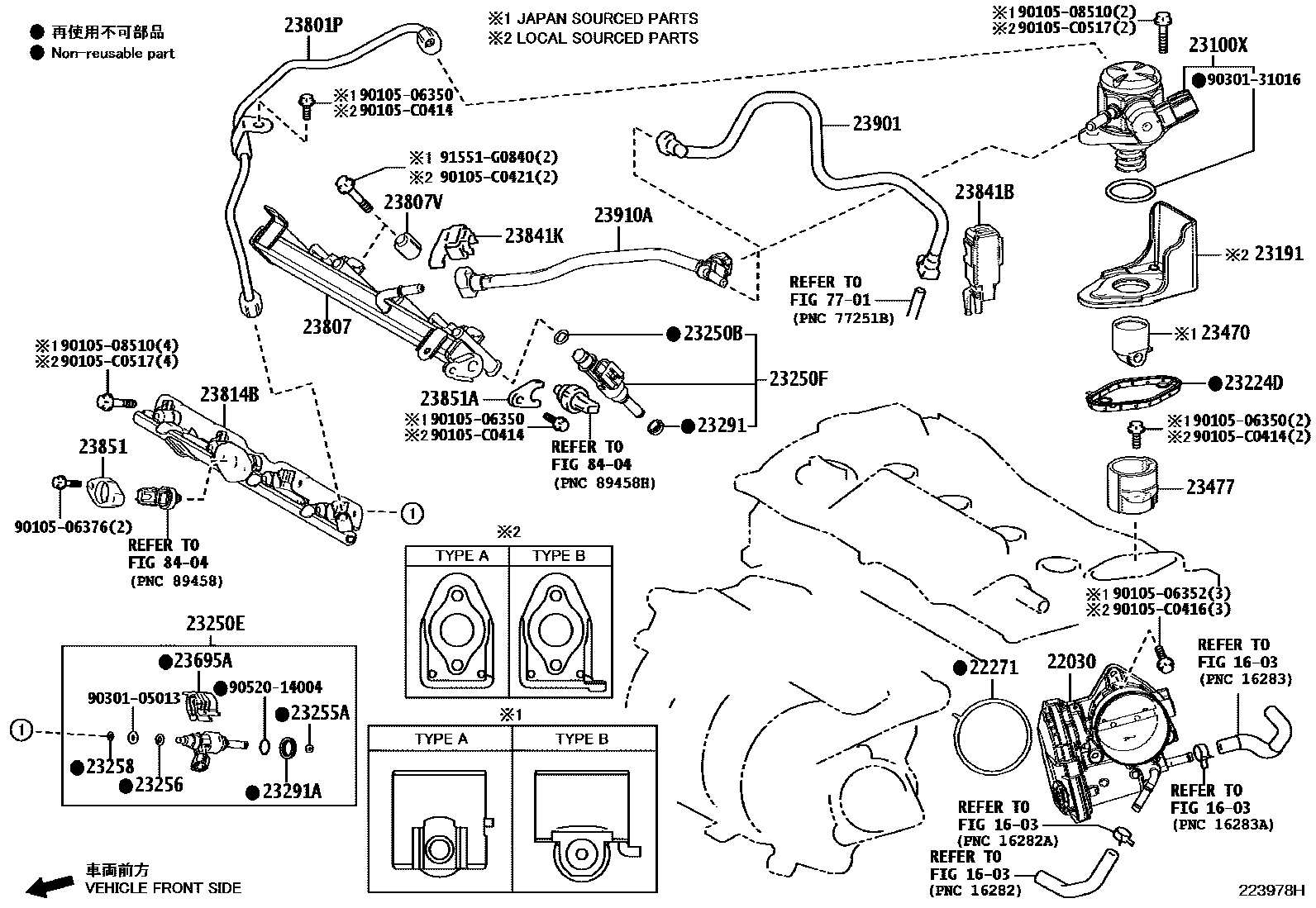

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(J)
(L)
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
TYPE B:REFER ILLUST.
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
(L)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
(J)
(L)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
(J)
(L)
7701
8404
9010506350
main90105-06350
9010506352
main90105-06352
9010506376
main90105-06376
9010508510
main90105-08510
90105C0414
main90105-C0414
90105C0416
main90105-C0416
90105C0421
main90105-C0421
90105C0517
main90105-C0517
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
91551G0840
main91551-G0840
41 parts on this diagram · 2 diagrams in section
